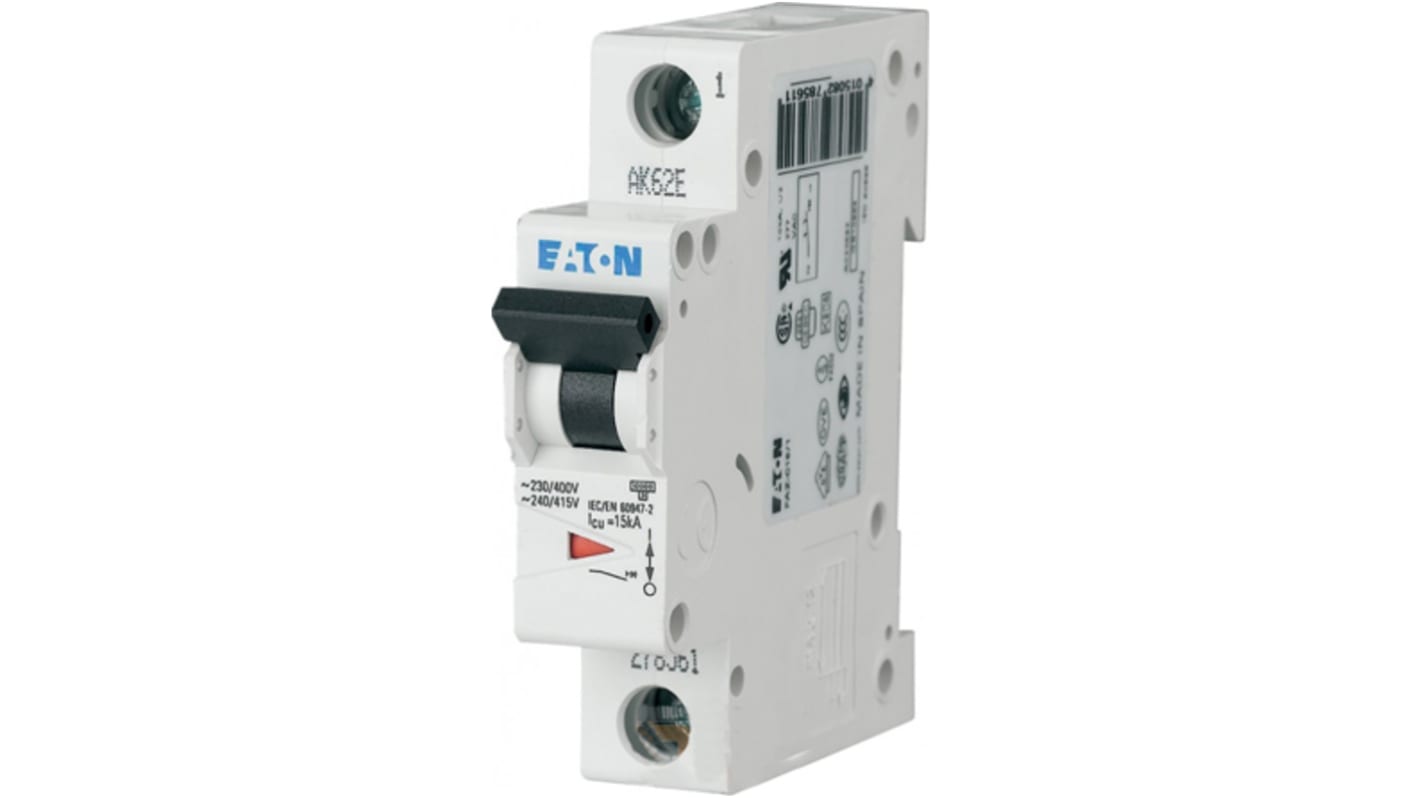

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 30 A, Type C, 415 V ac AC, 48 V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£36.87

(exc. VAT)

£44.24

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 12 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£36.87

*price indicative

RS Stock No.:
922-6911
Mfr. Part No.:
102093 FAZ-C30/1-NA
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Number of Poles

1

Product Type

Miniature Circuit Breaker

Current Rating

30 A

Tripping Characteristics

Type C

Rated AC Voltage

415 V ac

Rated DC Voltage

48 V

Mount Type

DIN Rail

Breaking Capacity

10kA

Range

xEffect

Series

FAZ

Terminal Type

Screw

IP Rating

IP20

Depth

80mm

Height

80mm

Standards/Approvals

No

Width

66 mm

Reset Actuator Type

Toggle Switch

Break Time

Instantaneous

Tripping Mechanism

Thermal Magnetic

Eaton MCB, 30A Current Rating, Type C Tripping Characteristics - 102093 FAZ-C30/1-NA


This MCB is a single-pole circuit breaker designed for enhanced electrical safety. With a current rating of 30A, it seamlessly integrates into DIN rail installations, measuring 17.7mm in width and 105mm in length. The unit exhibits instantaneous tripping for reliable overload and short circuit protection, making it a vital component in modern electrical systems.

Features & Benefits


• Type C characteristics offer protection against high inrush currents

• Operates effectively at a rated AC voltage range of 277 to 480V

• Breaking capacity of 10 kA ensures effective fault clearing

• Thermal-magnetic mechanism enhances operational reliability

• Toggle switch reset actuator simplifies user interaction

• Screw terminal contacts provide secure and efficient wiring

Applications


• Used for industrial circuit protection in electrical panel boards

• Ideal for automation requiring high reliability

• Utilised in commercial properties for electrical safety devices

• Suitable for residential installations ensuring effective circuit protection

What benefits does the thermal-magnetic tripping mechanism provide?


The thermal-magnetic tripping mechanism enables fast response to overload conditions while allowing for safe operation during normal surges. This dual functionality helps prevent nuisance tripping while providing robust protection.

How does the breaking capacity affect overall safety?


A breaking capacity of 10 kA allows the device to safely interrupt fault currents, preventing potential damage to the electrical installation. It plays a crucial role in safeguarding both equipment and personnel.

What installation considerations should be kept in mind with this MCB?


Ensure compatibility with the existing electrical system voltage ratings. Proper DIN rail mounting should be adhered to, maintaining accessibility for future maintenance. Adequate circuit design is necessary to leverage the full capabilities of this circuit breaker.

Note

Eaton formerly known as Moeller
