- RS Stock No.:
- 847-3289
- Mfr. Part No.:
- 102250 FAZ-C16/3-NA
- Brand:
- Eaton
14 In stock - FREE next working day delivery available
Added
Price Each
£111.92
(exc. VAT)
£134.30
(inc. VAT)
Units | Per unit |
1 + | £111.92 |
- RS Stock No.:
- 847-3289
- Mfr. Part No.:
- 102250 FAZ-C16/3-NA
- Brand:
- Eaton
Legislation and Compliance
Product Details

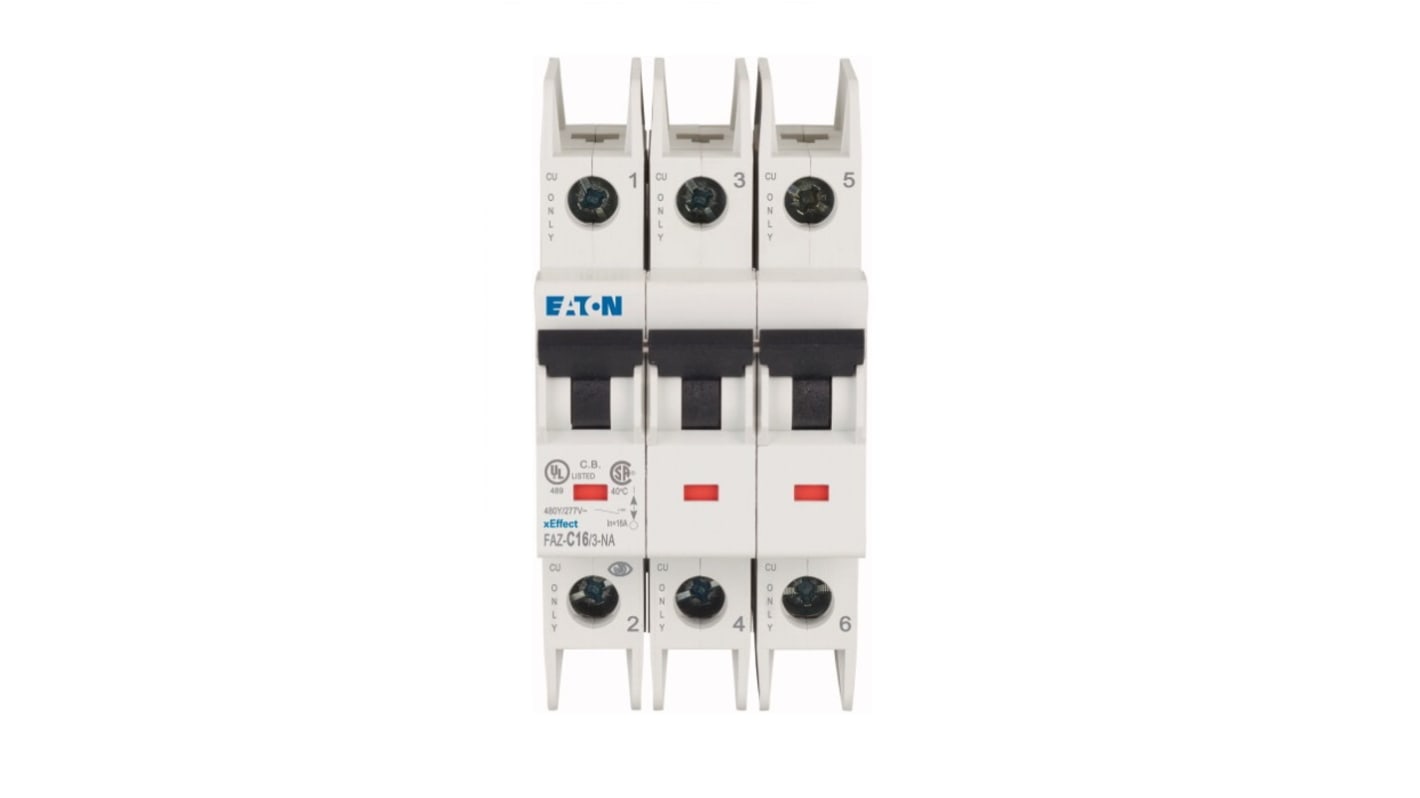

Eaton MCB, 16A Current Rating, C Curve - xEffect Series - 102250FAZ-C16/3-NA
When you need to protect large inductive loads with high switching surges, choose this MCB from Eaton. It instantly trips short circuits and current overloads to help prevent damage to equipment. The device also improves workforce safety by reducing the risk of shocks caused by electrical faults. It's resistant to corrosion and impact and has a broad operating temperature range of -40°C to +75°C, so you can use it in harsh industrial environments. This C curve breaker is suitable for branch circuit protection of internal and external devices, such as motors, fridges and HVAC systems.
Features & Benefits
• For safety, the breaker can't be over-ridden by holding its handle in the ON position
• Easy to snap onto a DIN rail for quick and convenient installation and removal
• Includes captive screws that stay attached, so there's less risk of them being lost
• High-capacity option, as it trips at 5 to 10 times its rated current of 16A
• Easy to snap onto a DIN rail for quick and convenient installation and removal
• Includes captive screws that stay attached, so there's less risk of them being lost
• High-capacity option, as it trips at 5 to 10 times its rated current of 16A
Is this a current-limiting MCB?
Yes, this MCB is a current-limiting device, which means it reduces peak let-through current and energy.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Current Rating | 16A |
Tripping Characteristics | Type C |
Rated AC Voltage | 240 → 415V |
Rated DC Voltage | 60V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | xEffect |
Circuit Breaker Type | MCB |
Length | 53.1mm |
Width | 105mm |
Mounting Style | DIN Rail Mount |
Depth | 76mm |
