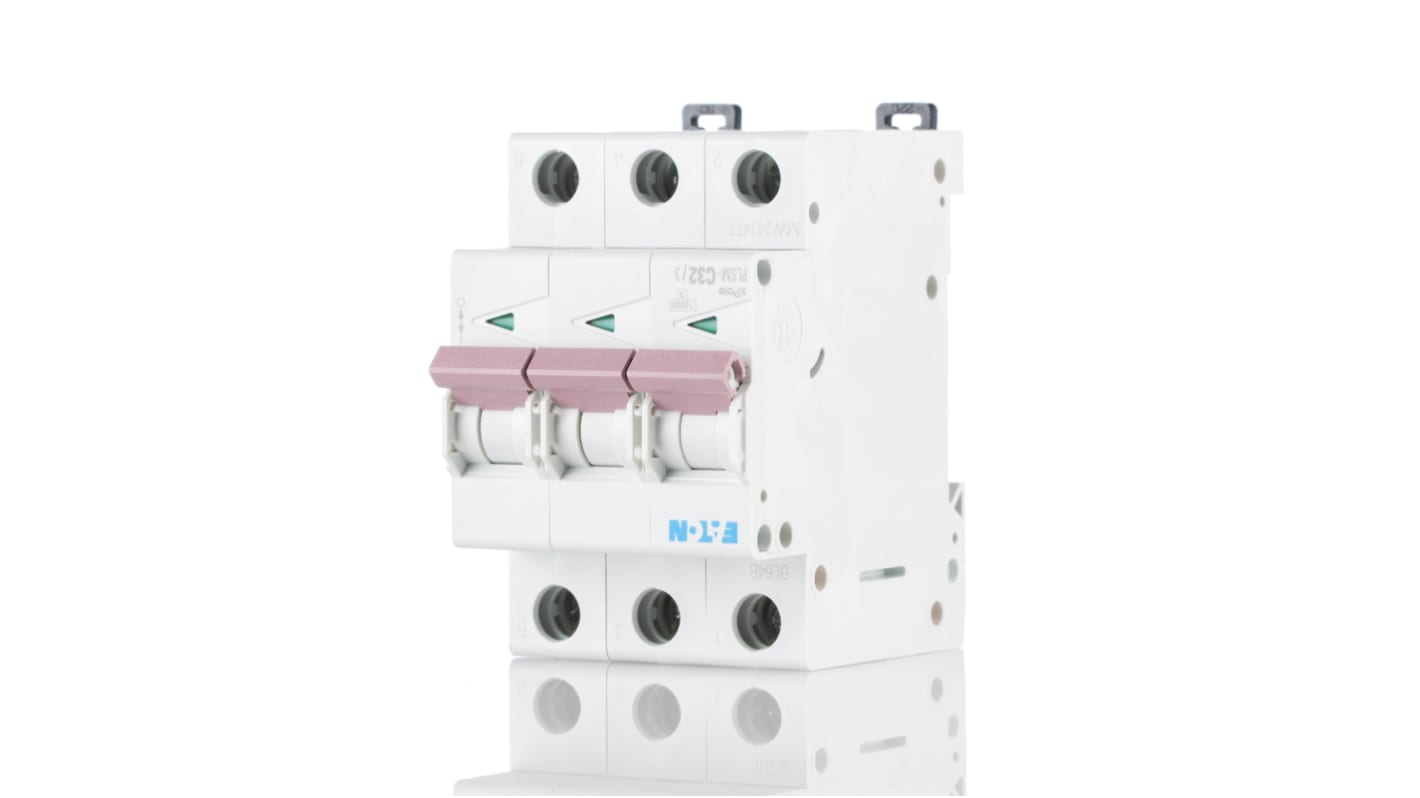

Eaton xPole MCB, 3P, 32A Curve C, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 864-4409
- Mfr. Part No.:
- 242477 PLSM-C32/3-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£85.23
(exc. VAT)
£102.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 7 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £85.23 |
*price indicative
- RS Stock No.:
- 864-4409
- Mfr. Part No.:
- 242477 PLSM-C32/3-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 32A | |
Tripping Characteristics | Type C | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xPole | |
Circuit Breaker Type | MCB | |
Length | 52.5mm | |
Width | 80mm | |
Mounting Style | DIN Rail Mount | |
Depth | 75mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 32A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xPole | ||
Circuit Breaker Type MCB | ||
Length 52.5mm | ||
Width 80mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
RoHS Status: Not Applicable
PLSM MW Series, C Characteristic, 3 Pole
Versatile, safe and high-quality miniature circuit breakers for commercial and residential applications
Contact position indicator red - green
Guide for secure terminal connection
3-position DIN rail clip, permits removal from existing busbar system
Rated currents up to 63 A
Rated breaking capacity 10 kA according to IEC/EN 60898-1
Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation
Guide for secure terminal connection
3-position DIN rail clip, permits removal from existing busbar system
Rated currents up to 63 A
Rated breaking capacity 10 kA according to IEC/EN 60898-1
Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation
Eaton MCB, 32A Current Rating, 48V DC Voltage Rating - PLSM Series - 242477 PLSM-C32/3-MW
Looking for a compact circuit-protection solution for your industrial equipment? Choose this mini circuit breaker from Eaton. With dimensions of 52.5 (L) x 80 (W) x 75mm (D), this unit is a good choice for setups with limited space. It has a thermoplastic body that provides impact resistance as well as insulation to protect you from electric shock. The breaker exhibits type C characteristics, which means that it trips when the supply current is five to 10 times the full load current of the circuit. This feature makes it useful for commercial and industrial applications such as fluorescent lighting and light-duty industrial motors.
• Broad operating temperature range of -25°C to +75°C for use in demanding conditions
• 400V rated voltage to suit low-voltage applications
• Rated impulse withstand voltage of 4kV to handle sudden power surges and improve electrical safety
• IP20 rating indicates that it's touch-proof and can withstand tools and objects greater than 12mm in size
• 400V rated voltage to suit low-voltage applications
• Rated impulse withstand voltage of 4kV to handle sudden power surges and improve electrical safety
• IP20 rating indicates that it's touch-proof and can withstand tools and objects greater than 12mm in size
What type of conductors can I connect to this MCB's terminals?
This MCB allows for the connection of both multi-wired and solid-core conductors. It can accommodate adapters with a cross-sectional area range of 1 to 25mm² for versatility.
Note
Eaton formerly known as Moeller
Moeller — circuit breaker
