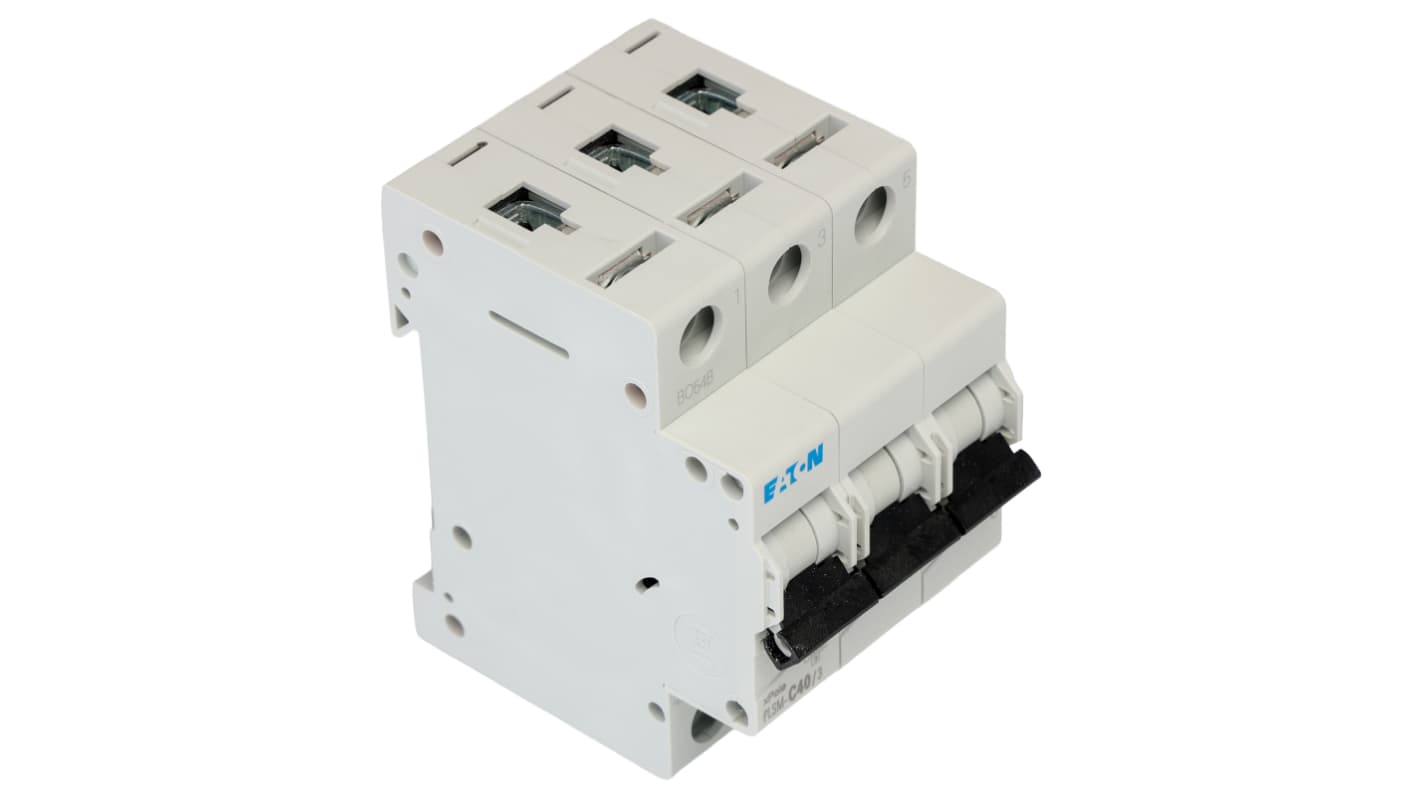

Eaton xPole MCB, 3P, 40A Curve C, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 864-4403
- Mfr. Part No.:
- 242478 PLSM-C40/3-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£91.80
(exc. VAT)
£110.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £91.80 |
*price indicative
- RS Stock No.:
- 864-4403
- Mfr. Part No.:
- 242478 PLSM-C40/3-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 40A | |
Tripping Characteristics | Type C | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xPole | |
Circuit Breaker Type | MCB | |
Width | 80mm | |
Length | 52.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 75mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 40A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xPole | ||
Circuit Breaker Type MCB | ||
Width 80mm | ||
Length 52.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
RoHS Status: Not Applicable
Eaton MCB, 40A Current Rating, 3 Poles - 242478 PLSM-C40/3-MW
This MCB serves as a vital device for electrical circuit protection within various applications. Designed to operate at a current rating of 40A, it features three poles, making it a robust choice for managing multiple circuits. With a rated AC voltage of 400V and a rated DC voltage of 48V, it is suitable for diverse environments. Its compact dimensions of 52.5mm width and 80mm length enable easy installation in confined spaces, ensuring efficient use of available room on a DIN rail.
Features & Benefits
• Type C circuit breaker efficiently handles inductive loads
• Designed with a breaking capacity of 10 kA ensuring reliability
• Toggle switch reset mechanism allows for easy operation
• Robust construction suitable for industrial and commercial use
• Excellent thermal stability for improved performance
• DIN rail mounted format streamlines assembly and installation
• Designed with a breaking capacity of 10 kA ensuring reliability
• Toggle switch reset mechanism allows for easy operation
• Robust construction suitable for industrial and commercial use
• Excellent thermal stability for improved performance
• DIN rail mounted format streamlines assembly and installation
Applications
• Utilised for electrical circuit protection in industrial systems
• Suitable for automation control panels and machinery
• Effective in commercial environments demanding high load management
• Compatible with various electrical configurations requiring 3 pole support
• Suitable for automation control panels and machinery
• Effective in commercial environments demanding high load management
• Compatible with various electrical configurations requiring 3 pole support
What is the importance of the Type C characteristic in this breaker?
The Type C characteristic provides a tripping mechanism suited for circuits with moderate inrush currents, such as small motors and transformers, ensuring safe operation without nuisance tripping.
How does the breaking capacity affect safety in installations?
A breaking capacity of 10 kA indicates the ability to interrupt currents caused by faults safely, reducing the risk of fire or damage to equipment, thus enhancing overall system safety.
What makes the toggle switch reset feature preferred for users?
The toggle switch reset simplifies re-engagement after a trip, allowing users to quickly restore power without complex reconfiguration, which is essential in fast-paced environments.
Note
Eaton formerly known as Moeller
Moeller — circuit breaker
