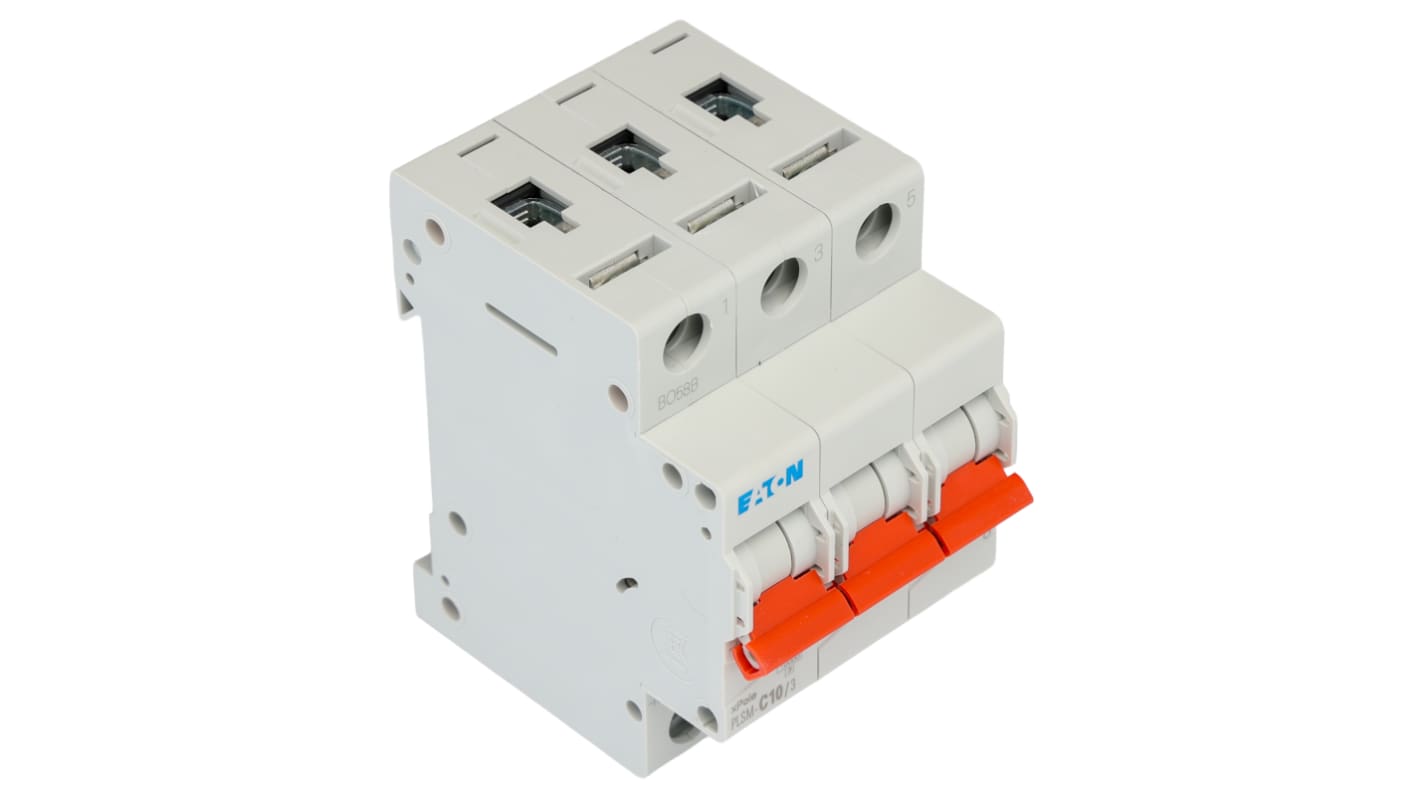

Eaton xPole MCB, 3P, 10A Curve C, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 864-4392
- Mfr. Part No.:
- 242470 PLSM-C10/3-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£85.23
(exc. VAT)
£102.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £85.23 |
*price indicative
- RS Stock No.:
- 864-4392
- Mfr. Part No.:
- 242470 PLSM-C10/3-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 10A | |
Tripping Characteristics | Type C | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xPole | |
Circuit Breaker Type | MCB | |
Length | 52.5mm | |
Width | 80mm | |
Mounting Style | DIN Rail Mount | |
Depth | 75mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xPole | ||
Circuit Breaker Type MCB | ||
Length 52.5mm | ||
Width 80mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
RoHS Status: Not Applicable
Eaton MCB, 10A Current Rating, 3 Poles - 242470 PLSM-C10/3-MW
This MCB is a type C, 3-pole circuit breaker designed to offer reliable electrical circuit protection. With a current rating of 10A and a rated AC voltage of 400V, it is suitable for various electrical applications. Its compact dimensions of 52.5mm in width and 80mm in both length and depth facilitate easy installation on a DIN rail.
Features & Benefits
• Efficient Type C circuit breaker suited for inductive loads
• Breaking capacity of 10 kA for high fault current scenarios
• Supports a rated DC voltage of 48V for versatility
• Toggle switch actuator ensures user-friendly operation
• Ideal for low voltage circuit protection in industrial settings
• Compact DIN rail MCB design simplifies wiring and installation
• Breaking capacity of 10 kA for high fault current scenarios
• Supports a rated DC voltage of 48V for versatility
• Toggle switch actuator ensures user-friendly operation
• Ideal for low voltage circuit protection in industrial settings
• Compact DIN rail MCB design simplifies wiring and installation
Applications
• Used with commercial electrical distribution boards
• Ideal for industrial machines requiring robust circuit protection
• Suited for automation systems in manufacturing environments
• Employed in residential electrical installations for safety
• Ideal for industrial machines requiring robust circuit protection
• Suited for automation systems in manufacturing environments
• Employed in residential electrical installations for safety
What advantages does the toggle switch actuator provide during operation?
The toggle switch actuator allows for quick and easy manual control of the circuit breaker, facilitating simple reset operations and providing clear visibility of the switch status.
How does the breaking capacity affect the performance of this circuit breaker?
With a breaking capacity of 10 kA, it can effectively interrupt high fault currents, reducing the risk of equipment damage and enhancing system safety in case of electrical malfunctions.
In what scenarios is a Type C circuit breaker most beneficial?
A Type C circuit breaker is advantageous in situations where there are significant inrush currents, such as with motors or transformers, as it can handle transient spikes without nuisance tripping.
Note
Eaton formerly known as Moeller
Moeller — circuit breaker
