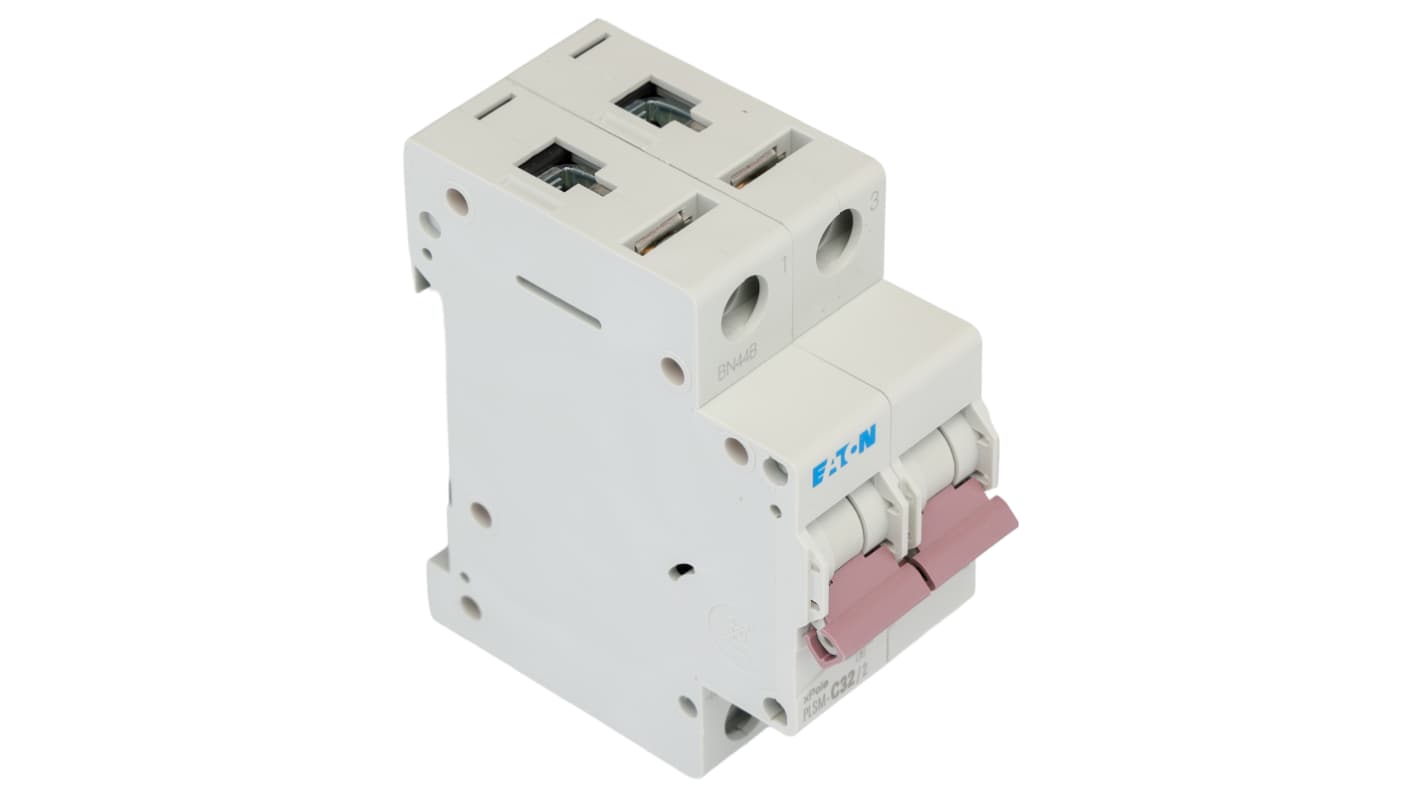

Eaton xPole MCB, 2P, 32A Curve C, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 864-4364
- Mfr. Part No.:
- 242408 PLSM-C32/2-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£61.26
(exc. VAT)
£73.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £61.26 |
*price indicative
- RS Stock No.:
- 864-4364
- Mfr. Part No.:
- 242408 PLSM-C32/2-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 2 | |
Current Rating | 32A | |
Tripping Characteristics | Type C | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xPole | |
Circuit Breaker Type | MCB | |
Width | 80mm | |
Length | 35mm | |
Mounting Style | DIN Rail Mount | |
Depth | 75mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 2 | ||
Current Rating 32A | ||
Tripping Characteristics Type C | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xPole | ||
Circuit Breaker Type MCB | ||
Width 80mm | ||
Length 35mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
RoHS Status: Not Applicable
Eaton MCB, 32A Current Rating, Type C Tripping Characteristics - 242408 PLSM-C32/2-MW
This MCB falls under the Eaton xPole category and is specifically designed for electrical circuit protection. With a current rating of 32A and a compact width of 35mm, it provides robust performance in both residential and industrial settings. It operates effectively at rated AC voltages of 400V and rated DC voltages of 48V, ensuring versatile applicability for various circuits.
Features & Benefits
• Type C tripping characteristics reduce nuisance tripping
• 10 kA breaking capacity effectively handles overcurrents
• Suitable for DIN rail mounting facilitates easy installation
• Toggle switch reset mechanism allows quick reset after tripping
• Compact design maximises space efficiency in electrical panels
• Compliance with electrical standards enhances safety in use
• 10 kA breaking capacity effectively handles overcurrents
• Suitable for DIN rail mounting facilitates easy installation
• Toggle switch reset mechanism allows quick reset after tripping
• Compact design maximises space efficiency in electrical panels
• Compliance with electrical standards enhances safety in use
Applications
• Ideal for protecting motors and inductive loads in industrial
• Suitable for residential distribution boards to safeguard household circuits
• Used with automation systems requiring reliable circuit protection
• Effective in commercial electrical systems to maintain operational integrity
• Applicable in lighting and power distribution across a range of environments
• Suitable for residential distribution boards to safeguard household circuits
• Used with automation systems requiring reliable circuit protection
• Effective in commercial electrical systems to maintain operational integrity
• Applicable in lighting and power distribution across a range of environments
What is the significance of the Type C tripping characteristics?
Type C tripping characteristics are designed to allow higher inrush currents that are common with motors and transformers, preventing unnecessary tripping while still ensuring safety during fault conditions.
How does the breaking capacity affect the circuit protection?
The 10 kA breaking capacity ensures that the circuit breaker can safely interrupt high fault currents without damage, providing reliable protection against severe electrical faults and enhancing overall system safety.
Can this device be easily integrated into existing electrical systems?
Yes, the DIN rail mount design allows for straightforward integration into existing setups, making it a practical choice for upgrading and maintaining electrical safety in established systems.
What makes this circuit breaker suitable for industrial environments?
Its robust design and high breaking capacity make it well-suited for industrial applications, where heavy machinery and fluctuating loads are common, ensuring continuous protection under varying conditions.
What type of loads is this MCB particularly suitable for?
This MCB is particularly effective for managing inductive loads such as motors, ensuring stable operation while protecting against overloads and short circuits in various applications.
Note
Eaton formerly known as Moeller
Moeller — circuit breaker
