Allen Bradley 3-Pole Panel Isolator Switch -, IP66, 100A, 45 kW
- RS Stock No.:
- 261-8423
- Distrelec Article No.:
- 302-27-398
- Mfr. Part No.:
- 194E-Y100-1753-6N
- Brand:
- Allen Bradley

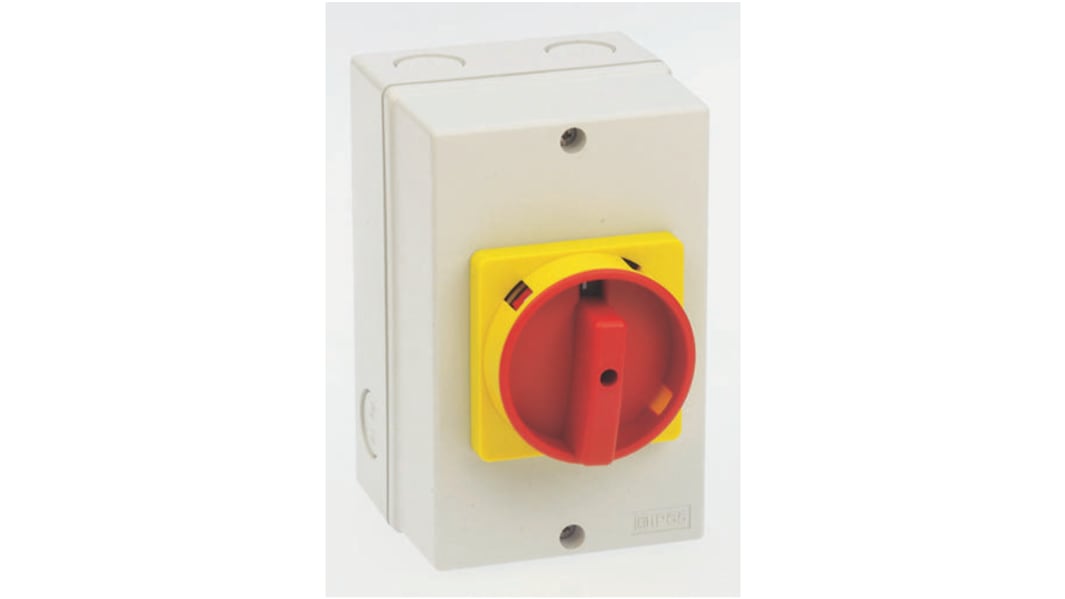

Image representative of range
Subtotal (1 unit)*
£116.15
(exc. VAT)
£139.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £116.15 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£110.68
(exc. VAT)
£132.82
(inc. VAT)
- RS Stock No.:
- 261-8423
- Distrelec Article No.:
- 302-27-398
- Mfr. Part No.:
- 194E-Y100-1753-6N
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Panel | |
| IP Rating | IP66 | |
| Electrical Phase | 3 | |
| Handle Colour | Yellow, Red, Grey, Black | |
| Terminal Type | Wire | |
| Switching Current | 100A | |
| Series | 194E | |
| Auxiliary Contacts Available | No | |
| Switching AC Voltage | 440V ac | |
| Minimum Operating Temperature | -25°C | |
| Padlock Compatibility | Yes | |
| Switching Power | 45kW | |
| Maximum Operating Temperature | 60°C | |
| Length | 230mm | |
| Depth | 120mm | |
| Width | 175mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL, CSA, CE | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Panel | ||
IP Rating IP66 | ||
Electrical Phase 3 | ||
Handle Colour Yellow, Red, Grey, Black | ||
Terminal Type Wire | ||
Switching Current 100A | ||
Series 194E | ||
Auxiliary Contacts Available No | ||
Switching AC Voltage 440V ac | ||
Minimum Operating Temperature -25°C | ||
Padlock Compatibility Yes | ||
Switching Power 45kW | ||
Maximum Operating Temperature 60°C | ||
Length 230mm | ||
Depth 120mm | ||
Width 175mm | ||
Hazardous Area Certification No | ||
Standards/Approvals UL, CSA, CE | ||
RoHS Status: Exempt
Allen Bradley Enclosed Switch Disconnectors
These disconnectors feature durable ABS thermoplastic enclosures. The cover is interlocked to prevent removal when live, reducing risk of electric shock. The handle can be padlocked in up to three positions in the OFF position for greater protection and security. They also have an earth connection in the base of the enclosure.
Standards: IEC 947, VDE 0660
Approvals: UL, CSA
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
