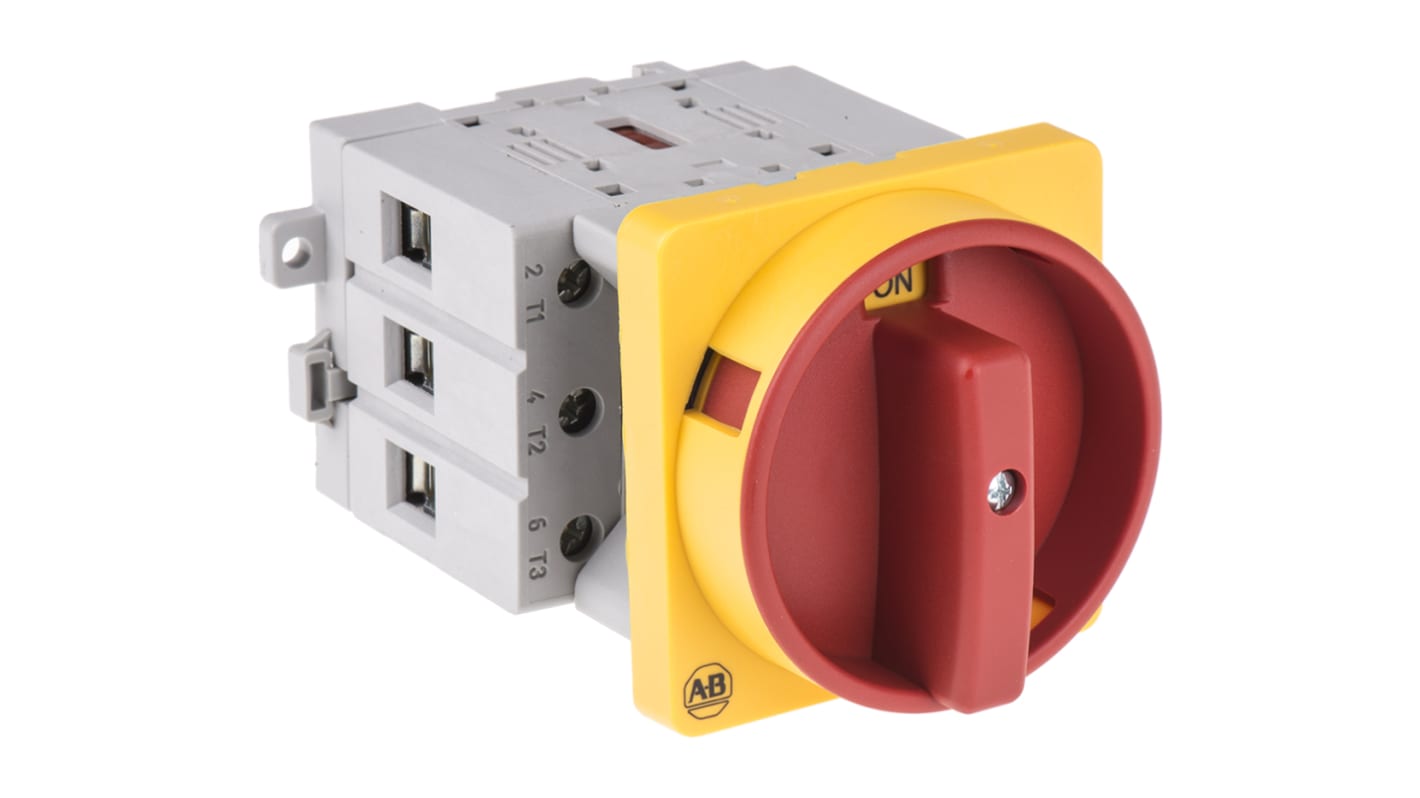

Allen Bradley 3-Pole Panel Isolator Switch -, IP66, 40A, 18.5 kW
- RS Stock No.:
- 261-7868
- Distrelec Article No.:
- 302-27-383
- Mfr. Part No.:
- 194E-A40-1753-6N
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£42.83
(exc. VAT)
£51.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 27 April 2026
- Plus 6 unit(s) shipping from 27 April 2026
- Plus 15 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.83 |
*price indicative
- RS Stock No.:
- 261-7868
- Distrelec Article No.:
- 302-27-383
- Mfr. Part No.:
- 194E-A40-1753-6N
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Panel | |
| IP Rating | IP66 | |
| Electrical Phase | 3 | |
| Handle Colour | Yellow, Red, Grey, Black | |
| Series | 194E | |
| Switching Current | 40A | |
| Auxiliary Contacts Available | No | |
| Terminal Type | Wire | |
| Switching Power | 18.5kW | |
| Switching AC Voltage | 440V ac | |
| Padlock Compatibility | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | NO | |
| Length | 80mm | |
| Width | 54mm | |
| Standards/Approvals | CSA, CE, UL | |
| Depth | 73mm | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Panel | ||
IP Rating IP66 | ||
Electrical Phase 3 | ||
Handle Colour Yellow, Red, Grey, Black | ||
Series 194E | ||
Switching Current 40A | ||
Auxiliary Contacts Available No | ||
Terminal Type Wire | ||
Switching Power 18.5kW | ||
Switching AC Voltage 440V ac | ||
Padlock Compatibility Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification NO | ||
Length 80mm | ||
Width 54mm | ||
Standards/Approvals CSA, CE, UL | ||
Depth 73mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL
Allen Bradley Switch Disconnectors (Base Mounting)
These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
