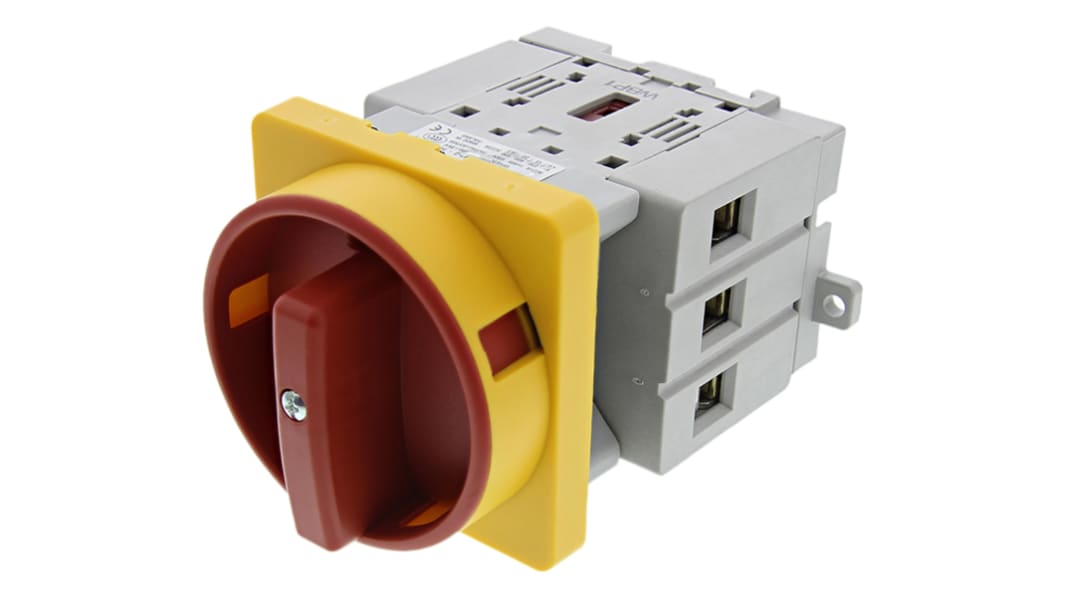

    Allen Bradley 3P Pole Panel Mount Isolator Switch - 40A Maximum Current, 18.5kW Power Rating, IP66

    RS Stock No.:
    261-7571
    Mfr. Part No.:
    194E-E40-1753-6N
    Brand:
    Allen Bradley
    Allen Bradley
    View all Isolator Switches
    29 In stock - FREE next working day delivery available
    2 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £32.90

    (exc. VAT)

    £39.48

    (inc. VAT)

    UnitsPer unit
    1 +£32.90
    RS Stock No.:
    261-7571
    Mfr. Part No.:
    194E-E40-1753-6N
    Brand:
    Allen Bradley

    RoHS Status: Not Applicable

    COO (Country of Origin):
    IT

    Legislation and Compliance

    RoHS Status: Not Applicable

    COO (Country of Origin):
    IT

    Product Details

    Switch Disconnectors (Front Mounting)


    These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL,CSA approved. A full range of accessories is available.

    Manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos

    Note

    Refer to product description AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.

    Allen Bradley Panel Mount Non-Fused Isolator Switch, 3 Pole, 18.5kW - 194E-E40-1753-6N


    This panel-mount non-fused isolator from Rockwell Automation's Allen Bradley range connects to your power distribution, load isolation and motor start/stop systems. Instead of a fuse, it uses the rotation of the rotary lever and locking ring to isolate the circuit. You can use this device while a circuit is still operating, so maintenance and checks can be carried out safely. Non-fused isolator switches are commonly used with circuit breakers and transmission lines, as well as transformers, industrial automation and control settings.

    Features and Benefits


    • IP65 (ingress protection) prevents interference caused by dust and low-pressure water jets
    • Screw terminals on either side for easy installation
    • Three spaces for padlocks to keep the switch secure
    • IP20 finger-proof switch eliminates risk of electrocution

    Standards and Certifications


    • VDE (Verband der Elektrotechnik)
    • IEC (International Electrotechnical Commission)
    • UL (Underwriters' Laboratories)
    • CSA (Canadian Standards Association)

    Is this switch safe to use in high-temperature environments?


    The switch is made from thermo-resistant materials to protect it from damage. To enhance the product’s safety, the materials are self-extinguishing if a fire does break out. A maximum operating temperature of +60°C ensures it the switch remains in working order even when exposed to extreme heat.


    Allen Bradley MCS Range


    The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

    Specifications

    AttributeValue
    Number of Poles3P
    Maximum Current40A
    Mounting TypePanel Mount
    IP RatingIP66
    Power Rating18.5kW
    Voltage Rating690V ac
    Electrical Phase3
    Handle ColourBlack/Grey, Red/Yellow
    Accepts PadlocksYes
    Switch Rating20kA
    Length108mm
    Width54mm
    Depth74mm
    Maximum Operating Temperature+60°C
    Minimum Operating Temperature-25°C
    Terminal TypeWire Lead
