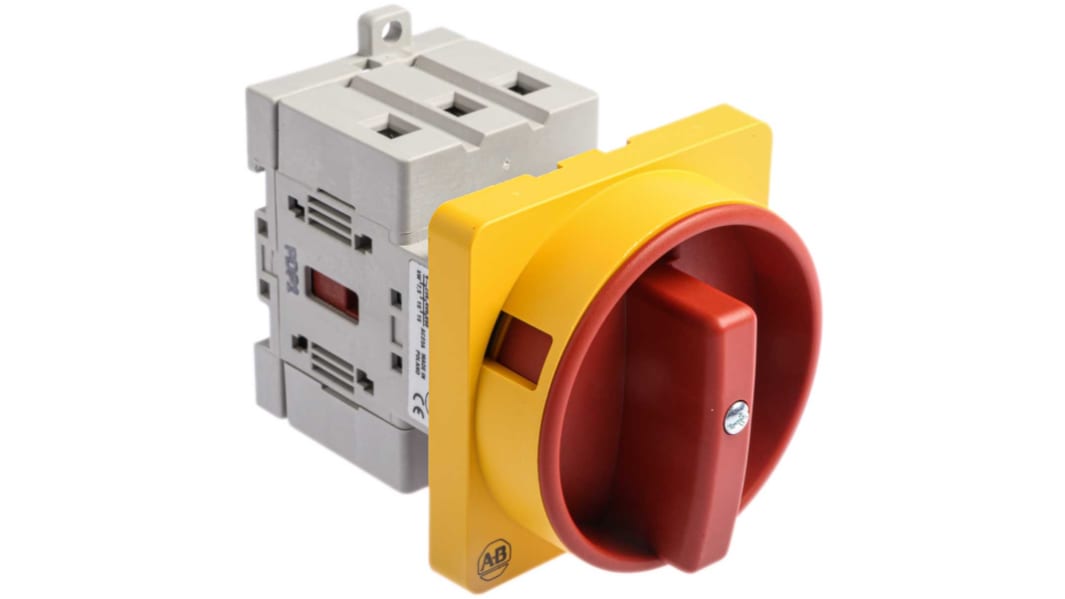

Allen Bradley 3P Pole Panel Mount Isolator Switch - 25A Maximum Current, 11kW Power Rating, IP66
- RS Stock No.:
- 261-7559
- Mfr. Part No.:
- 194E-E25-1753-6N
- Brand:
- Allen Bradley
View all Isolator Switches
2 In stock for delivery within 1 working days
Price Each
£26.95
(exc. VAT)
£32.34
(inc. VAT)
| Units | Per unit |
| 1 + | £26.95 |
- RS Stock No.:
- 261-7559
- Mfr. Part No.:
- 194E-E25-1753-6N
- Brand:
- Allen Bradley
RoHS Status: Not Applicable
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Switch Disconnectors (Front Mounting)
These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL,CSA approved. A full range of accessories is available.
Manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos
Note
Refer to product description AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
Specifications
| Attribute | Value |
| Number of Poles | 3P |
| Maximum Current | 25A |
| Mounting Type | Panel Mount |
| IP Rating | IP66 |
| Power Rating | 11kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Accepts Padlocks | Yes |
| Handle Colour | Black/Grey, Red/Yellow |
| Switch Rating | 20kA |
| Length | 90mm |
| Width | 45mm |
| Depth | 60mm |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Wire Lead |
| Minimum Operating Temperature | -25°C |
