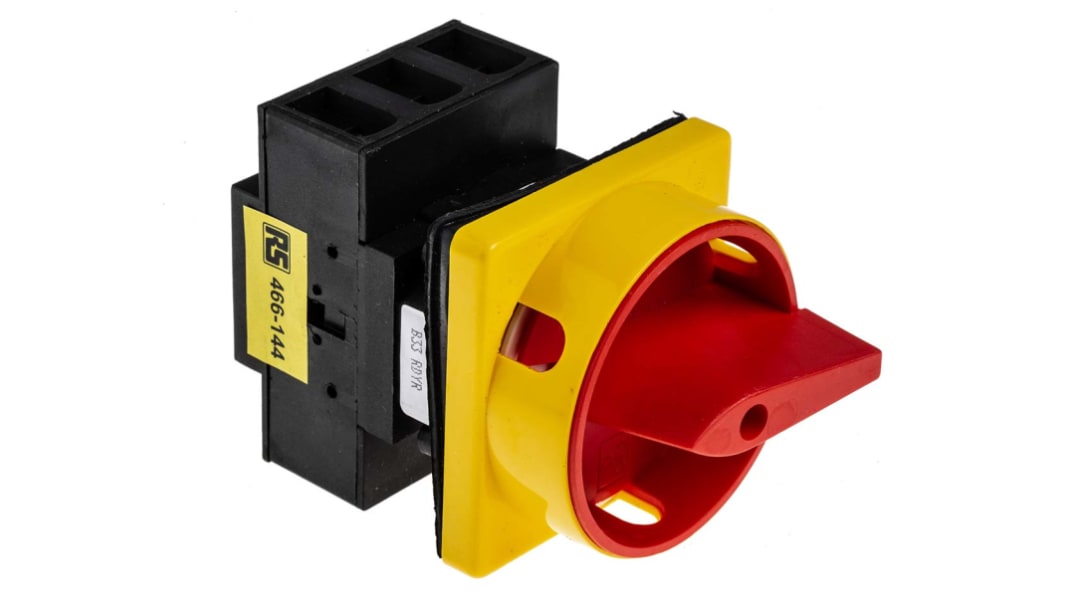

RS PRO 3P Pole Panel Mount Isolator Switch - 40A Maximum Current, 15kW Power Rating, IP65

View all Isolator Switches
Bulk discount available

Subtotal (1 unit)*

£24.78

(exc. VAT)

£29.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 459 unit(s) ready to ship
  • Plus 39 unit(s) ready to ship from another location
  • Plus 66 unit(s) shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£24.78
5 - 9£24.07
10 +£23.01

*price indicative

RS Stock No.:
466-144
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Poles

3P

Maximum Current

40A

Mounting Type

Panel Mount

IP Rating

IP65

Power Rating

15kW

Voltage Rating

750V

Electrical Phase

3

Accepts Padlocks

Yes

Handle Colour

Red

Switch Rating

6kV

Length

125mm

Width

100mm

Depth

70mm

Maximum Operating Temperature

+40°C

Terminal Type

Screw

Minimum Operating Temperature

-25°C

COO (Country of Origin):
IN

RS PRO Panel Mount (Padlockable)


This Panel Mount Non- fused isolator switch from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop.

Features and Benefits


• Easy installation
• Compact and reliable
• Finger protection
• Padlockable for added security
• Single hole for front mounting
• 90° switching angle
• Forced open contacts
• Terminal screws in open contacts
• All switch rating at AC22
• Maximum panel thickness 3mm
• Minimum depth behind panel 102mm
• Maximum depth behind panel 117mm
• Actuator dimensions 64x64x32mm
• IP65 product rating (protection from total dust ingress)

What is the difference between a fused switch disconnector and a non-fused switch disconnector?


Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

How does an isolator switch work?


This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL, CSA
