RS PRO 3-Pole Panel Mount Isolator Switch -, IP65, 63A, 90 kW

View all Isolator Switches

Subtotal (1 unit)*

£241.72

(exc. VAT)

£290.06

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 25 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£241.72

*price indicative

RS Stock No.:
136-5293
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Isolator Switch

Number of Poles

3

Mount Type

Panel Mount

IP Rating

IP65

Electrical Phase

3

Handle Colour

Red

Series

FS323

Auxiliary Contacts Available

No

Switching Current

63A

Switching AC Voltage

690V ac

Padlock Compatibility

No

Minimum Operating Temperature

0°C

Switching Power

90kW

Depth

244mm

Standards/Approvals

IEC/EN

Hazardous Area Certification

NO

Length

500mm

Width

300mm

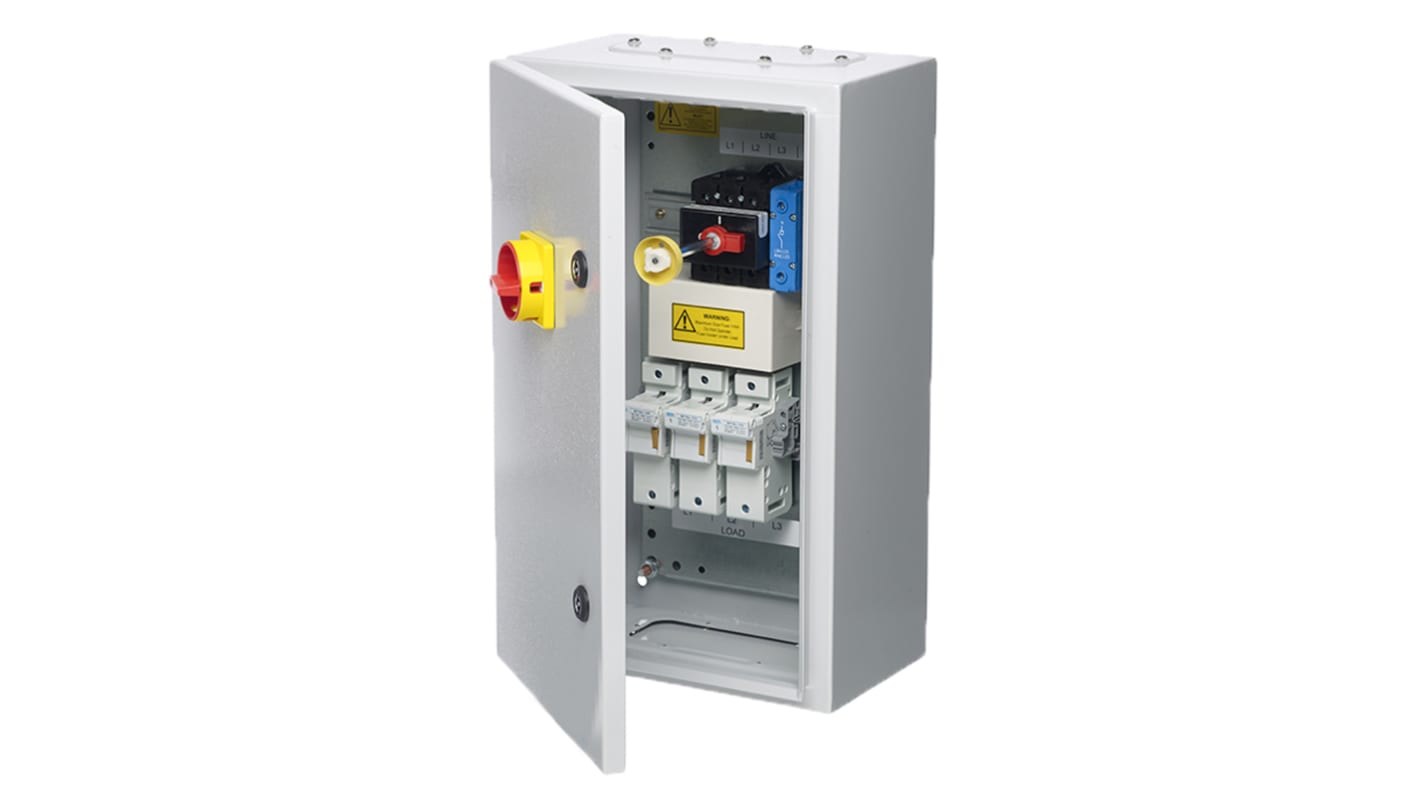

RS PRO 3P+N Enclosed Door Interlocked Fused Switch (63A)


A robust Steel cabinet with an interlocking fused switch for use with low voltage switchgear applications including power distribution, load isolation and motor start up and stop.;Constructed from epoxy coated Steel for a hardwearing lockable cabinet that can take occasional damage and impact. The switch handle is constructed from corrosion resistant plastic and can be padlocked avoiding accidental or unauthorised use.;Easily mountable via 4 x 8.5mm screw holes and fitted with 22 x 58mm fuse holders for a strong, high quality fused cabinet.

Features and Benefits


  • 3P+N interlocked fused switch

  • Voltage rating of 690V

  • Maximum current of 63A

  • Easy access and lockable

  • Padlockable switch handle

  • Epoxy powder coated Steel

  • Fitted with 22 x 58 mm fuse holders

  • Dimensions of 500 x 300 x 244mm

    • Load Break Switch: CB, CE, SEMKO, IEC EN 60947-3;Fuse Holder: CE, TUV, EN60269-1, HD60269-2

    Why RS PRO?


    RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
