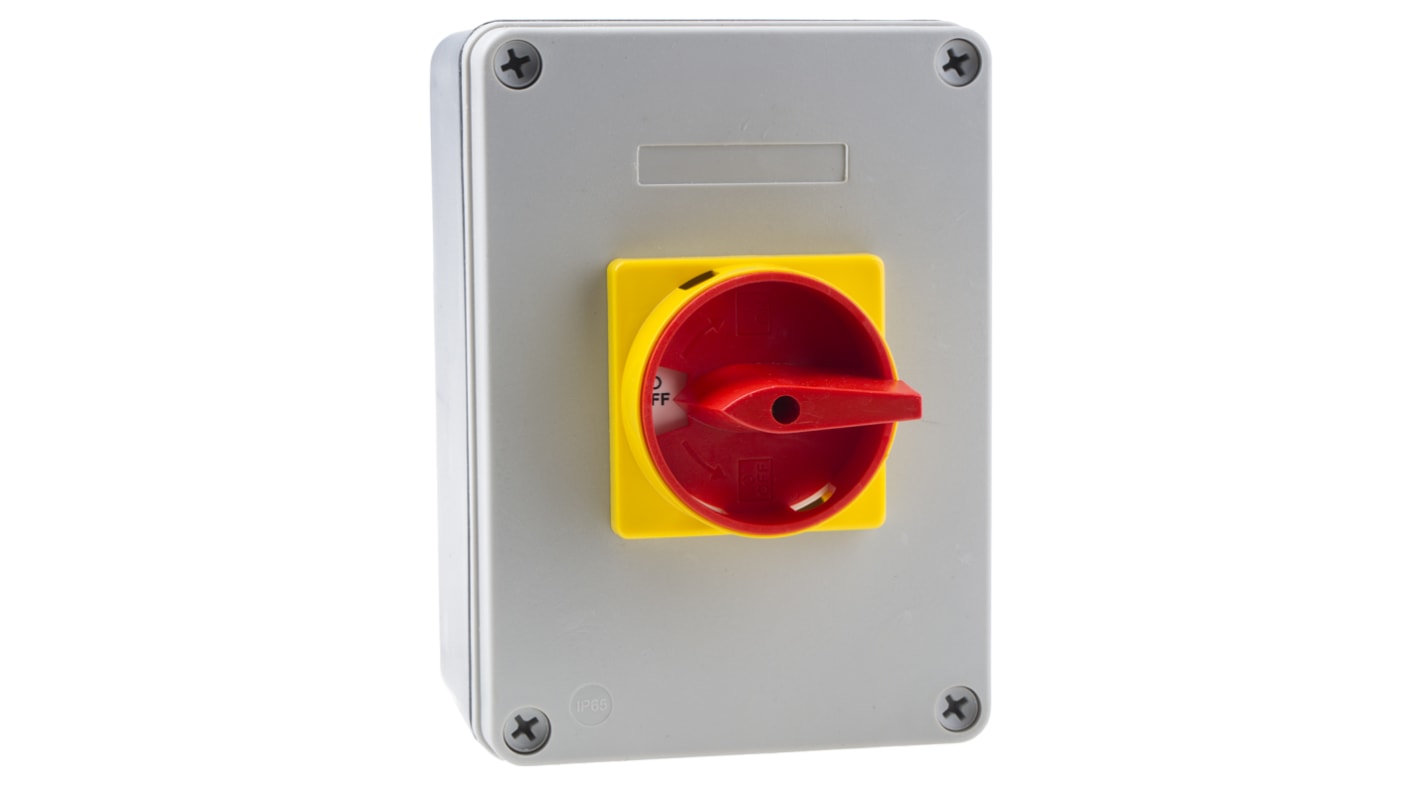

RS PRO 3P Pole Panel Mount Isolator Switch - 40A Maximum Current, 18.5kW Power Rating, IP65
- RS Stock No.:
- 860-9539
- Brand:
- RS PRO
Subtotal (1 unit)*
£42.93
(exc. VAT)
£51.52
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 10 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.93 |
*price indicative
- RS Stock No.:
- 860-9539
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Poles | 3P | |
| Maximum Current | 40A | |
| Mounting Type | Panel Mount | |
| IP Rating | IP65 | |
| Power Rating | 18.5kW | |
| Voltage Rating | 690V | |
| Handle Colour | Red | |
| Accepts Padlocks | Yes | |
| Switch Rating | 30kA | |
| Length | 175mm | |
| Width | 125mm | |
| Depth | 90mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Poles 3P | ||
Maximum Current 40A | ||
Mounting Type Panel Mount | ||
IP Rating IP65 | ||
Power Rating 18.5kW | ||
Voltage Rating 690V | ||
Handle Colour Red | ||
Accepts Padlocks Yes | ||
Switch Rating 30kA | ||
Length 175mm | ||
Width 125mm | ||
Depth 90mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +40°C | ||
- COO (Country of Origin):
- IN
RS PRO Boxed Isolators
Boxed isolator switch disconnector from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop. The RS PRO range comes in 3, 4 and 6 pole versions and has a power output available up to 90 kW.
Features and Benefits
• Easy installation
• Compact and reliable
• Finger protection
• Wiping contacts
• IP65 product rating (protection from total dust ingress)
• Padlockable handles
• Excellent switching and high short circuit capacity
• Flame retardant material
• Maximum voltage 750V
• Compact and reliable
• Finger protection
• Wiping contacts
• IP65 product rating (protection from total dust ingress)
• Padlockable handles
• Excellent switching and high short circuit capacity
• Flame retardant material
• Maximum voltage 750V
Applications
• Non-inductive or slightly inductive loads, resistance fumaces
• Squirrel - cage motors: starting, switching off motors during running
• Control of AC electromagnetic loads
• Switching of resistive loads, including moderate overloads
• Switching of motor loads or other highly inductive loads
• Switching of mixed resistive and inductive loads
• Squirrel - cage motors: starting, switching off motors during running
• Control of AC electromagnetic loads
• Switching of resistive loads, including moderate overloads
• Switching of motor loads or other highly inductive loads
• Switching of mixed resistive and inductive loads
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Standards
EN60947
