Bulk discount available
Subtotal (1 unit)*
£35.72
(exc. VAT)
£42.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 351 unit(s) ready to ship
- Plus 26 unit(s) ready to ship from another location
- Plus 432 unit(s) shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £35.72 |
| 5 - 9 | £34.65 |
| 10 + | £33.15 |
*price indicative
- RS Stock No.:
- 466-138
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | Panel Mount | |
| IP Rating | IP65 | |
| Electrical Phase | 3 | |
| Handle Colour | Red | |
| Switching Current | 63 A | |
| Series | LB | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | No | |
| Switching AC Voltage | 750 V ac | |
| Padlock Compatibility | Yes | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 45kW | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | No | |
| Length | 175mm | |
| Width | 125 mm | |
| Depth | 90mm | |
| Standards/Approvals | UL, RoHS, IEC, EN | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type Panel Mount | ||
IP Rating IP65 | ||
Electrical Phase 3 | ||
Handle Colour Red | ||
Switching Current 63 A | ||
Series LB | ||
Terminal Type Screw | ||
Auxiliary Contacts Available No | ||
Switching AC Voltage 750 V ac | ||
Padlock Compatibility Yes | ||
Minimum Operating Temperature -25°C | ||
Switching Power 45kW | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification No | ||
Length 175mm | ||
Width 125 mm | ||
Depth 90mm | ||
Standards/Approvals UL, RoHS, IEC, EN | ||
- COO (Country of Origin):
- IN

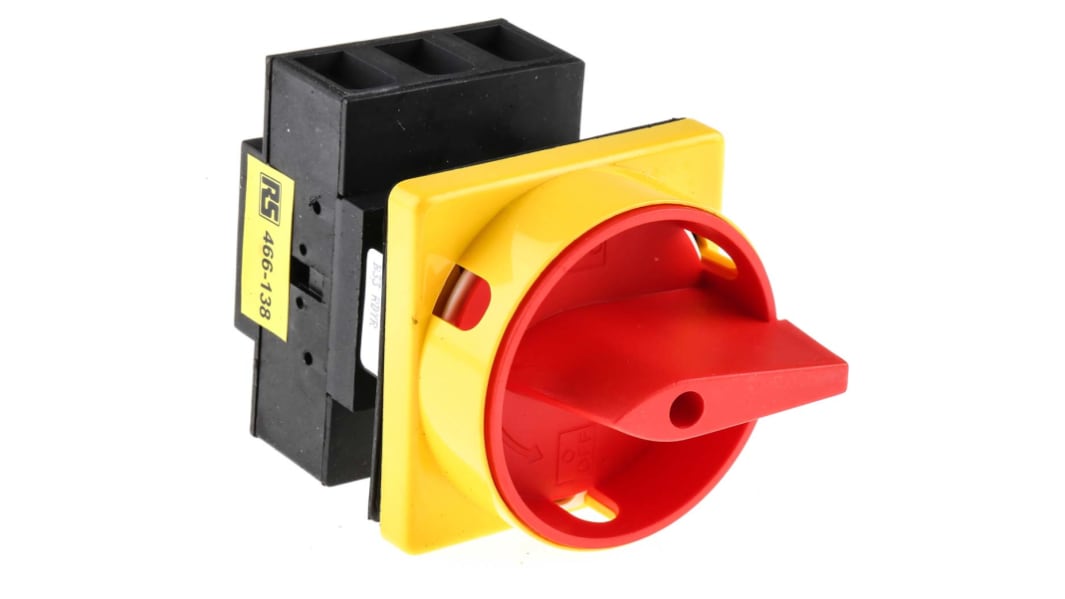

RS PRO Panel Mount (Padlockable)
This Panel Mount Non- fused isolator switch from our high-quality own brand RS PRO is designed for use with low voltage switchgear such as power distribution, load isolation and motor start/stop.
Features and Benefits
• Easy installation
• Compact and reliable
• Finger protection
• Padlockable for added security
• Single hole for front mounting
• 90° switching angle
• Forced open contacts
• Terminal screws in open contacts
• All switch rating at AC22
• Maximum panel thickness 3mm
• Minimum depth behind panel 102mm
• Maximum depth behind panel 117mm
• Actuator dimensions 64x64x32mm
• IP65 product rating (protection from total dust ingress)
What is the difference between a fused switch disconnector and a non-fused switch disconnector?
Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.
How does an isolator switch work?
This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Approvals
UL, CSA
