RS PRO Industrial Circular Connectors, 7 Contacts, In-line, SY13 Connector, Socket, Male, IP67
- RS Stock No.:
- 304-735
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.38
(exc. VAT)
£7.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.38 |
10 - 24 | £5.87 |
25 + | £5.30 |
*price indicative
- RS Stock No.:
- 304-735
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 7 | |
Mounting Type | In-line | |
Connector Size | SY13 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP67 | |
Current Rating | 5A | |
Body Orientation | Straight | |
Voltage Rating | 125V ac | |
Shell Size | 13mm | |
Mating Type | Bayonet | |
Housing Material | Nylon 66, PC | |
Pole Format | 7P | |
Strain Relief | No | |
Contact Plating | Gold | |
Shielded/Unshielded | Unshielded | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 19.5mm | |
Contact Material | Brass | |
Maximum Operating Temperature | 85°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 7 | ||
Mounting Type In-line | ||
Connector Size SY13 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP67 | ||
Current Rating 5A | ||
Body Orientation Straight | ||
Voltage Rating 125V ac | ||
Shell Size 13mm | ||
Mating Type Bayonet | ||
Housing Material Nylon 66, PC | ||
Pole Format 7P | ||
Strain Relief No | ||
Contact Plating Gold | ||
Shielded/Unshielded Unshielded | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 19.5mm | ||
Contact Material Brass | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN

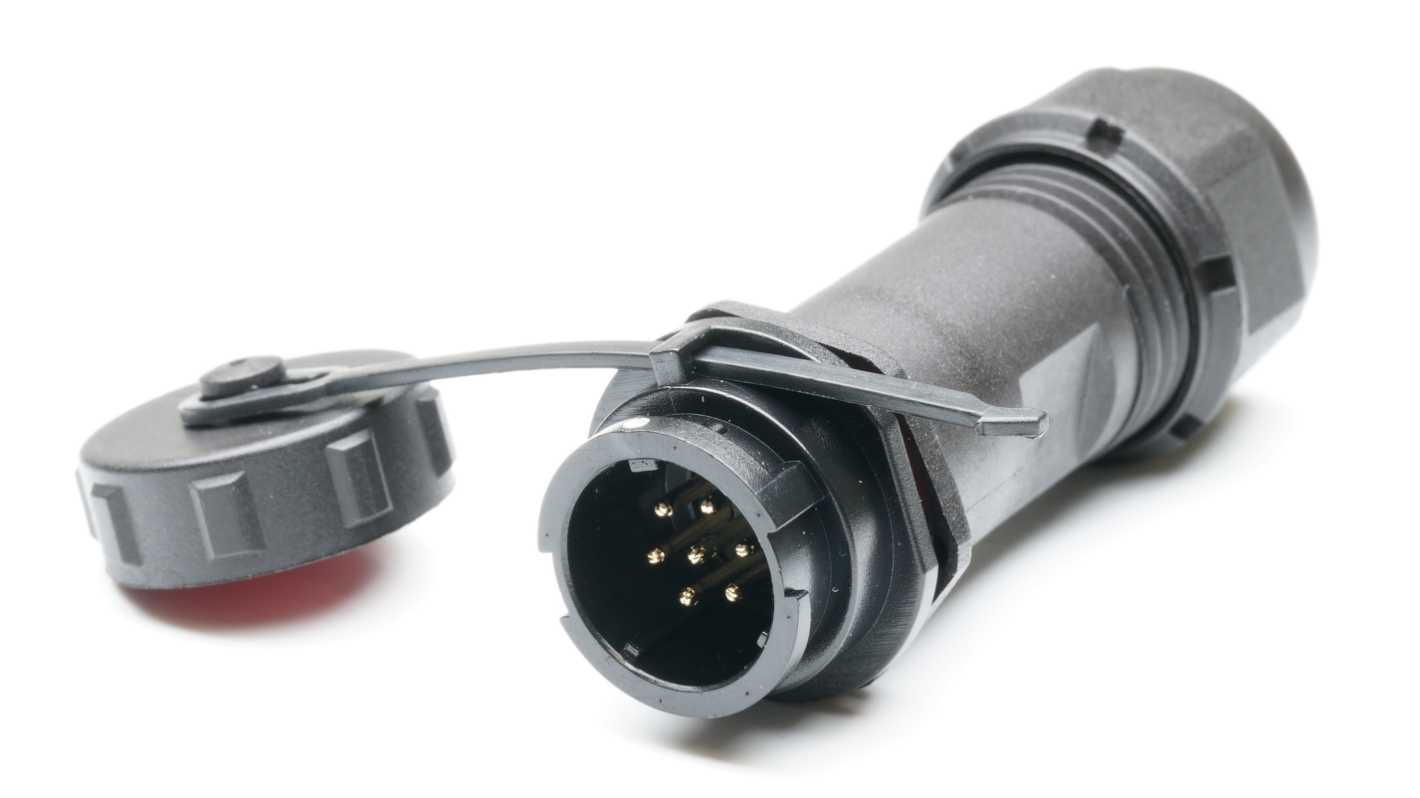

RS PRO Industrial Circular Connector, IP67, Bayonet Coupling
This RS PRO Industrial Circular Connector is designed for robust and reliable connections in demanding environments. With its IP67 rating, it offers excellent water resistance, making it ideal for applications requiring durability and space efficiency. The bayonet coupling ensures secure and quick connections, enhancing operational efficiency.
Features and Benefits
IP67 waterproof connector: Provides high water resistance for outdoor and harsh environments
Bayonet coupling: Allows for quick and secure connections, reducing installation time
Nylon 66 and polycarbonate housing: Offers durability and resistance to environmental factors
Gold-plated contacts: Ensures reliable conductivity and corrosion resistance
7 contacts with 125 V AC voltage rating: Suitable for various electrical applications
Compact design with 13 mm shell size: Saves space in installations
Bayonet coupling: Allows for quick and secure connections, reducing installation time
Nylon 66 and polycarbonate housing: Offers durability and resistance to environmental factors
Gold-plated contacts: Ensures reliable conductivity and corrosion resistance
7 contacts with 125 V AC voltage rating: Suitable for various electrical applications
Compact design with 13 mm shell size: Saves space in installations
Applications
Industrial automation
Outdoor equipment
Marine applications
Telecommunications
Outdoor equipment
Marine applications
Telecommunications
Additional Information
Contact material: Brass
Operating temperature range: -40 °C to 85 °C
Termination method: Solder
Operating temperature range: -40 °C to 85 °C
Termination method: Solder
