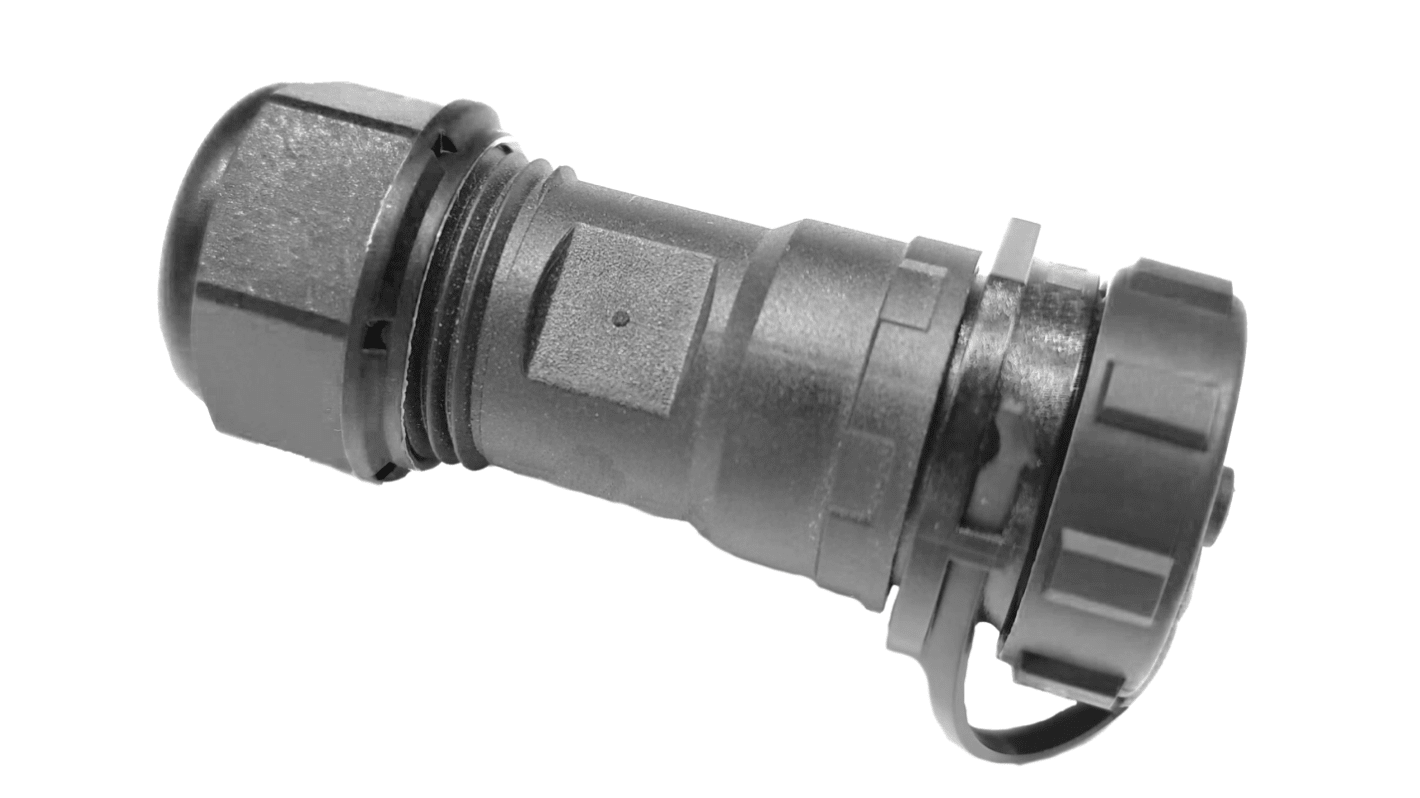

RS PRO Industrial Circular Connectors, 3 Contacts, In-line, SP17 Connector, Socket, Female, IP68
- RS Stock No.:
- 304-500
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.33
(exc. VAT)
£6.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 999,999,989 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.33 |
10 - 24 | £4.90 |
25 + | £4.42 |
*price indicative
- RS Stock No.:
- 304-500
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 3 | |
Mounting Type | In-line | |
Connector Size | SP17 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Crimp | |
IP Rating | IP68 | |
Current Rating | 10A | |
Body Orientation | Straight | |
Voltage Rating | 500V ac | |
Shell Size | 17mm | |
Mating Type | Threaded Coupling | |
Housing Material | Nylon 66, PC | |
Pole Format | 3P | |
Contact Plating | Gold | |
Strain Relief | No | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 25mm | |
Contact Material | Brass | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | 85°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 3 | ||
Mounting Type In-line | ||
Connector Size SP17 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Crimp | ||
IP Rating IP68 | ||
Current Rating 10A | ||
Body Orientation Straight | ||
Voltage Rating 500V ac | ||
Shell Size 17mm | ||
Mating Type Threaded Coupling | ||
Housing Material Nylon 66, PC | ||
Pole Format 3P | ||
Contact Plating Gold | ||
Strain Relief No | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 25mm | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, IP68, 3 Contacts, 500 V ac
This RS PRO Industrial Circular Connector is engineered for robust performance in challenging environments. It ensures reliable power or signal connections with its IP68 waterproof rating, making it ideal for demanding applications. The connector supports various termination methods including solder, screw, horizontal mount screw, and crimp, providing flexibility for different contact arrangements.
Features and Benefits
IP68 Rating: Ensures waterproof protection for reliable performance in harsh conditions
Threaded Coupling: Provides secure and stable connections
Multiple Termination Options: Offers solder, screw, horizontal mount screw, and crimp terminations for versatility
High Voltage Rating: Supports up to 500 V ac, suitable for high-power applications
Durable Housing Material: Made from Nylon 66 and Polycarbonate for enhanced durability
Gold-Plated Contacts: Ensures excellent conductivity and corrosion resistance
Threaded Coupling: Provides secure and stable connections
Multiple Termination Options: Offers solder, screw, horizontal mount screw, and crimp terminations for versatility
High Voltage Rating: Supports up to 500 V ac, suitable for high-power applications
Durable Housing Material: Made from Nylon 66 and Polycarbonate for enhanced durability
Gold-Plated Contacts: Ensures excellent conductivity and corrosion resistance
Applications
Industrial machinery
Outdoor equipment
Automotive systems
Marine environments
Outdoor equipment
Automotive systems
Marine environments
Additional Information
Connector Size: SP17
Contact Gender: Female
Operating Temperature Range: -40 °C to 85 °C
Current Rating: 10 A
Contact Gender: Female
Operating Temperature Range: -40 °C to 85 °C
Current Rating: 10 A
