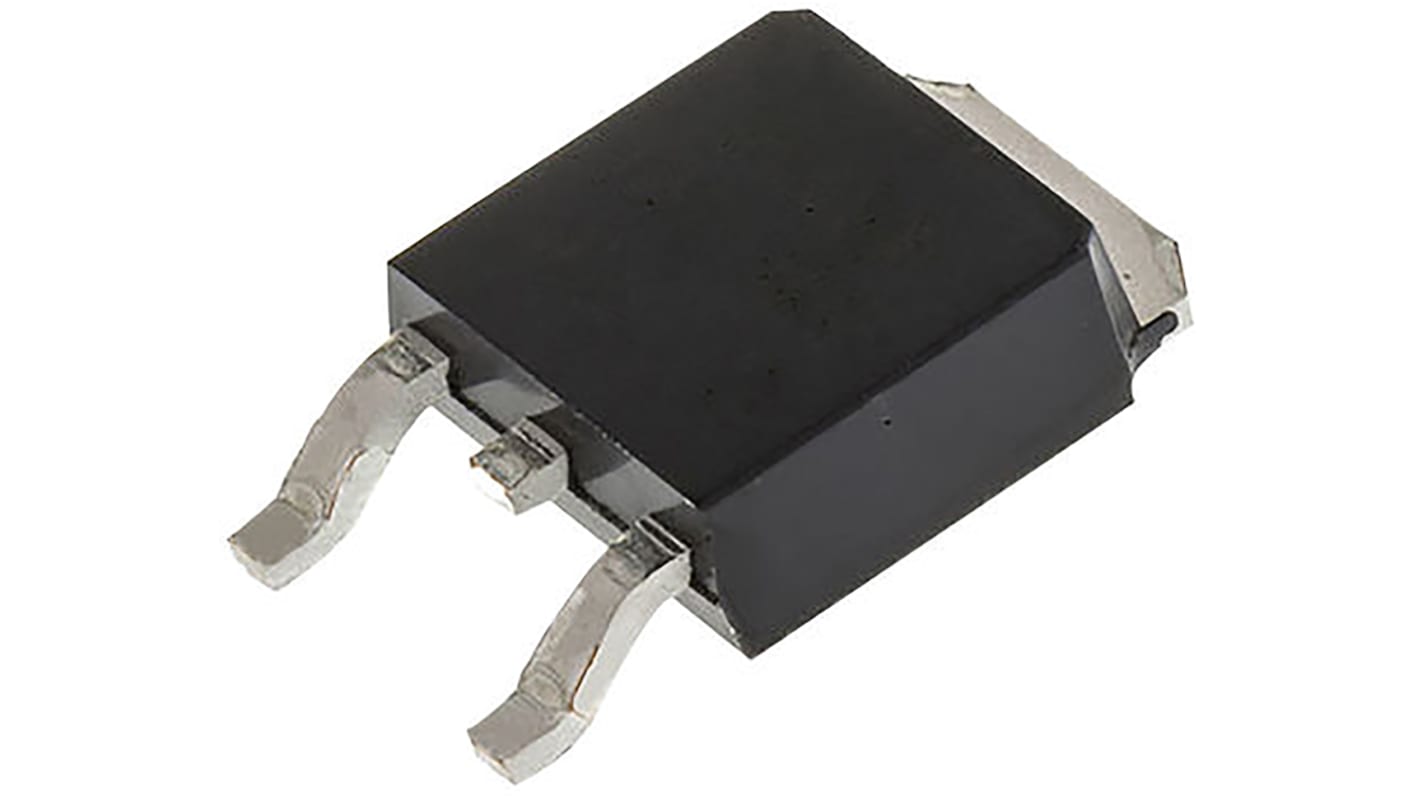

STMicroelectronics STGD5H60DF IGBT, 10 A 600 V, 3-Pin DPAK (TO-252), Surface Mount

View all IGBTs

Subtotal (1 reel of 2500 units)*

£992.50

(exc. VAT)

£1,190.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.397£992.50

*price indicative

RS Stock No.:
165-8040
Mfr. Part No.:
STGD5H60DF
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Continuous Collector Current

10 A

Maximum Collector Emitter Voltage

600 V

Maximum Gate Emitter Voltage

±20V

Maximum Power Dissipation

83 W

Package Type

DPAK (TO-252)

Mounting Type

Surface Mount

Channel Type

N

Pin Count

3

Transistor Configuration

Single

Dimensions

6.6 x 6.2 x 2.4mm

Maximum Operating Temperature

+175 °C

Energy Rating

221mJ

Minimum Operating Temperature

-55 °C

Gate Capacitance

855pF

COO (Country of Origin):
CN

IGBT Discretes, STMicroelectronics



IGBT Discretes & Modules, STMicroelectronics


The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
