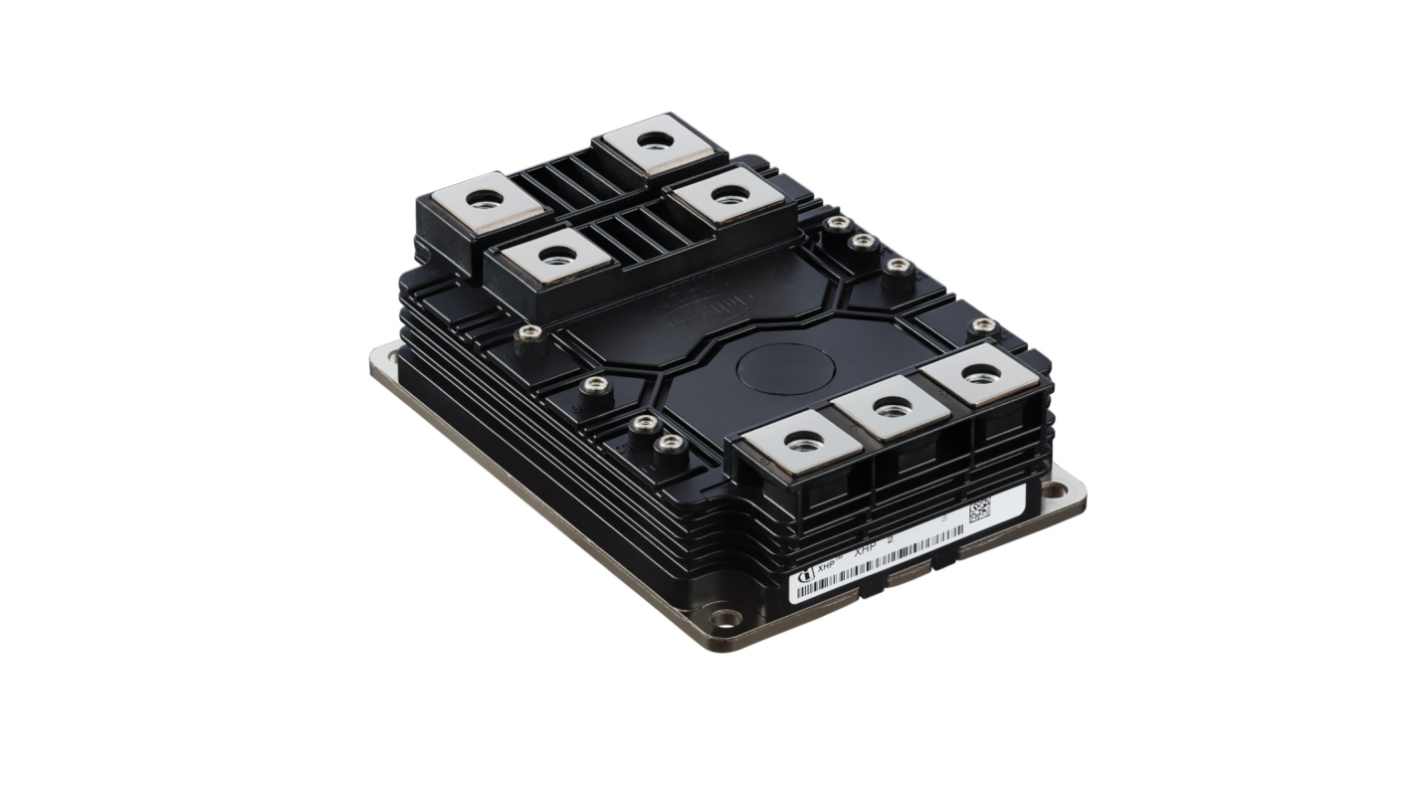

Infineon FF1200XTR17T2P5PBPSA1, N-Channel Half Bridge IGBT, 1.2 kA 1.7 kV, Screw
- RS Stock No.:
- 349-423
- Mfr. Part No.:
- FF1200XTR17T2P5PBPSA1
- Brand:
- Infineon
Subtotal (1 unit)*
£1,034.26
(exc. VAT)
£1,241.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,034.26 |
*price indicative
- RS Stock No.:
- 349-423
- Mfr. Part No.:
- FF1200XTR17T2P5PBPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 1.2kA | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 1.7kV | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 1200kW | |
| Configuration | Half Bridge | |
| Mount Type | Screw | |
| Channel Type | N | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 3V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 140mm | |
| Width | 99.8mm | |
| Standards/Approvals | IEC 60747, IEC 60749, IEC 60068 | |
| Height | 40mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 1.2kA | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 1.7kV | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 1200kW | ||
Configuration Half Bridge | ||
Mount Type Screw | ||
Channel Type N | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 3V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Length 140mm | ||
Width 99.8mm | ||
Standards/Approvals IEC 60747, IEC 60749, IEC 60068 | ||
Height 40mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- DE
The Infineon XHP 2 1700 V 1200 A dual IGBT module with .XT interconnection technology, TRENCHSTOP IGBT5 and Thermal Interface Material for high reliability and robustness, combined with system availability and long lifetime for high power traction and wind applications.
Easier paralleling of modules
Up to 10 times longer lifetime
Less cooling effort for same output power
Enables higher system overload conditions
