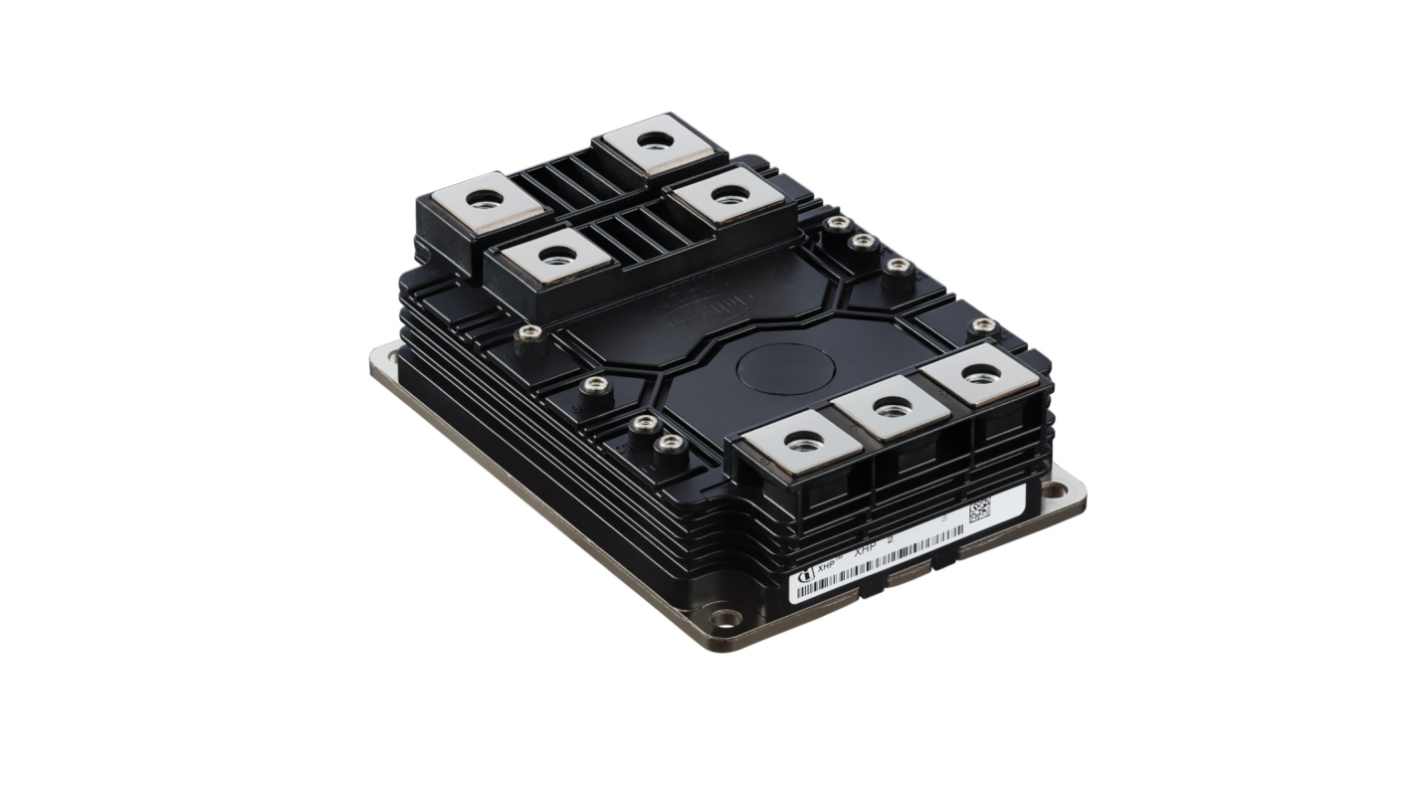

Infineon FF1800XTR17T2P5PBPSA1, N-Channel Half Bridge IGBT, 1.8 kA 1.7 kV XHP-2, Screw
- RS Stock No.:
- 349-424
- Mfr. Part No.:
- FF1800XTR17T2P5PBPSA1
- Brand:
- Infineon
Subtotal (1 unit)*
£1,201.51
(exc. VAT)
£1,441.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,201.51 |
*price indicative
- RS Stock No.:
- 349-424
- Mfr. Part No.:
- FF1800XTR17T2P5PBPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 1.8kA | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 1.7kV | |
| Maximum Power Dissipation Pd | 1800kW | |
| Number of Transistors | 2 | |
| Configuration | Half Bridge | |
| Package Type | XHP-2 | |
| Mount Type | Screw | |
| Channel Type | N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 3V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | IEC 60068, IEC 60749, IEC 60747 | |
| Width | 99.8mm | |
| Height | 40mm | |
| Length | 140mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 1.8kA | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 1.7kV | ||
Maximum Power Dissipation Pd 1800kW | ||
Number of Transistors 2 | ||
Configuration Half Bridge | ||
Package Type XHP-2 | ||
Mount Type Screw | ||
Channel Type N | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 3V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals IEC 60068, IEC 60749, IEC 60747 | ||
Width 99.8mm | ||
Height 40mm | ||
Length 140mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- DE
The Infineon XHP 2 1700 V 1800 A dual IGBT module with .XT interconnection technology, TRENCHSTOP IGBT5 and Thermal Interface Material for high reliability and robustness, combined with system availability and long lifetime for high power traction and wind applications.
Easier paralleling of modules
Up to 10 times longer lifetime
Less cooling effort for same output power
Enables higher system overload conditions
