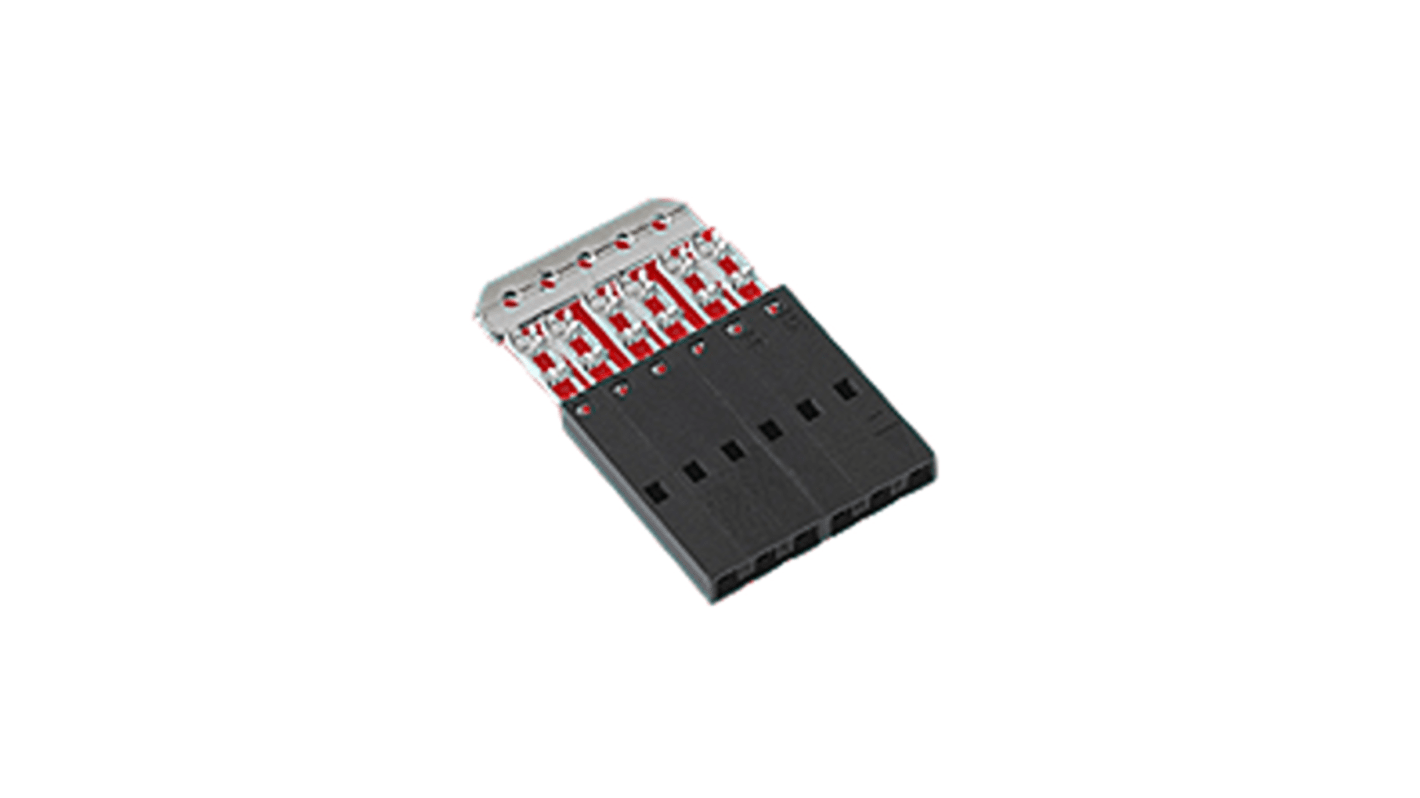

Molex 9-Way IDC Connector Female for Cable, 1 Row
- RS Stock No.:
- 684-617
- Mfr. Part No.:
- 14-56-2091
- Brand:
- Molex
Subtotal (1 tube of 100 units)*
£174.80
(exc. VAT)
£209.76
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £174.80 | £1.748 |
*price indicative
- RS Stock No.:
- 684-617
- Mfr. Part No.:
- 14-56-2091
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 9 | |
| Product Type | IDC Connector | |
| Number of Rows | 1 | |
| Pitch | 2.54mm | |
| Voltage | 250V | |
| Mount Type | Cable | |
| Connector Gender | Female | |
| Contact Plating | Gold | |
| Series | 70400 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Piercing | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 9 | ||
Product Type IDC Connector | ||
Number of Rows 1 | ||
Pitch 2.54mm | ||
Voltage 250V | ||
Mount Type Cable | ||
Connector Gender Female | ||
Contact Plating Gold | ||
Series 70400 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Piercing | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Material Phosphor Bronze | ||
The Molex SL insulation displacement connector assembly is engineered to provide reliable electrical connections for various applications. This non-polarized female connector, part of the 70400 series, supports a 2.54mm pitch, making it ideal for compact spaces in electronic devices. Designed for versatility, it accommodates wire sizes up to 24 AWG and features a sturdy construction with a polyester alloy resin for durability. With a gold-plated mating area for optimal conductivity, this connector meets numerous compliance standards, ensuring safety and environmental responsibility in your projects.
Ensures consistent performance with a maximum operational voltage of 250V
Provides easy integration with compatible parts, including KK 254 breakaway headers
Designed with no PCB retention and a stackable feature for space efficiency
Maintains low weight at just 1.397 grams, perfect for lightweight devices
