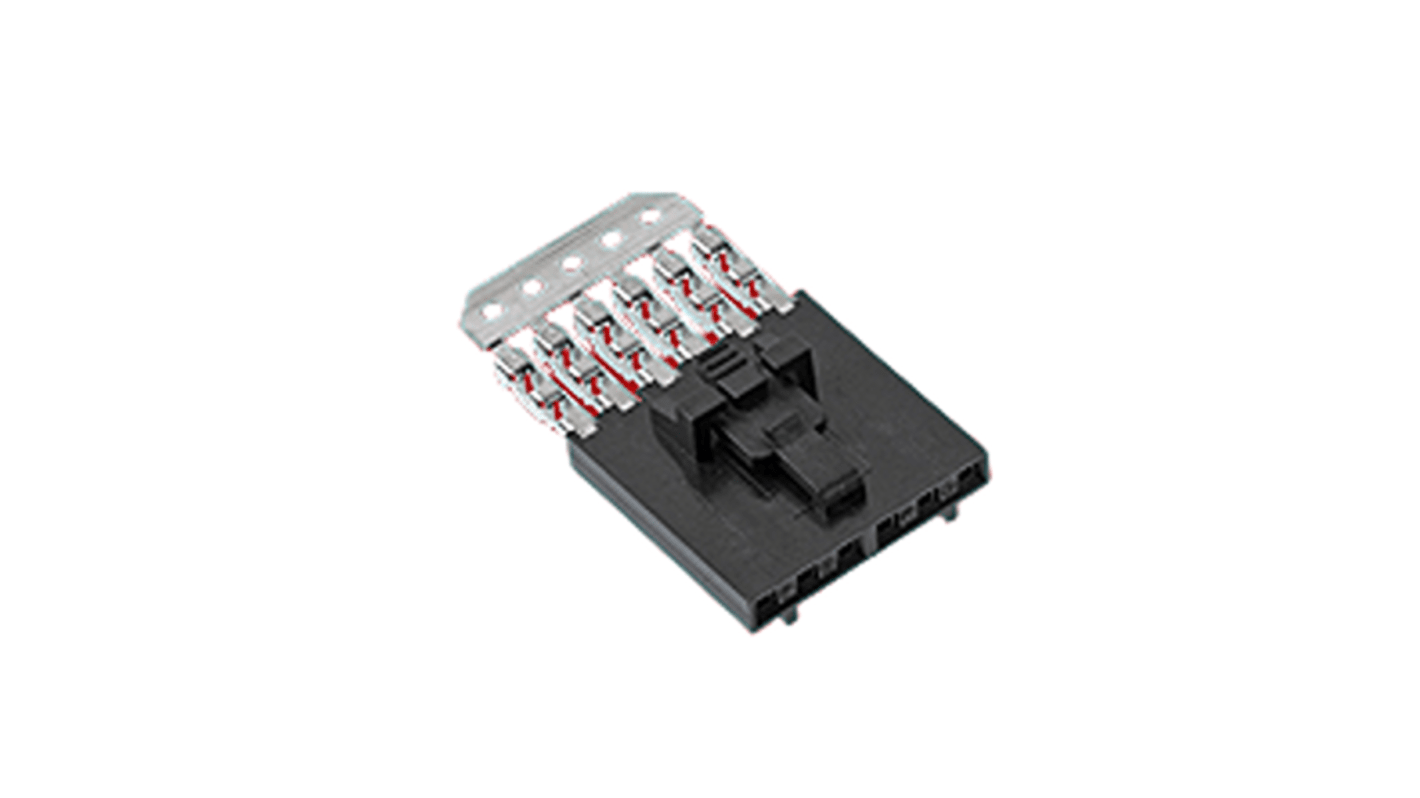

Molex 6-Way IDC Connector Female for Cable, 1 Row
- RS Stock No.:
- 684-082
- Mfr. Part No.:
- 14-56-2064
- Brand:
- Molex
Subtotal (1 tube of 200 units)*
£215.15
(exc. VAT)
£258.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £215.15 | £1.076 |
*price indicative
- RS Stock No.:
- 684-082
- Mfr. Part No.:
- 14-56-2064
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | IDC Connector | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Pitch | 2.54mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| Voltage | 250V | |
| Contact Plating | Gold | |
| Series | 70400 | |
| Termination Type | Piercing | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type IDC Connector | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Pitch 2.54mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
Voltage 250V | ||
Contact Plating Gold | ||
Series 70400 | ||
Termination Type Piercing | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Material Phosphor Bronze | ||
The Molex SL 2.54mm Pitch SL Insulation Displacement Connector Assembly serves as a reliable solution for electrical connectivity, boasting a robust design tailored to female, single-row applications. This connector is engineered for optimal performance with a positive locking mechanism and is suitable for wire sizes of 26 AWG, ensuring a secure fit for various assemblies. Its construction features premium materials, including phosphor bronze for metal components and polyester alloy for the resin, allowing it to withstand a temperature range from -40°C to +105°C. With six circuits and a durable design ensuring up to 50 mating cycles, this connector is ideal for applications where performance and longevity are paramount.
Accommodates wire sizes up to 26 AWG, making it versatile for different wire types
Provides a vertical entry angle, facilitating easier integration into systems
Constructed for 50 mating cycles, ensuring long-lasting reliability in applications
Mates seamlessly with various SL crimp housings and headers for straightforward assembly
