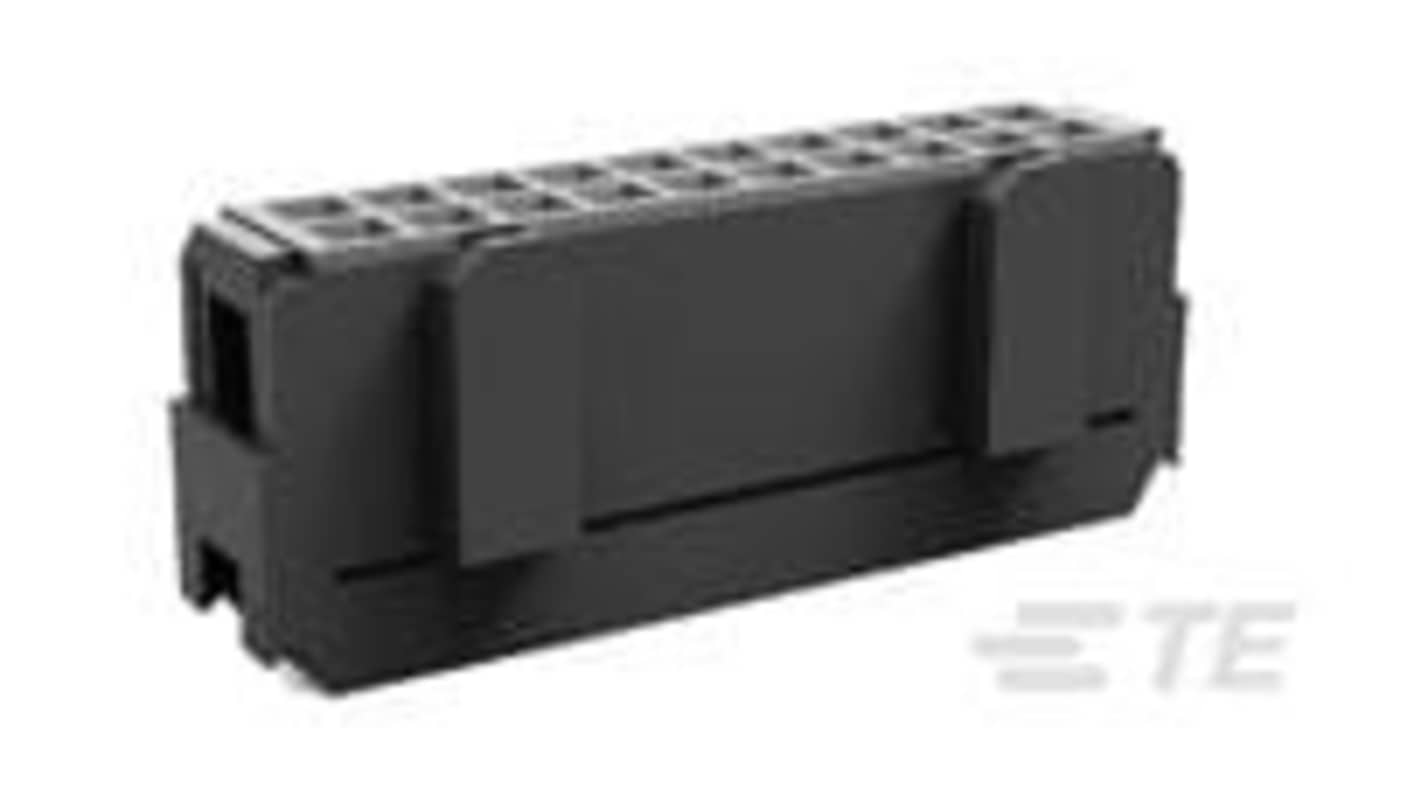

TE Connectivity 34-Way Connector Female for Cable, 2 Row
- RS Stock No.:
- 468-750
- Distrelec Article No.:
- 304-55-240
- Mfr. Part No.:
- 1658624-8
- Brand:
- TE Connectivity
Subtotal (1 tube of 50 units)*
£588.45
(exc. VAT)
£706.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £588.45 | £11.769 |
*price indicative
- RS Stock No.:
- 468-750
- Distrelec Article No.:
- 304-55-240
- Mfr. Part No.:
- 1658624-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 34 | |
| Product Type | Connector | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| Voltage | 250V | |
| Orientation | Vertical | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 65°C | |
| Termination Type | IDC | |
| Series | AMP-LATCH Novo | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Standards/Approvals | CSA, China RoHS 2 Directive MIIT Order No 32, 2016, UL E28476, UL 94V-0, UL, EU RoHS Directive 2011/65/EU, EU ELV Directive 2000/53/EC, CSA LR7189 | |
| Housing Material | Thermoplastic | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 34 | ||
Product Type Connector | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2.54mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
Voltage 250V | ||
Orientation Vertical | ||
Contact Plating Gold | ||
Minimum Operating Temperature 65°C | ||
Termination Type IDC | ||
Series AMP-LATCH Novo | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Standards/Approvals CSA, China RoHS 2 Directive MIIT Order No 32, 2016, UL E28476, UL 94V-0, UL, EU RoHS Directive 2011/65/EU, EU ELV Directive 2000/53/EC, CSA LR7189 | ||
Housing Material Thermoplastic | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- CN
The TE Connectivity wire-to-board connector is a robust solution designed for seamless integration in a variety of electronic applications. Featuring a 34-position configuration and a centreline pitch of 2.54 mm, it ensures reliable connections in a compact footprint. With a vertical, through-hole solder mounting style, this recombination of pin headers embodies performance and reliability tailored for rigorous conditions. Its optimal design accommodates ribbon cable connections, catering to modern connectivity demands while offering high levels of insulation resistance and operational voltage. This product is ideal for engineers seeking versatility in signal circuit applications without compromising on performance.
Solder termination method offers secure connections
Low connector profile promotes space-saving designs
Daisy chain capability simplifies multi-connection setups
Polarisation feature enhances user-friendly engagement
Thermoplastic housing material provides durability against environmental factors
Compatible with a range of wire sizes ensuring application flexibility
Offers low halogen content for improved environmental compliance
Mating retention features minimise accidental disconnections
