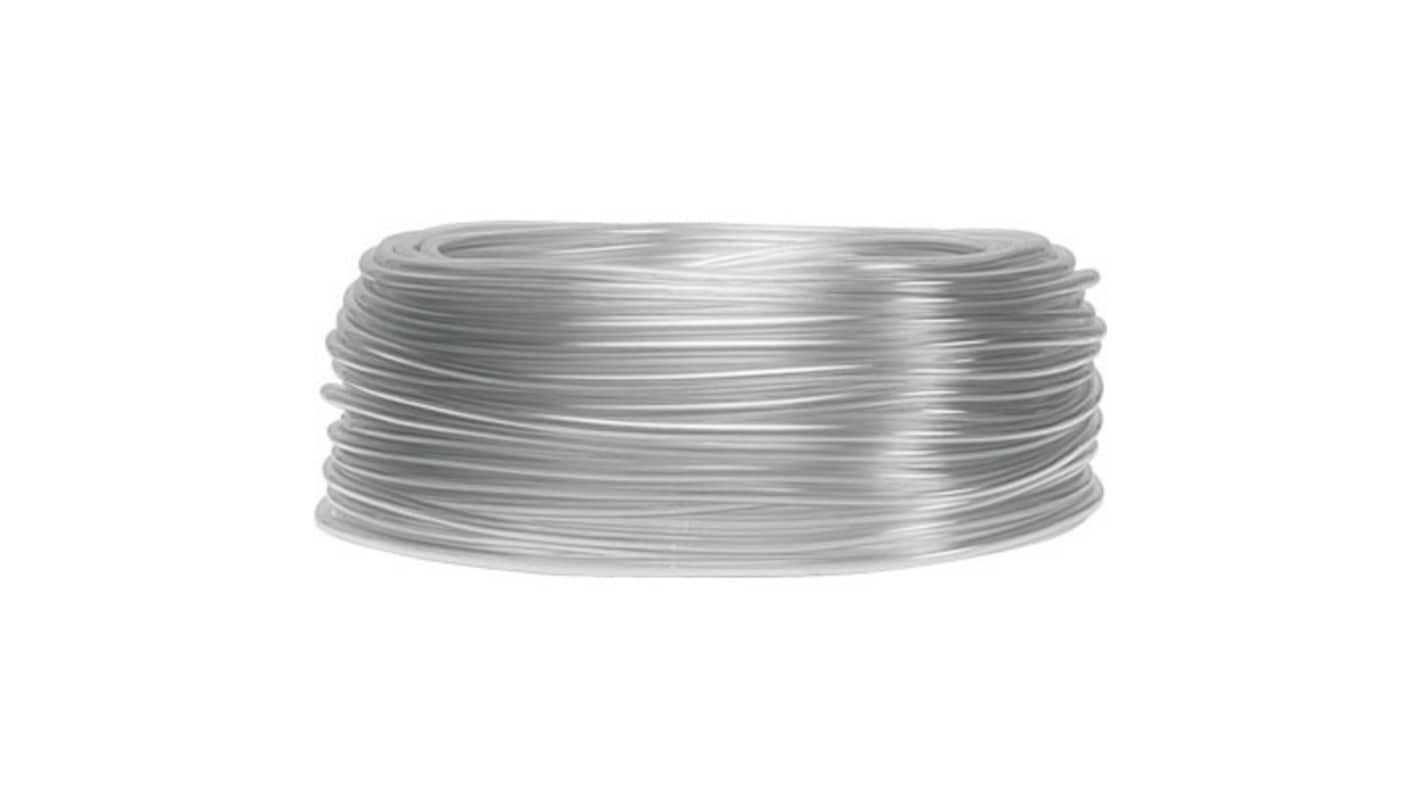

Festo Thermoplastic Elastomer, Flexible Tubing, 11 mm ID, 16 mm OD, Natural
- RS Stock No.:
- 651-405
- Mfr. Part No.:
- PUN-H-16X2,5-NT-100
- Brand:
- Festo
Subtotal (1 box of 100 metres)*
£465.00
(exc. VAT)
£558.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per Metre* |
|---|---|---|
| 1 + | £465.00 | £4.65 |
*price indicative
- RS Stock No.:
- 651-405
- Mfr. Part No.:
- PUN-H-16X2,5-NT-100
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Flexible Tubing | |
| Inside Diameter | 11mm | |
| Outside Diameter | 16mm | |
| Material | Thermoplastic Elastomer | |
| Maximum Operating Pressure | 1 Mpa | |
| Application | Energy Chains | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -35°C | |
| Colour | Natural | |
| Standards/Approvals | ISO 8573-1, UL94 HB, VDMA24364-B2-L, TUV, RoHS, ISO 14644-1 | |
| Model Number | 558269 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Flexible Tubing | ||
Inside Diameter 11mm | ||
Outside Diameter 16mm | ||
Material Thermoplastic Elastomer | ||
Maximum Operating Pressure 1 Mpa | ||
Application Energy Chains | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -35°C | ||
Colour Natural | ||
Standards/Approvals ISO 8573-1, UL94 HB, VDMA24364-B2-L, TUV, RoHS, ISO 14644-1 | ||
Model Number 558269 | ||
- COO (Country of Origin):
- CZ
The Festo Plastic tubing is engineered for precision and reliability in fluid control applications. Designed to accommodate various demanding environments, this tubing offers exceptional flexibility and resilience, making it suitable for energy chains and complex machinery. With a robust outer diameter of 16 mm and an inner diameter of 11 mm, it ensures optimal flow while maintaining structural integrity under pressure. Its temperature range of -35 °C to 60 °C allows it to operate seamlessly across diverse conditions, providing dependable performance for applications in industrial settings.
Temperature dependent operating pressure up to 1 MPa which ensuring safety and reliability under various thermal conditions
Suitable for use with compressed air and water meeting diverse operational needs
Constructed from RoHS compliant TPE U which ensuring environmental safety
Pneumatic connections designed for push in connectors with an outer diameter of 16 mm
Approved by the German Technical Control Board for quality assurance
Lab tested to ensure compliance with fire safety standards
Suitable for cleanroom applications although specific evaluations may apply
Notable compliance with VDMA24364 B2 L for LABS which ensuring production quality
