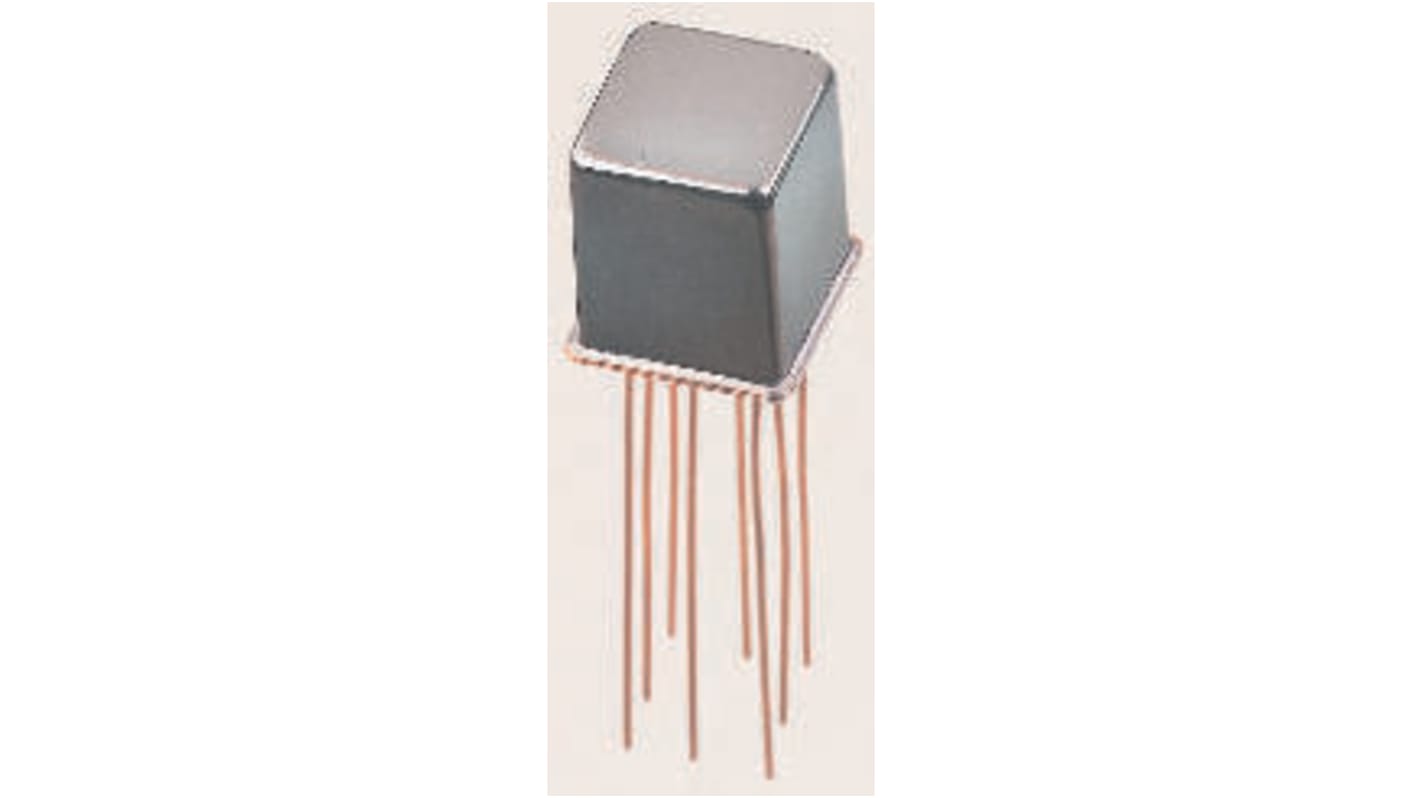

Teledyne PCB Mount RF Relay, 12V dc Coil, DPDT
- RS Stock No.:
- 351-465
- Mfr. Part No.:
- 172-12
- Brand:
- Teledyne
Subtotal (1 unit)*
£79.73
(exc. VAT)
£95.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £79.73 |
*price indicative
- RS Stock No.:
- 351-465
- Mfr. Part No.:
- 172-12
- Brand:
- Teledyne
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Teledyne | |
| Coil Resistance | 400Ω | |
| Relay Type | RF Relay | |
| Contact Resistance | 150 mΩ | |
| Contact Configuration | DPDT | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Contact Voltage | 28V dc | |
| Coil Power | 360mW | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +85°C | |
| Terminal Type | Through Hole | |
| Switching Voltage | 28V dc | |
| Operating Temperature Range | -55 → +85°C | |
| Life | 5000000Cycles | |
| Length | 8.51mm | |
| Depth | 8.51mm | |
| Operating Time Including Bounce | 6ms | |
| Dimensions | 8.51 x 8.51 x 7.11mm | |
| Relay Switching Classification | General Purpose Relay | |
| Height | 7.11mm | |
Select all | ||
|---|---|---|
Brand Teledyne | ||
Coil Resistance 400Ω | ||
Relay Type RF Relay | ||
Contact Resistance 150 mΩ | ||
Contact Configuration DPDT | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Contact Voltage 28V dc | ||
Coil Power 360mW | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Terminal Type Through Hole | ||
Switching Voltage 28V dc | ||
Operating Temperature Range -55 → +85°C | ||
Life 5000000Cycles | ||
Length 8.51mm | ||
Depth 8.51mm | ||
Operating Time Including Bounce 6ms | ||
Dimensions 8.51 x 8.51 x 7.11mm | ||
Relay Switching Classification General Purpose Relay | ||
Height 7.11mm | ||
- COO (Country of Origin):
- US
Teledyne RF Relay
The Teledyne Centigrid® RF relay is an ultra-miniature, hermetically sealed and DPDT armature device. It has a coil voltage rating of 12VDC. It has a low profile height and grid spaced terminals that prevent the need for spreader pads and make them suitable for use when close PCB spacing is required. The series 172 relay has an internal discrete silicon diode for coil transient suppression.
Features and Benefits
Advanced cleaning techniques provide maximum assurance of internal cleanliness
All welded construction
Coil resistance is 400ohm
Maximum DC voltage rating is 16VDC
High force/mass ratios for resistance to shock and vibration
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Excellent switching performance from DC to 2GHz
Precious metal alloy contact material with gold plating ensures excellent high current and dry circuit switching capabilities
Unique uni-frame design provides high magnetic efficiency and mechanical rigidity
Operating temperature ranges between -55°C and 85°C
All welded construction
Coil resistance is 400ohm
Maximum DC voltage rating is 16VDC
High force/mass ratios for resistance to shock and vibration
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Excellent switching performance from DC to 2GHz
Precious metal alloy contact material with gold plating ensures excellent high current and dry circuit switching capabilities
Unique uni-frame design provides high magnetic efficiency and mechanical rigidity
Operating temperature ranges between -55°C and 85°C
Applications
Attenuators
Mobile communication
Telecommunication
Test instruments
Mobile communication
Telecommunication
Test instruments
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
