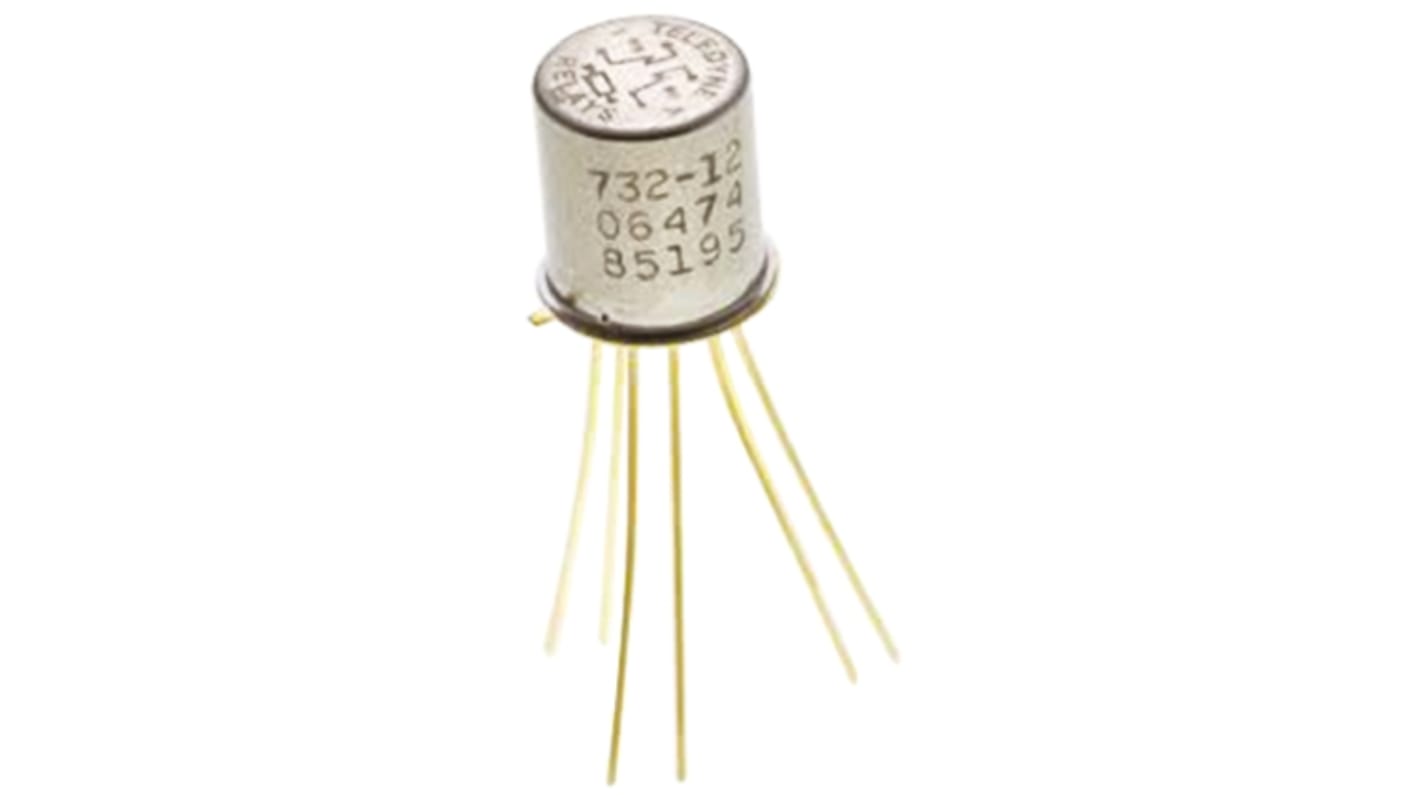

Teledyne PCB Mount RF Relay, 12V dc Coil, DPDT
- RS Stock No.:
- 758-2451
- Mfr. Part No.:
- 732-12
- Brand:
- Teledyne
Subtotal (1 unit)*
£74.62
(exc. VAT)
£89.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 127 unit(s) ready to ship
- Plus 40 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.62 |
*price indicative
- RS Stock No.:
- 758-2451
- Mfr. Part No.:
- 732-12
- Brand:
- Teledyne
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Teledyne | |
| Coil Resistance | 850Ω | |
| Relay Type | RF Relay | |
| Contact Resistance | 150 mΩ | |
| Contact Configuration | DPDT | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Contact Voltage | 28V dc | |
| Coil Power | 200mW | |
| Contact Material | Gold Plated | |
| Terminal Type | Through Hole | |
| Relay Switching Classification | General Purpose Relay | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 9.4mm | |
| Contact Current Rating | 1A | |
| Maximum Operating Temperature | +85°C | |
| Dimensions | 9.4(Dia.) x 9.76mm | |
| Operating Time Including Bounce | 6ms | |
| Depth | 9.4mm | |
| Height | 9.76mm | |
| Length | 9.76mm | |
| Life | 10000000Cycles | |
| Operating Temperature Range | -55 → +85°C | |
| Switching Voltage | 28V dc | |
| Select all | ||
|---|---|---|
Brand Teledyne | ||
Coil Resistance 850Ω | ||
Relay Type RF Relay | ||
Contact Resistance 150 mΩ | ||
Contact Configuration DPDT | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Contact Voltage 28V dc | ||
Coil Power 200mW | ||
Contact Material Gold Plated | ||
Terminal Type Through Hole | ||
Relay Switching Classification General Purpose Relay | ||
Minimum Operating Temperature -55°C | ||
Diameter 9.4mm | ||
Contact Current Rating 1A | ||
Maximum Operating Temperature +85°C | ||
Dimensions 9.4(Dia.) x 9.76mm | ||
Operating Time Including Bounce 6ms | ||
Depth 9.4mm | ||
Height 9.76mm | ||
Length 9.76mm | ||
Life 10000000Cycles | ||
Operating Temperature Range -55 → +85°C | ||
Switching Voltage 28V dc | ||
- COO (Country of Origin):
- US
Teledyne RF Relay
The Teledyne 732 series PCB mount DPDT ultra-miniature RF basic relay is actuated with 12VDC coil voltage at a frequency of 1GHz. It has a low coil power dissipation and is designed for use when close PCB spacing is required. This relay has unique construction features and manufacturing techniques that provide excellent resistance to environmental extremes and overall high reliability. It is hermetically sealed and gives excellent switching performance from Dry Circuit to 1A. A typical RF application for this relay is in handheld radio transceivers which combine the features of good RF performance, small size and high reliability, making it a preferred method for transmitting/receive switching.
Features and Benefits
Coil power is 200mW
Coil resistance is 850ohm
Dimensions are 9.4mm x 9.76mm
Gold-plated contacts
High reliability
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
Coil resistance is 850ohm
Dimensions are 9.4mm x 9.76mm
Gold-plated contacts
High reliability
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
