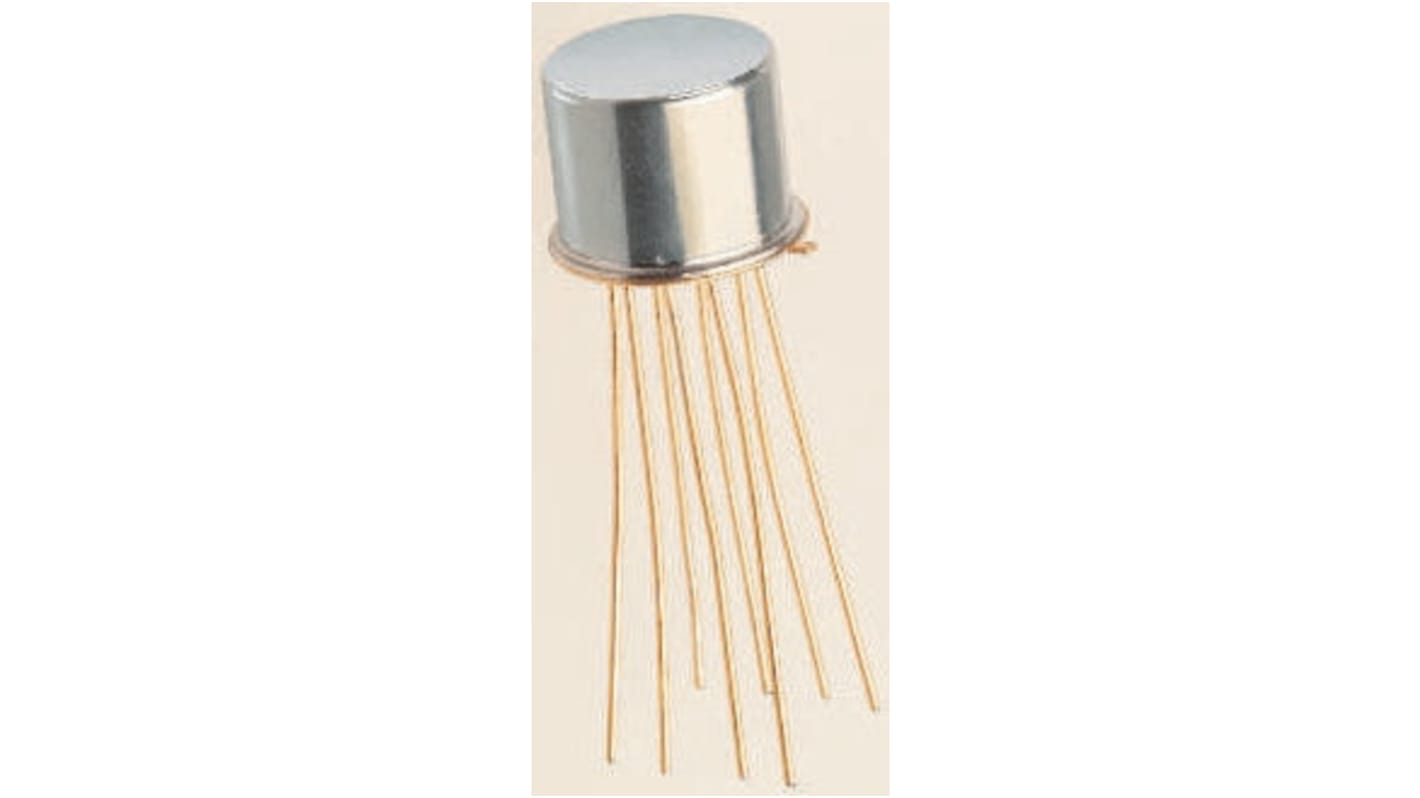

Teledyne PCB Mount RF Relay, 5V dc Coil, DPDT

Image representative of range

Save 13% when you buy 50 units

Subtotal (1 unit)*

£61.99

(exc. VAT)

£74.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 47 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£61.99
5 - 9£59.63
10 - 24£57.40
25 - 49£55.35
50 +£53.43

*price indicative

RS Stock No.:
220-958
Mfr. Part No.:
712-5
Brand:
Teledyne
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne

Relay Type

RF Relay

Coil Resistance

50Ω

Contact Resistance

150 mΩ

Contact Configuration

DPDT

Coil Voltage

5V dc

Mounting Type

PCB Mount

Contact Voltage

28V dc

Coil Power

450mW

Contact Material

Gold Plated

Dimensions

9.4(Dia.) x 6.99mm

Operating Time Including Bounce

4ms

Depth

9.4mm

Length

9.4mm

Contact Current Rating

1A

Life

1000000Cycles

Operating Temperature Range

-55 → +85°C

Switching Voltage

28V dc

Terminal Type

Through Hole

Relay Switching Classification

General Purpose Relay

Maximum Operating Temperature

+85°C

Height

6.99mm

Diameter

9.4mm

Minimum Operating Temperature

-55°C
