TE Connectivity L000694-80 Patch Omni-Directional GPS Antenna, GNSS
- RS Stock No.:
- 697-658
- Mfr. Part No.:
- L000694-80
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£46.77
(exc. VAT)
£56.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £46.77 |
| 5 + | £43.96 |
*price indicative
- RS Stock No.:
- 697-658
- Mfr. Part No.:
- L000694-80
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | GPS Antenna | |
| Internal/External | Internal | |
| Antenna Physical Form | Patch | |
| Antenna Mount Type | Through Hole | |
| Minimum Frequency | 1561MHz | |
| Directivity | Omni-Directional | |
| Antenna Internal Construction | Ceramic | |
| Maximum Frequency | 1602MHz | |
| RF Protocols | GNSS | |
| Gain | 5.5dB | |
| Standards/Approvals | No | |
| Series | L000694 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type GPS Antenna | ||
Internal/External Internal | ||
Antenna Physical Form Patch | ||
Antenna Mount Type Through Hole | ||
Minimum Frequency 1561MHz | ||
Directivity Omni-Directional | ||
Antenna Internal Construction Ceramic | ||
Maximum Frequency 1602MHz | ||
RF Protocols GNSS | ||
Gain 5.5dB | ||
Standards/Approvals No | ||
Series L000694 | ||

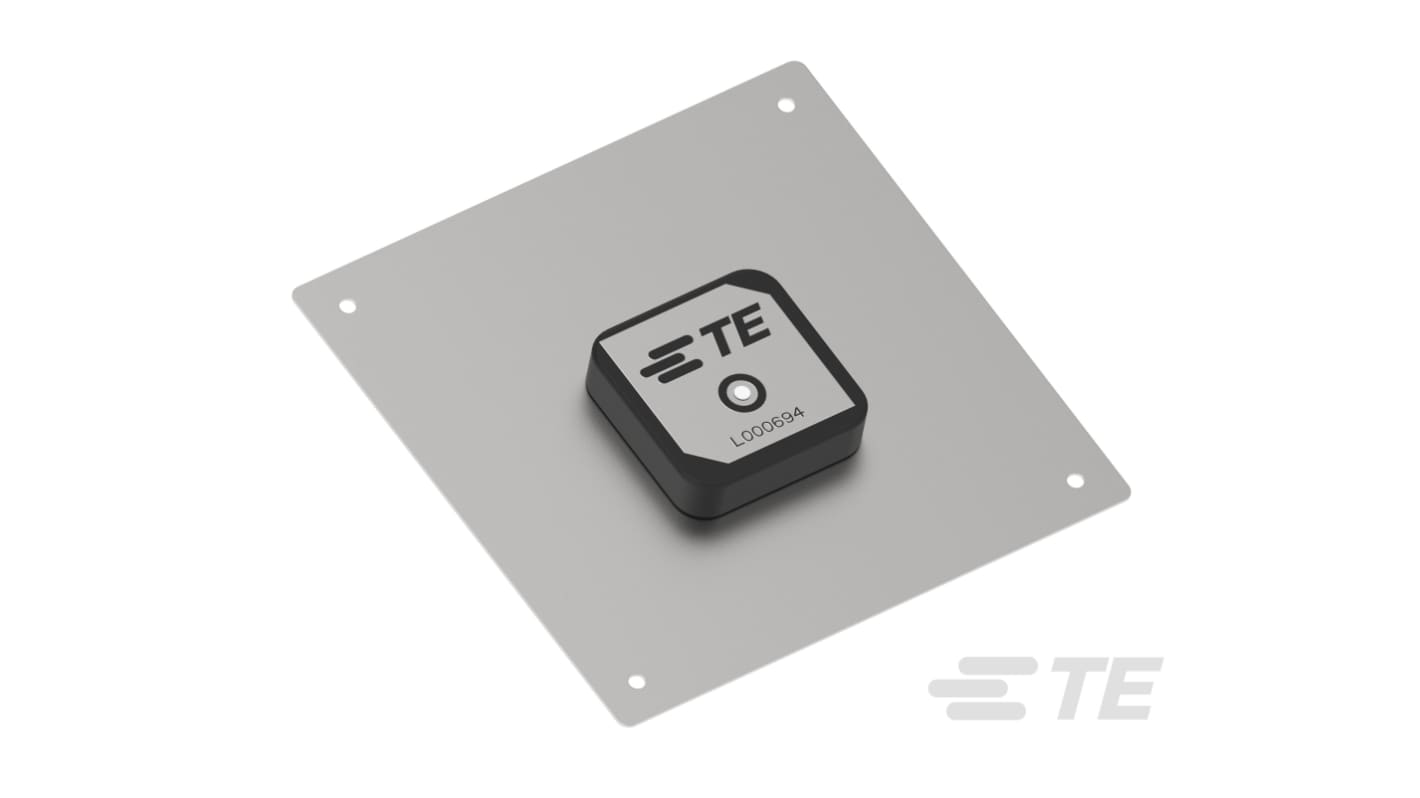

The TE Connectivity Ceramic patch antenna designed for GNSS applications, operating within the 1561 to 1602MHz frequency range. Its 25x25x6mm form factor allows for internal or embedded mounting, making it suitable for compact designs. The omnidirectional radiation pattern ensures consistent signal reception across various orientations.
Durable ceramic construction
Solder termination for secure and stable connections
REACH compliant
RoHS compliant
