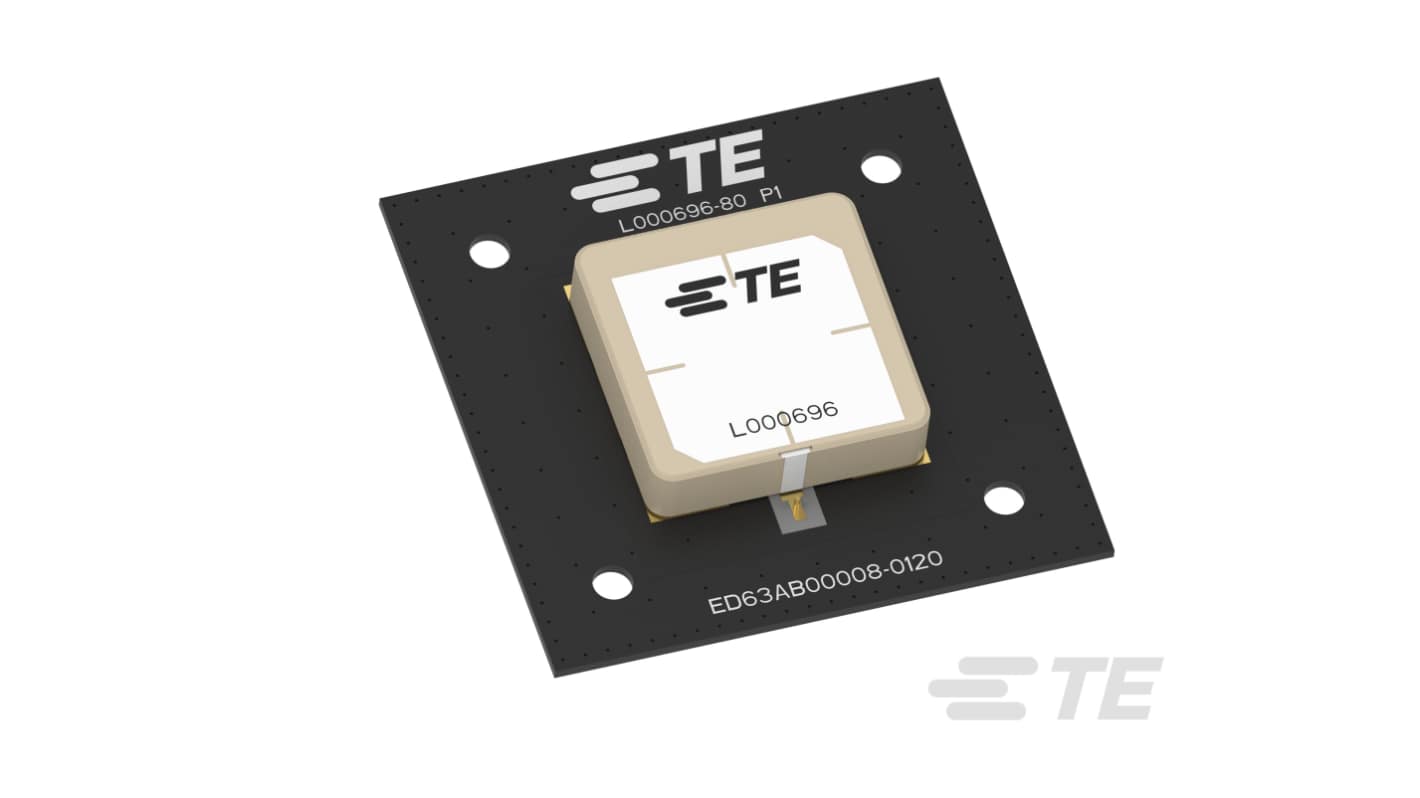

TE Connectivity L000696-80 Patch Omnidirectional GPS Antenna, GNSS
- RS Stock No.:
- 697-661
- Mfr. Part No.:
- L000696-80
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£53.35
(exc. VAT)
£64.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £53.35 |
| 5 + | £50.15 |
*price indicative
- RS Stock No.:
- 697-661
- Mfr. Part No.:
- L000696-80
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Internal/External | Internal | |
| Antenna Physical Form | Patch | |
| Antenna Mounting Type | SMD | |
| Antenna Directivity | Omnidirectional | |
| RF Protocols | GNSS | |
| Gain | 5.3dB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Length | 25mm | |
| Width | 25mm | |
| Height | 6mm | |
| Series | L000696 | |
| Dimensions | 25 x 25 x 6mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Internal/External Internal | ||
Antenna Physical Form Patch | ||
Antenna Mounting Type SMD | ||
Antenna Directivity Omnidirectional | ||
RF Protocols GNSS | ||
Gain 5.3dB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Length 25mm | ||
Width 25mm | ||
Height 6mm | ||
Series L000696 | ||
Dimensions 25 x 25 x 6mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity Ceramic patch antenna designed for GNSS applications, operating within the 1561 to 1602MHz frequency range. Its 25x25x6mm form factor allows for internal or embedded mounting, making it suitable for compact designs. The omnidirectional radiation pattern ensures consistent signal reception across various orientations.
Durable ceramic construction
Surface mounting
REACH compliant
RoHS compliant
Surface mounting
REACH compliant
RoHS compliant
