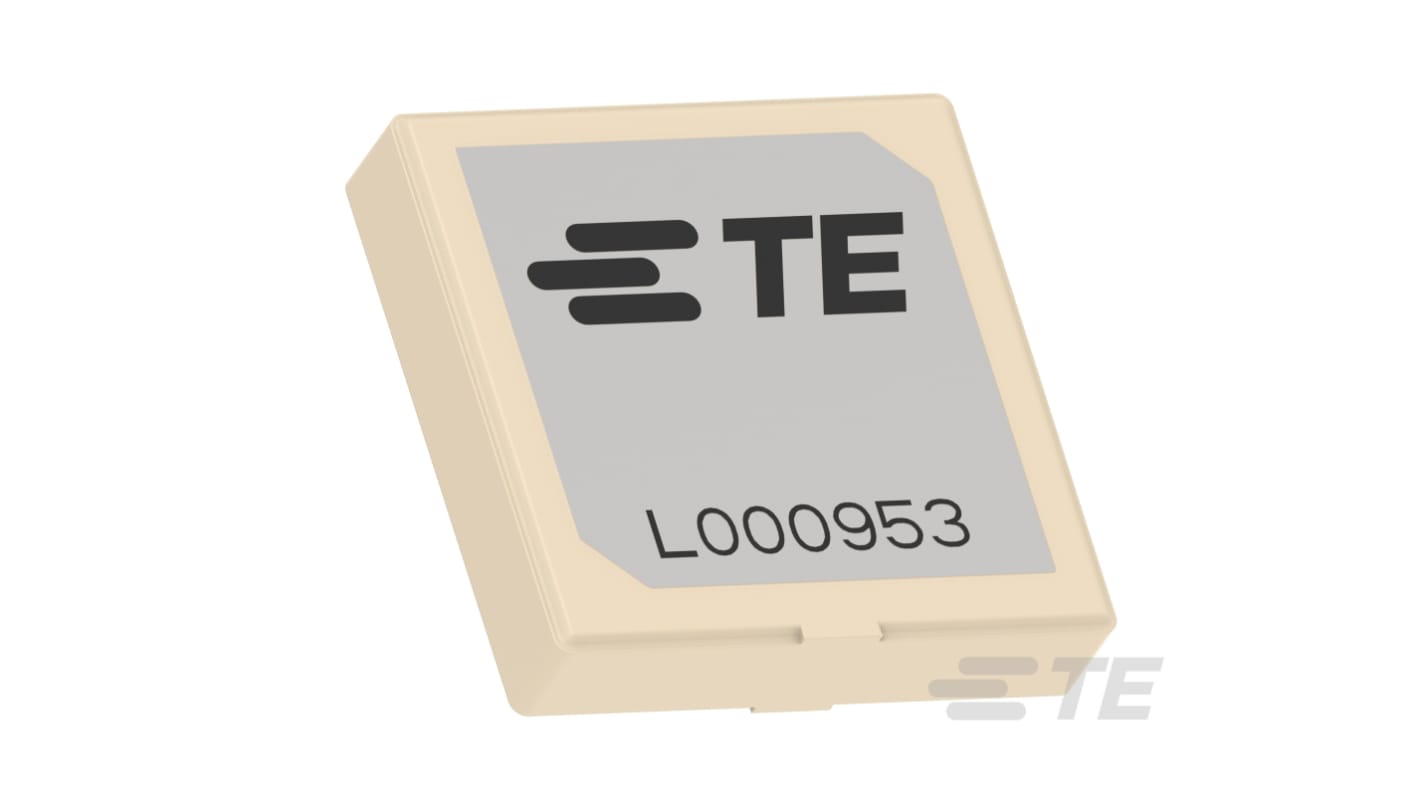

TE Connectivity L000953-01 Patch Omnidirectional GPS Antenna, GNSS
- RS Stock No.:
- 697-655
- Mfr. Part No.:
- L000953-01
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tape of 2 units)*
£3.77
(exc. VAT)
£4.524
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,800 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
2 - 18 | £1.885 | £3.77 |
20 - 98 | £1.85 | £3.70 |
100 - 198 | £1.79 | £3.58 |
200 + | £1.68 | £3.36 |
*price indicative
- RS Stock No.:
- 697-655
- Mfr. Part No.:
- L000953-01
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Internal/External | Internal | |
Antenna Physical Form | Patch | |
Antenna Mounting Type | SMD | |
Antenna Directivity | Omnidirectional | |
RF Protocols | GNSS | |
Gain | 4.3dB | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +105°C | |
Dimensions | 18 x 18 x 4mm | |
Height | 4mm | |
Width | 18mm | |
Series | L000953 | |
Length | 18mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Internal/External Internal | ||
Antenna Physical Form Patch | ||
Antenna Mounting Type SMD | ||
Antenna Directivity Omnidirectional | ||
RF Protocols GNSS | ||
Gain 4.3dB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Dimensions 18 x 18 x 4mm | ||
Height 4mm | ||
Width 18mm | ||
Series L000953 | ||
Length 18mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity Ceramic patch antenna designed for GNSS applications, operating within the 1575 to 1602MHz frequency range. Its 18x18x4mm form factor allows for internal or embedded mounting, making it ideal for compact designs. The omnidirectional radiation pattern ensures consistent signal reception across various orientations.
Durable ceramic construction
Surface mounting
REACH compliant
RoHS compliant
Surface mounting
REACH compliant
RoHS compliant
