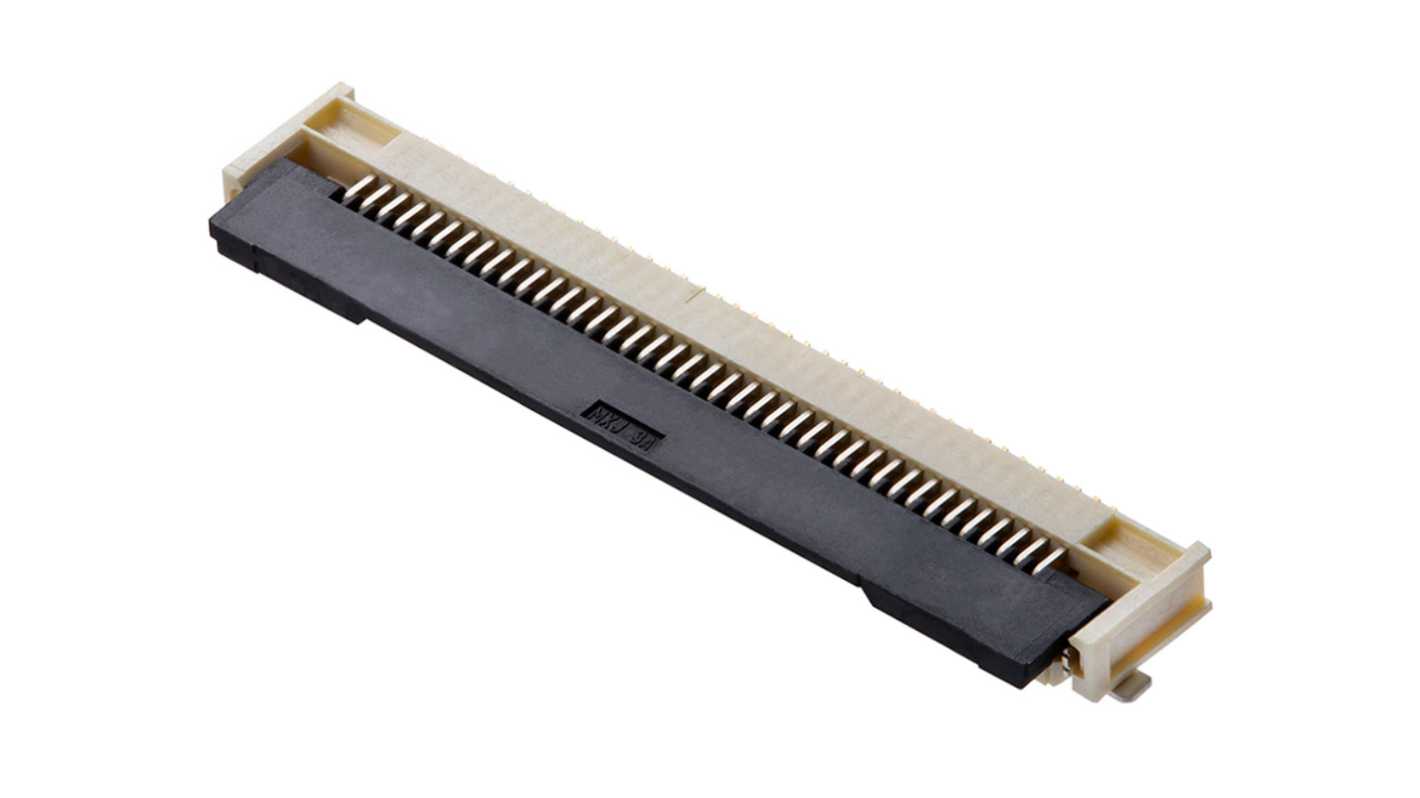

Molex, 505110-7091 0.5 mm Pitch 70 Way Right Angle FPC Connector, Bottom

View all FPC Connectors

Subtotal (1 reel of 3000 units)*

£3,262.30

(exc. VAT)

£3,914.76

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£3,262.30£1.087

*price indicative

RS Stock No.:
520-495
Distrelec Article No.:
304-56-560
Mfr. Part No.:
505110-7091
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

FPC Connector

Number of Contacts

70

Contact Material

Phosphor Bronze

Current

0.5A

Pitch

0.5mm

Mount Type

Surface Mount

Contact Position

Bottom

Termination Type

Bottom

Orientation

Right Angle

Locking Mechanism

Yes

Voltage

5 V

Series

505110-7091

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Standards/Approvals

REACH SVHC, IPC 1752A Class D, IPC 1752A Class C, IEC-62474 chemSHERPA, IEC 61249-2-21, GADSL/IMDS, EU RoHS, EU ELV

Contact Plating

Gold over Nickel

Housing Material

Liquid Crystal Polymer

COO (Country of Origin):
JP
The TE Connectivity FFC/FPC Connector from the FD19 Series combines innovative design with reliable functionality. Engineered for seamless integration, it features a right-angle configuration that saves space while accommodating 70 circuits with precision. The connector's durable construction includes high-quality materials, specifically designed to withstand extensive use, making it ideal for various electronic applications. With a mated height of just 1.90mm, this connector ensures a low-profile solution, enhancing your device's design without compromising connectivity. Its low-halogen status and compliance with leading environmental standards reflect a commitment to sustainability, ensuring that it meets the growing demand for eco-friendly products in technology.

Offers a compact design that aids in space-saving projects

Utilises gold over nickel plating for optimal conductivity and durability

Features a front flip actuator for easy operation and better accessibility

Complies with various industry standards, ensuring reliability and performance

Constructed from liquid crystal polymer for improved thermal stability

Designed for use with multiple jumper configurations, providing versatility

Rated for a wide operating temperature range, ensuring functionality in diverse environments

Embossed tape on reel packaging enables hassle-free handling and installation
