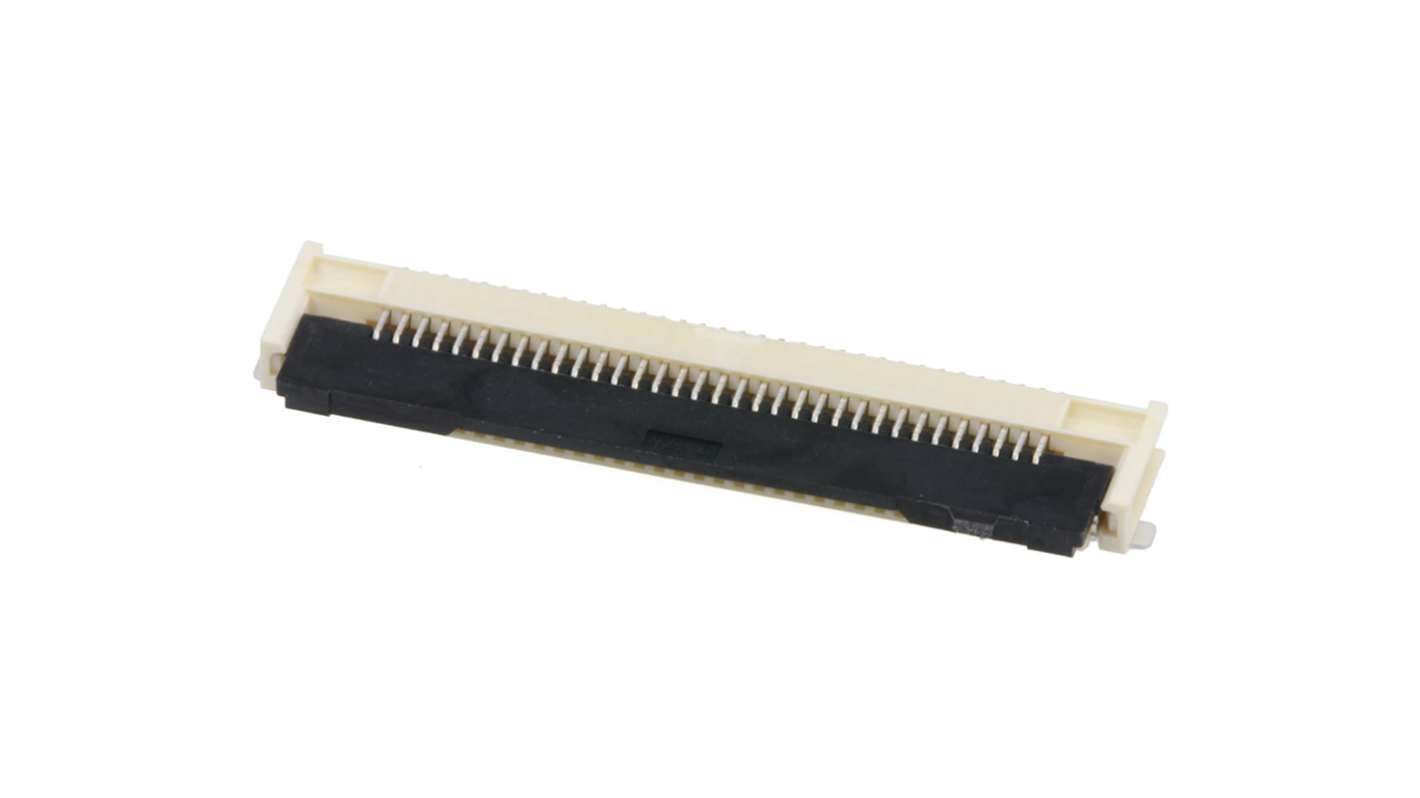

Molex, 505110-3491 0.5 mm Pitch 34 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 478-690
- Distrelec Article No.:
- 304-62-437
- Mfr. Part No.:
- 505110-3491
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£2,766.77
(exc. VAT)
£3,320.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,766.77 | £0.922 |
*price indicative
- RS Stock No.:
- 478-690
- Distrelec Article No.:
- 304-62-437
- Mfr. Part No.:
- 505110-3491
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 34 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Termination Type | Bottom | |
| Contact Position | Bottom | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 5 V | |
| Series | 505110-3491 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IPC 1752A Class D, IPC 1752A Class C, IEC 61249-2-21, EU RoHS, EU ELV | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 34 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Termination Type Bottom | ||
Contact Position Bottom | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 5 V | ||
Series 505110-3491 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IPC 1752A Class D, IPC 1752A Class C, IEC 61249-2-21, EU RoHS, EU ELV | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- JP
The TE Connectivity FFC/FPC Connector, belonging to the FD19 Series, is engineered for reliable performance in compact electronic applications. This connector features a 0.50mm pitch and delivers superior connectivity with its right-angle design and bottom contact configuration. With a reduced height of 1.90mm, it fits seamlessly into space-constrained designs. Crafted with high-quality materials, including gold-over-nickel plating, it ensures robust durability and exceptional conductivity. The black actuator adds a sleek touch while enhancing operational ease, making it suitable for a wide range of electronic devices where performance and reliability are paramount.
Low-halogen construction promotes environmental compliance
Supports up to 34 circuits for versatile applications
Designed for surface mounting to facilitate ease of installation
Front flip actuator allows for straightforward mating action
Durability rating of 20 mating cycles for long-lasting use
Beige resin colour offers visual differentiation in assemblies
Polarization feature aids in proper orientation during installation
Compatible with a variety of 0.50mm pitch FFC and FPC cables
Lightweight design optimises efficiency in compact spaces
Temperature range supports operation in diverse environments
