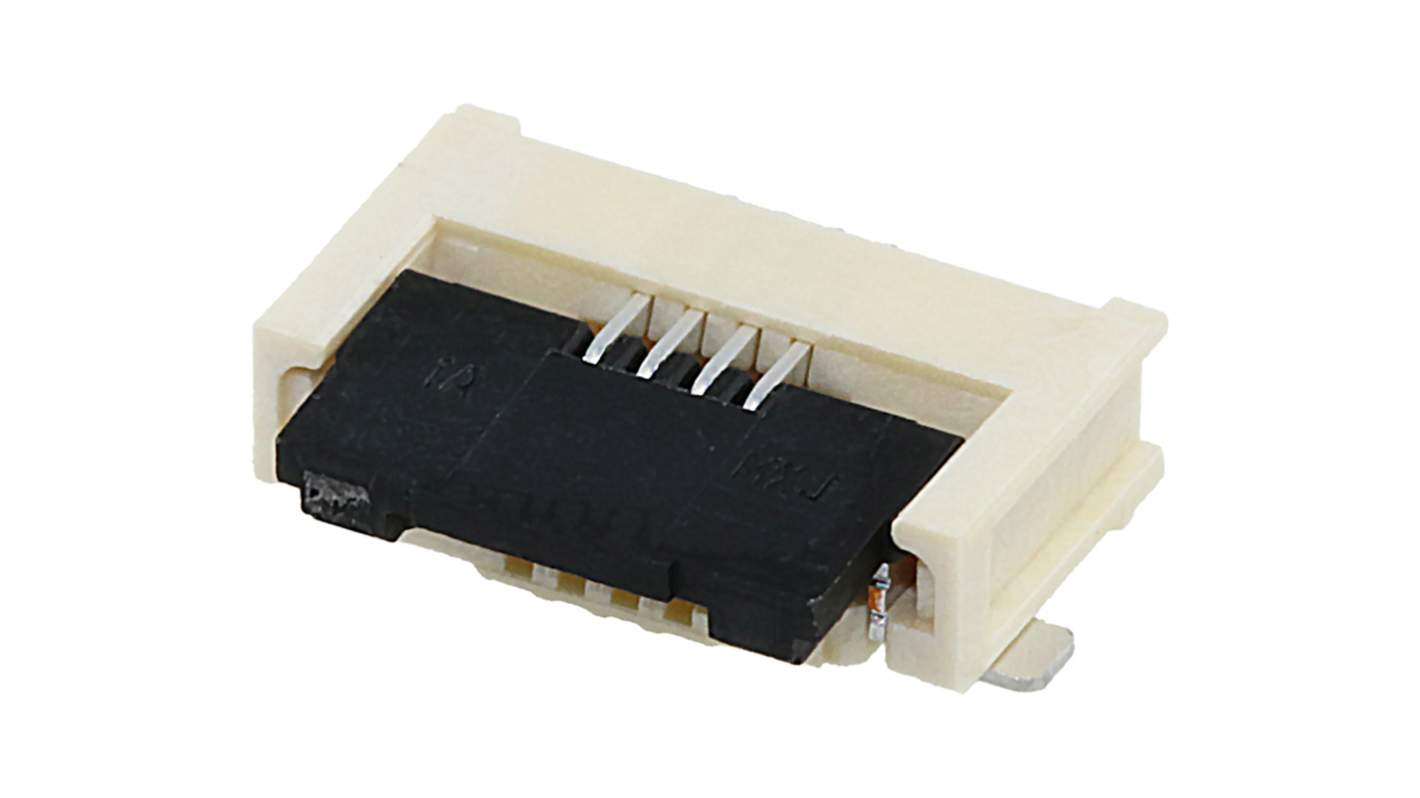

Molex, 505278-1733 0.5 mm Pitch 17 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 506-058
- Mfr. Part No.:
- 505278-1733
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£1,236.32
(exc. VAT)
£1,483.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,236.32 | £0.412 |
*price indicative
- RS Stock No.:
- 506-058
- Mfr. Part No.:
- 505278-1733
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 17 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Termination Type | Bottom | |
| Contact Position | Bottom | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 5 V | |
| Series | 505278-1733 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC-62474, IPC 1752A Class C, IPC 1752A Class D | |
| Contact Plating | Tin Silver Bismuth | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 17 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Termination Type Bottom | ||
Contact Position Bottom | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 5 V | ||
Series 505278-1733 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC-62474, IPC 1752A Class C, IPC 1752A Class D | ||
Contact Plating Tin Silver Bismuth | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- VN
The TE Connectivity 0.50mm Pitch FFC/FPC Connector sets a new standard for compact, reliable connectivity in electronic applications. Designed with meticulous attention to performance and durability, it features a right-angle configuration that allows for efficient space utilisation on PCBs. This connector not only supports a seamless integration into various devices but also meets high environmental standards, ensuring compliance with regulatory requirements. With its low height and space-saving design, this connector excels in high-density environments, making it the ideal choice for advanced electronics requiring optimal functionality without sacrificing design coherence. Whether it's embedded systems or consumer electronics, this connector delivers unparalleled quality and performance, ensuring trusted connections for your most critical applications.
Utilises a front flip actuator for intuitive operation
Perfectly designed for high-density PCB layouts
Constructed with Phosphor Bronze to ensure reliability
Provided in embossed tape on reel for easy handling
Supports a broad temperature range suitable for diverse operating conditions
Offers a durable mating cycle lifespan of up to 20 cycles
Compact dimensions ideal for applications with limited space
Maintains excellent retention with PCB mounting features
