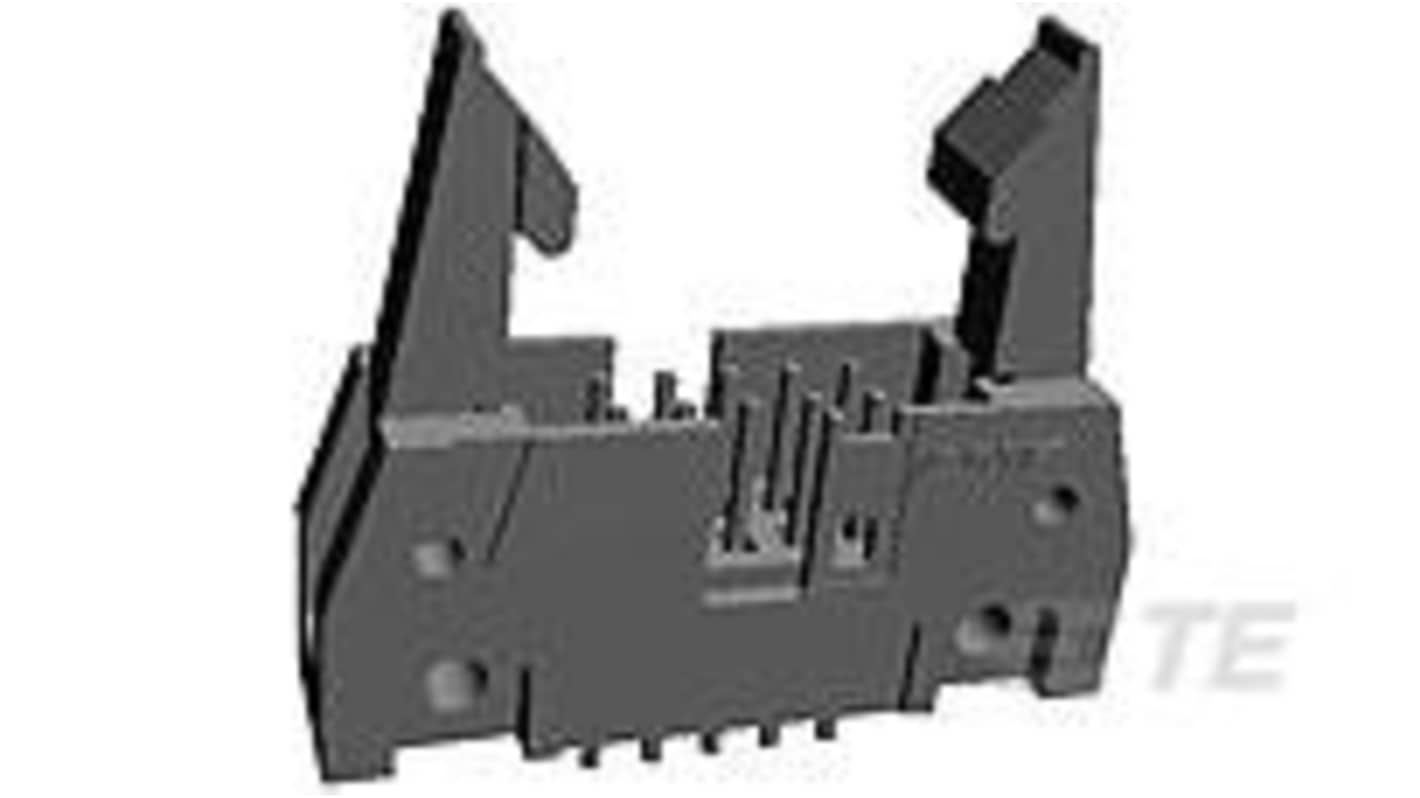

TE Connectivity, 5499911-9 2.54 mm Pitch 40 Way Vertical FPC Connector, Solder
- RS Stock No.:
- 482-198
- Distrelec Article No.:
- 304-55-779
- Mfr. Part No.:
- 5499911-9
- Brand:
- TE Connectivity
Subtotal (1 tray of 32 units)*
£154.62
(exc. VAT)
£185.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £154.62 | £4.832 |
*price indicative
- RS Stock No.:
- 482-198
- Distrelec Article No.:
- 304-55-779
- Mfr. Part No.:
- 5499911-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 40 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze, Brass | |
| Sub Type | Ribbon Cable Connector | |
| Pitch | 2.54mm | |
| Current | 1A | |
| Mount Type | Board | |
| Contact Position | Pin | |
| Termination Type | Solder | |
| Orientation | Vertical | |
| Voltage | 250 V | |
| Series | 5499911-9 | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | China RoHS 2 Directive MIIT Order No 32, 2016, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, EU ELV Directive 2000/53/EC Compliant | |
| Number of Rows | 2 | |
| Contact Plating | Gold over Tin | |
| Housing Material | Polyester | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 40 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze, Brass | ||
Sub Type Ribbon Cable Connector | ||
Pitch 2.54mm | ||
Current 1A | ||
Mount Type Board | ||
Contact Position Pin | ||
Termination Type Solder | ||
Orientation Vertical | ||
Voltage 250 V | ||
Series 5499911-9 | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals China RoHS 2 Directive MIIT Order No 32, 2016, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, EU ELV Directive 2000/53/EC Compliant | ||
Number of Rows 2 | ||
Contact Plating Gold over Tin | ||
Housing Material Polyester | ||
- COO (Country of Origin):
- CN
The TE Connectivity Wire-to-board connector is engineered for reliable connectivity in various applications. Featuring a 40-position design with a 2.54 mm centreline and vertical orientation, it excels in scenarios where space and efficiency are paramount. This versatile component is built for through-hole soldering, allowing for straightforward integration within a printed circuit board. The AMP-LATCH universal headers ensure secure connections, making it an ideal choice for ribbon cable assemblies. Its robust construction withstands operational voltage of up to 250 VAC and operates effectively across a wide temperature range, from -65°C to 105°C. Designed for easy alignment and secure mating, this product is a testament to precision engineering in modern connectivity solutions.
Compatible with a variety of ribbon cable connectors
Ensures PCB contact area is plated for optimal conductivity
Exhibits excellent insulation resistance significantly enhancing performance
Provides a low halogen content, conforming to environmental standards
Comes in packaging suitable for efficient stock management
