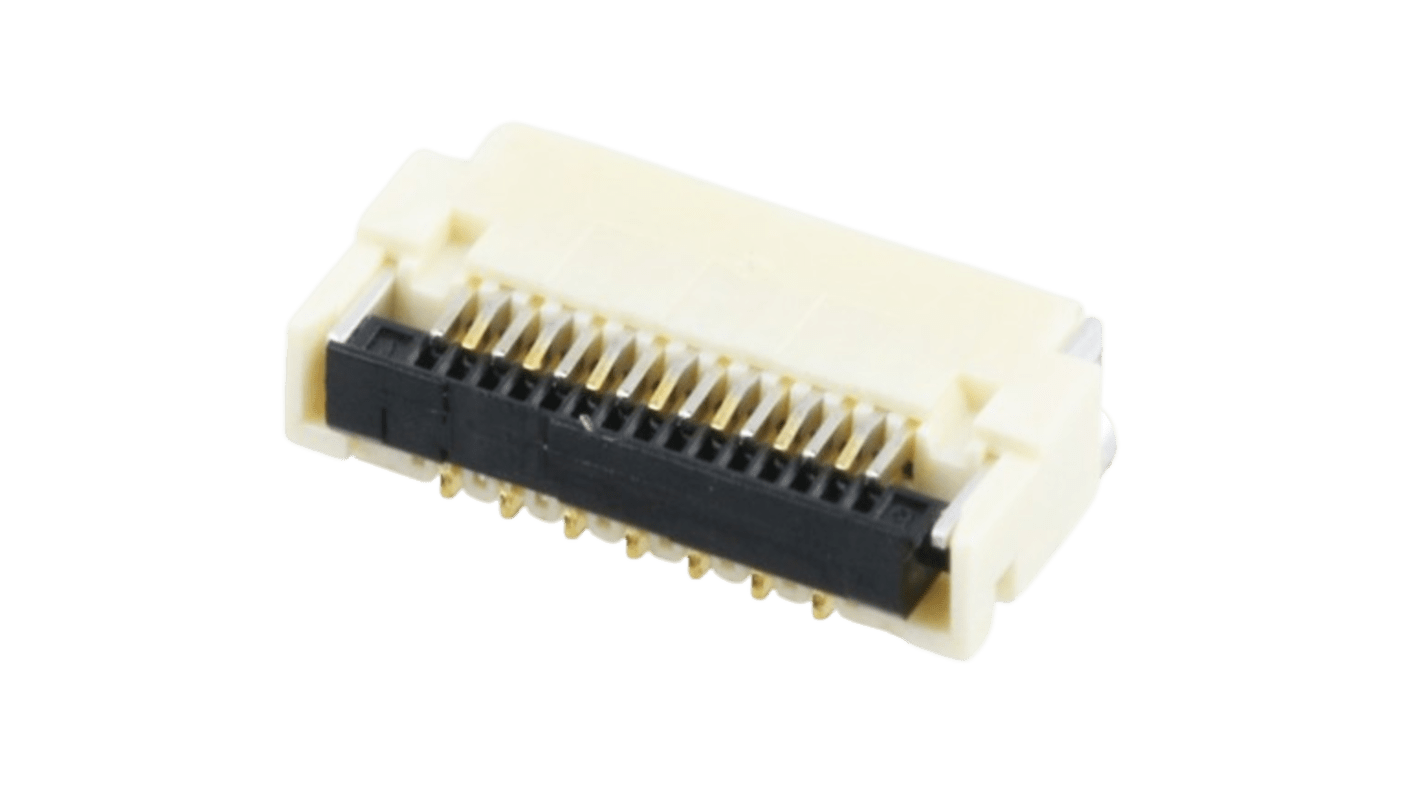

Molex, 502598-2993 0.3 mm Pitch 29 Way Right Angle FPC Connector
- RS Stock No.:
- 476-554
- Distrelec Article No.:
- 304-56-468
- Mfr. Part No.:
- 502598-2993
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£2,642.88
(exc. VAT)
£3,171.46
(inc. VAT)
Add 1 reel to get free delivery
Temporarily out of stock
- Shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,642.88 | £0.881 |
*price indicative
- RS Stock No.:
- 476-554
- Distrelec Article No.:
- 304-56-468
- Mfr. Part No.:
- 502598-2993
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 29 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.3mm | |
| Current | 0.3A | |
| Mount Type | Surface | |
| Contact Position | Dual | |
| Orientation | Right Angle | |
| Voltage | 5 V | |
| Series | 502598-2993 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 29 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.3mm | ||
Current 0.3A | ||
Mount Type Surface | ||
Contact Position Dual | ||
Orientation Right Angle | ||
Voltage 5 V | ||
Series 502598-2993 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- JP
The TE Connectivity connector is designed for maximum efficiency and reliability in high-performance applications. Featuring the unique back flip design, it ensures secure connections while maintaining a compact footprint. With a pitch of 0.30mm and a right-angle orientation, it streamlines installation processes, making it ideal for environments where space is at a premium. The connector is equipped with dual contact style circuitry, supporting 29 circuits for enhanced data transmission. Its robust construction, compliant with industry standards, ensures it withstands the rigours of daily use, while the low-halogen materials contribute to environmental sustainability. Overall, this connector offers an optimal blend of performance, durability, and eco-friendliness.
Back flip actuator type enhances ease of use during mating
Available in both black and white resin, catering to diverse aesthetic needs
Durability ratings indicate resilience with up to 10 mating cycles
Ability to accommodate high temperatures, operating effectively between -40° to +105°C
Surface mount packaging allows for efficient handling and assembly
Supports a maximum current of 0.3A, suitable for various electronic applications
Polarised to PCB for a secure and error-free installation
Optimally designed for FPC connection types, making it versatile across multiple devices
