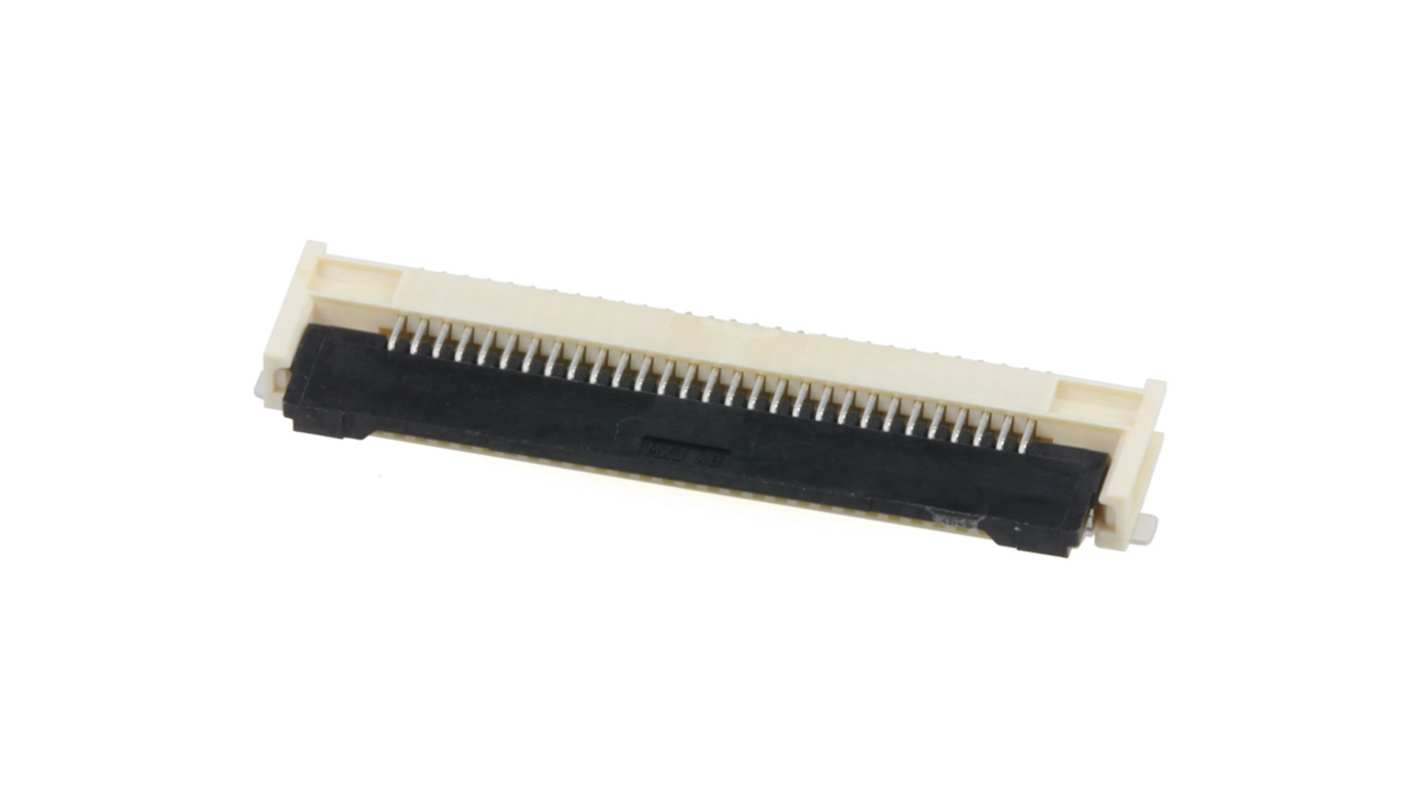

Molex, 505110-2991 0.5 mm Pitch 29 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 482-397
- Distrelec Article No.:
- 304-62-433
- Mfr. Part No.:
- 505110-2991
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£2,766.77
(exc. VAT)
£3,320.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,766.77 | £0.922 |
*price indicative
- RS Stock No.:
- 482-397
- Distrelec Article No.:
- 304-62-433
- Mfr. Part No.:
- 505110-2991
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 29 | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Contact Position | Bottom | |
| Termination Type | Bottom | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 5 V | |
| Minimum Operating Temperature | -40°C | |
| Series | 505110-2991 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EU RoHS, EU ELV, IEC 61249-2-21, IPC 1752A Class C, IPC 1752A Class D, REACH SVHC | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 29 | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Contact Position Bottom | ||
Termination Type Bottom | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 5 V | ||
Minimum Operating Temperature -40°C | ||
Series 505110-2991 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EU RoHS, EU ELV, IEC 61249-2-21, IPC 1752A Class C, IPC 1752A Class D, REACH SVHC | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- JP
The TE Connectivity FFC/FPC connector offers a reliable solution for various electronic applications. Designed with a 0.50mm pitch, it ensures efficient connectivity and space-saving integration in compact devices. This right-angle connector features bottom contact for simplified PCB mounting and enhanced accessibility in tight spaces. With a robust durability rating of 20 mating cycles, it withstands repeated connections without compromising performance. Its beige resin colour and sleek design not only contribute to the aesthetic appeal but also ensure compatibility with standard industry requirements. Moreover, the gold over nickel plating enhances conductivity while protecting against corrosion, making it suitable for a wide range of operating environments.
Designed for seamless integration with FFC/FPC applications
Front flip actuator for user-friendly operation
Low-halogen materials contribute to environmental compliance
Embossed tape on reel packaging ensures convenient storage and handling
Surface mount technology facilitates easy PCB installation
Polarised design guarantees correct orientation during assembly
Flexible mating interfaces adapt to various wire types
Resistance to high temperatures extends operational lifespan
