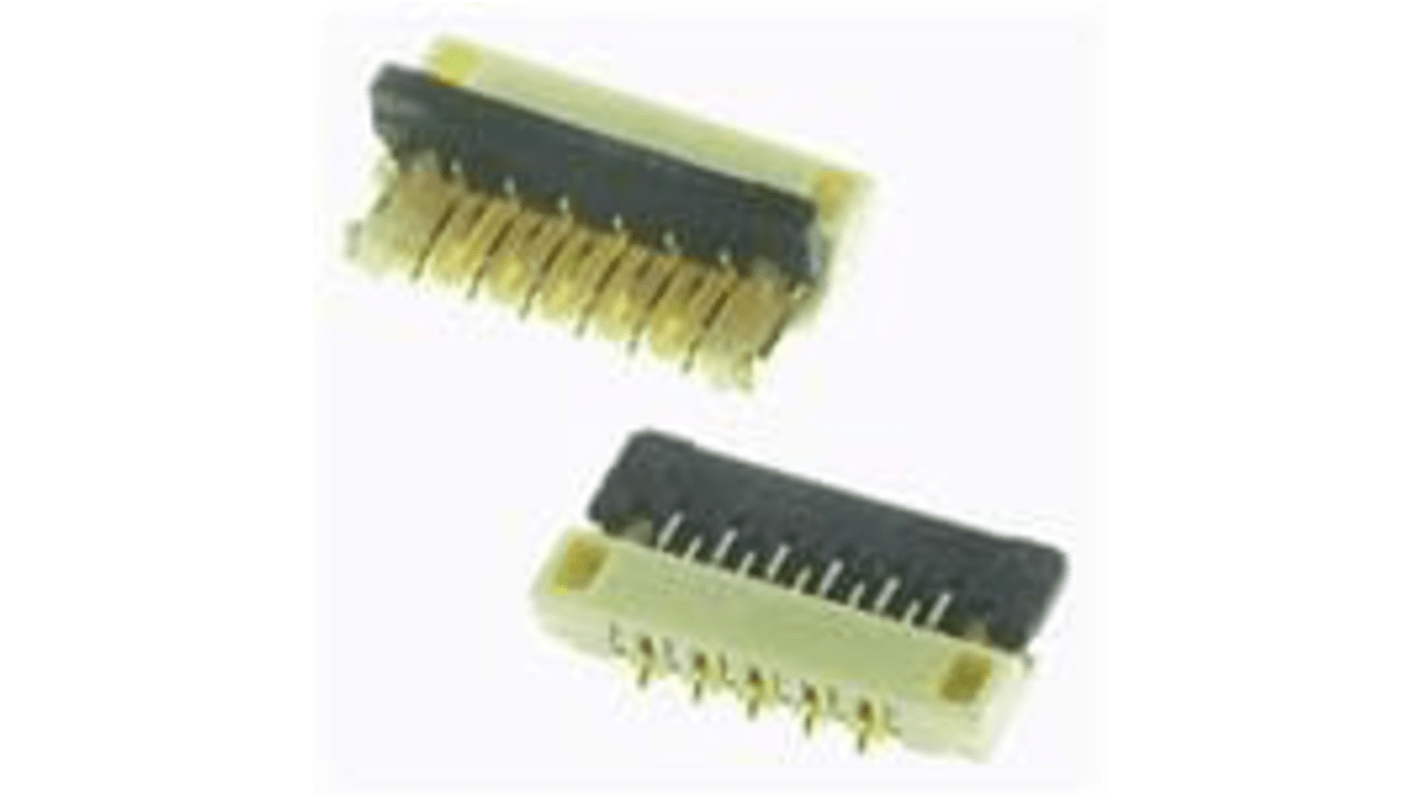

Molex, 503566, 503566-1100 0.3mm Pitch 11 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 476-515
- Mfr. Part No.:
- 503566-1100
- Brand:
- Molex
Subtotal (1 pack of 3000 units)*
£256.03
(exc. VAT)
£307.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £256.03 | £0.085 |
*price indicative
- RS Stock No.:
- 476-515
- Mfr. Part No.:
- 503566-1100
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 11 | |
Contact Material | Phosphor Bronze | |
Pitch | 0.3mm | |
Mounting Type | Surface Mount | |
Termination Type | Bottom | |
Body Orientation | Right Angle | |
Series | 503566 | |
Series Number | 503566-1100 | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 11 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.3mm | ||
Mounting Type Surface Mount | ||
Termination Type Bottom | ||
Body Orientation Right Angle | ||
Series 503566 | ||
Series Number 503566-1100 | ||
- COO (Country of Origin):
- JP
The TE Connectivity FPC connector is designed for high-performance applications, ensuring seamless connectivity with its 0.30mm pitch. Built with precision, it accommodates 11 circuits for versatility in various electronic devices. The connectors mated height of 0.95mm optimally balances compactness and functionality. Engineered for durability, it boasts a maximum of 10 mating cycles, making it suitable for demanding environments. The combination of phosphor bronze and gold over nickel plating enhances both conductivity and resilience. Users can count on reliable performance across a wide temperature range, ensuring the connector remains functional in a variety of conditions. This product is not only compliant with industry standards such as RoHS and REACH, but it also features a low-halogen design, contributing to sustainability efforts.
Offers excellent conductivity with gold over nickel plating
Engineered for a long lifespan with a durability of up to 10 mating cycles
Compact design facilitates efficient use in space-constrained applications
Compatible with surface mount technology for easy integration
Meets stringent industry compliance standards for safety and performance
Resilient materials withstand extreme temperature variations
Designed specifically for FPC wire/cable types, enhancing compatibility
Engineered for a long lifespan with a durability of up to 10 mating cycles
Compact design facilitates efficient use in space-constrained applications
Compatible with surface mount technology for easy integration
Meets stringent industry compliance standards for safety and performance
Resilient materials withstand extreme temperature variations
Designed specifically for FPC wire/cable types, enhancing compatibility
