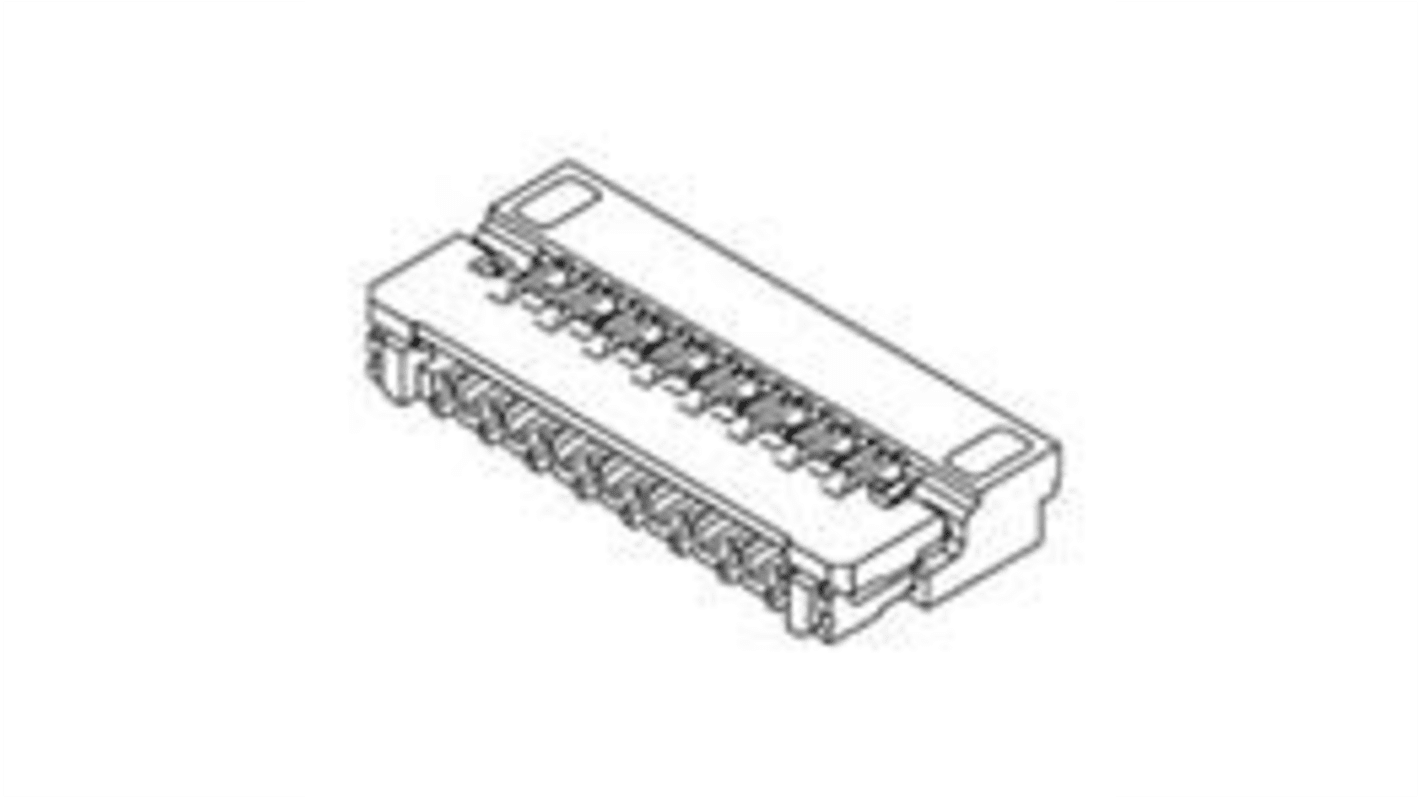

Molex, 503566-1300 0.3 mm Pitch 41 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 482-334
- Distrelec Article No.:
- 304-62-373
- Mfr. Part No.:
- 503566-4100
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£1,148.00
(exc. VAT)
£1,377.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,148.00 | £0.383 |
*price indicative
- RS Stock No.:
- 482-334
- Distrelec Article No.:
- 304-62-373
- Mfr. Part No.:
- 503566-4100
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 41 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Current | 0.2A | |
| Pitch | 0.3mm | |
| Mount Type | Surface Mount | |
| Contact Position | Bottom | |
| Termination Type | Bottom | |
| Orientation | Right Angle | |
| Voltage | 5 V | |
| Minimum Operating Temperature | -40°C | |
| Series | 503566-1300 | |
| Maximum Operating Temperature | 105°C | |
| Number of Rows | 1 | |
| Standards/Approvals | UL E29179 | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Polyester Alloy | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 41 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Current 0.2A | ||
Pitch 0.3mm | ||
Mount Type Surface Mount | ||
Contact Position Bottom | ||
Termination Type Bottom | ||
Orientation Right Angle | ||
Voltage 5 V | ||
Minimum Operating Temperature -40°C | ||
Series 503566-1300 | ||
Maximum Operating Temperature 105°C | ||
Number of Rows 1 | ||
Standards/Approvals UL E29179 | ||
Contact Plating Gold over Nickel | ||
Housing Material Polyester Alloy | ||
- COO (Country of Origin):
- JP
The TE Connectivity FPC connector offers a compact solution for seamless connectivity in various electronic applications. Designed with a 0.30mm pitch, it accommodates up to 41 circuits in a low-profile form factor, ensuring that space constraints are easily managed without compromising performance. The durable construction features a phosphor bronze metal material with gold plating over nickel, providing excellent conductivity and reliability during use. This connector’s robust design supports a wide temperature range, making it ideal for demanding environments. With a combination of low-halogen and halogen-free materials, this connector meets strict environmental compliance standards, contributing to greener electronics. With its surface mount capabilities, the connector can be easily integrated into PCB assemblies, making it the ideal choice for modern manufacturing processes.
Accommodates a high density of connections in tight spaces
Constructed from durable materials for long-lasting performance
Meets stringent environmental standards for responsible manufacturing
Designed for easy integration into modern electronic systems
Supports a wide temperature range for diverse applications
Features a right-angle orientation for optimal PCB layout flexibility
