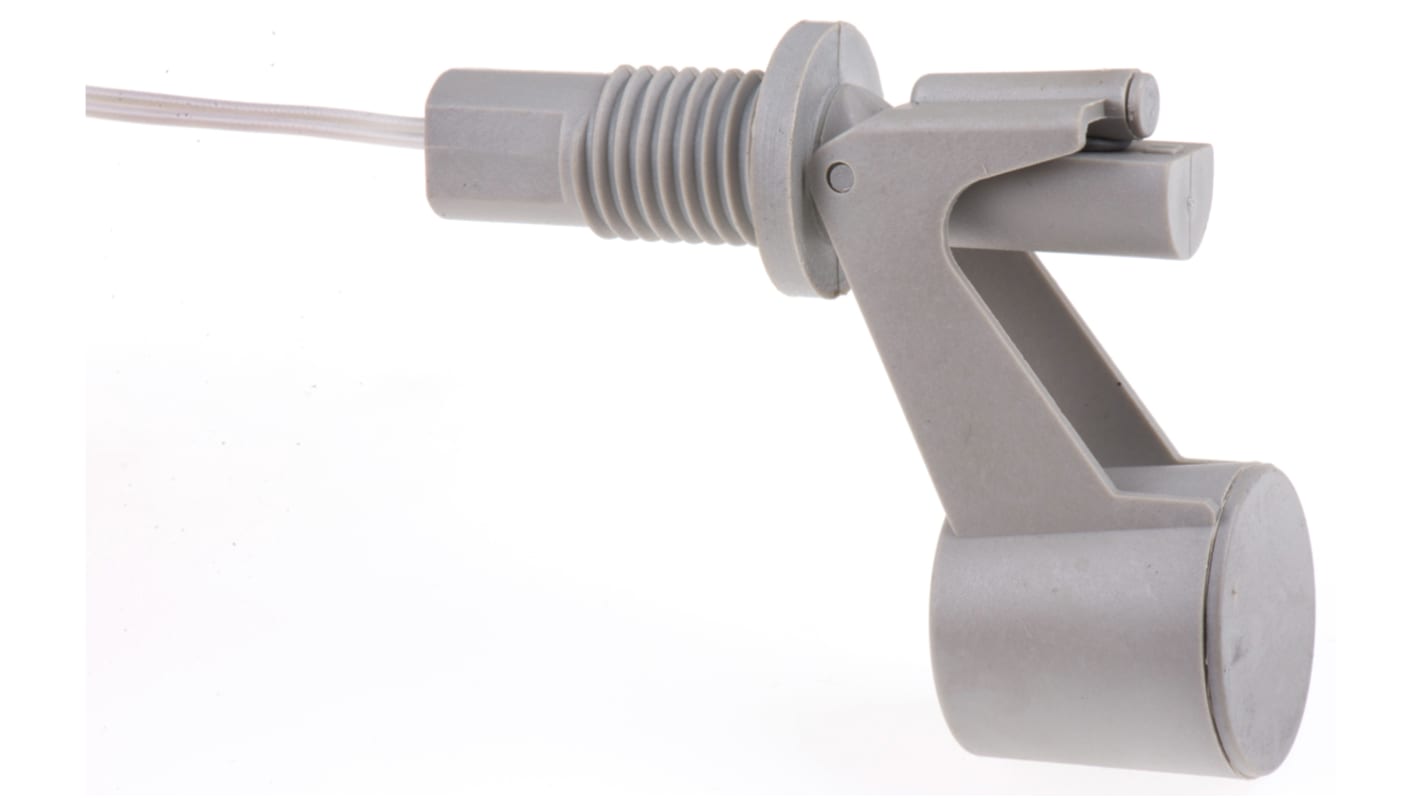

Sensata Cynergy3 RSF10 Series Direct Mounting Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NO/NC, 240V ac
- RS Stock No.:
- 288-9338
- Distrelec Article No.:
- 303-99-293
- Mfr. Part No.:
- RSF16Y050TG
- Brand:
- Sensata / Cynergy3
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£28.71
(exc. VAT)
£34.45
(inc. VAT)
- RS Stock No.:
- 288-9338
- Distrelec Article No.:
- 303-99-293
- Mfr. Part No.:
- RSF16Y050TG
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sensata / Cynergy3 | |
Device Type | Float | |
Mounting Type | Direct Mounting | |
Switch Output | NO/NC | |
Body Material | Polyphenylene Sulfide | |
Cable Length | 500mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +120°C | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 120V | |
Maximum Current | 600 mA | |
Gasket Material | Silicone, Viton | |
Series | RSF10 | |
Standards Met | NSF Approved, WRAS | |
Select all | ||
---|---|---|
Brand Sensata / Cynergy3 | ||
Device Type Float | ||
Mounting Type Direct Mounting | ||
Switch Output NO/NC | ||
Body Material Polyphenylene Sulfide | ||
Cable Length 500mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +120°C | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 120V | ||
Maximum Current 600 mA | ||
Gasket Material Silicone, Viton | ||
Series RSF10 | ||
Standards Met NSF Approved, WRAS | ||
- COO (Country of Origin):
- CN
Drop Float Switch
A unique design switch which keeps the pivot area free from the fluid making them ideal for use in hot drink vending machines etc. Drop float types for monitoring upper level and extended drop float types for monitoring lower level in a tank.
Float positioned below the switch in N/C position
Switch opens well before liquid level reaches the float pivot
Polypropylene and PPS are WRAS approved, products for use in hot and cold water
UL recognised (excludes 228-1964)
Switch opens well before liquid level reaches the float pivot
Polypropylene and PPS are WRAS approved, products for use in hot and cold water
UL recognised (excludes 228-1964)
Note
Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.
Supplied with
0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).




Sensata Cynergy3 Direct Mounting Float Switch, 500mm Cable Length, 600mA - RSF10 Series - RSF16Y050TG
Use this direct mounting float switch from Sensata Cynergy3 to monitor liquid levels in small tanks. The component's design keeps its pivot area free from fluids for efficient operation. It has a polyphenylene sulfide (PPS) body material that offers excellent thermal resistance, making it suitable for use in high-temperature environments.
This float switch is energy-efficient, as it consumes just 600mA (milliamperes) of current. It's useful in a variety of domestic and commercial applications, especially those that involve monitoring hot liquids.
This float switch is energy-efficient, as it consumes just 600mA (milliamperes) of current. It's useful in a variety of domestic and commercial applications, especially those that involve monitoring hot liquids.
Features & Benefits
• Wide operating temperature range of -20°C to +120°C for use in harsh conditions
• Cable length of 500mm for flexible access to the bottom of tanks or containers
• Viton gasket to provide proper sealing and prevent leakages
• Direct mounting method for quick and simple installation
• Cable length of 500mm for flexible access to the bottom of tanks or containers
• Viton gasket to provide proper sealing and prevent leakages
• Direct mounting method for quick and simple installation
How can I ensure this float switch operates reliably?
To prevent the float switch from failing, ensure that the float switch is properly configured and maintained. You should also ensure it's used only for applications it's rated for to maintain proper safety and functioning.
