Sensata Cynergy3 RSF80 Series Horizontal Polypropylene Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

View all Float Switches

Subtotal (1 unit)*

£15.52

(exc. VAT)

£18.62

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 32 left, ready to ship
  • Plus 7 left, ready to ship from another location
  • Plus 67 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£15.52

*price indicative

RS Stock No.:
869-7598
Mfr. Part No.:
RSF84YP
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Device Type

Float

Mounting Type

Horizontal

Switch Output

NO/NC

Body Material

Polypropylene

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+100°C

Maximum AC Voltage

240V

Maximum DC Voltage

120V

Maximum Current

600 mA

Series

RSF80

Current Rating

600 mA

Standards Met

NSF Approved, WRAS

COO (Country of Origin):
CN

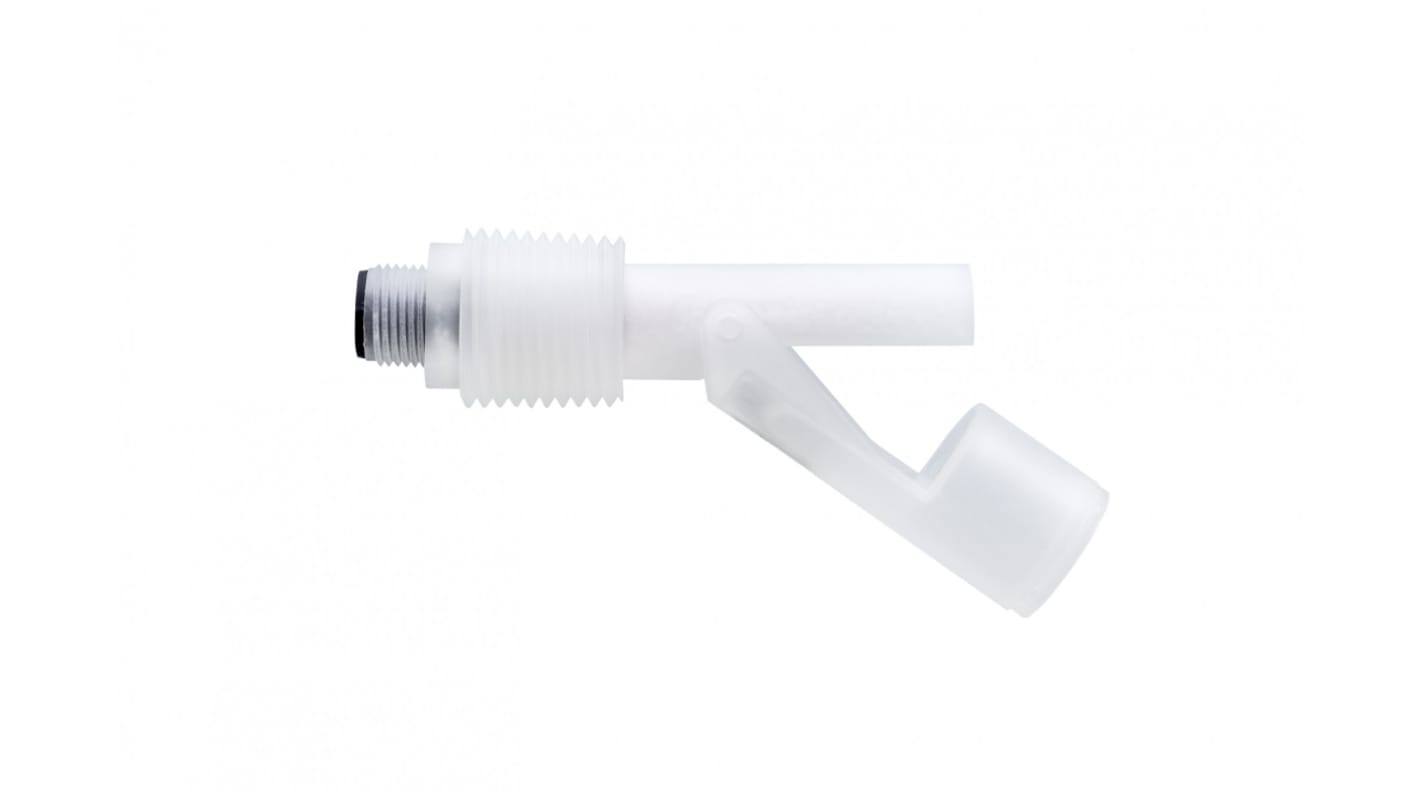

Sensata Cynergy3 Horizontal Float Switch, NO/NC, M12 - RSF80 Series - RSF84YP


When you need to monitor liquid levels closely, opt for this Sensata Cynergy3 float switch. It's on hand to gauge low or high liquid levels when filling up or emptying your tank. The floating component of the device lies on the liquid surface and causes the switch to change when it rises or falls. This sends a signal, alerting you of the change in your liquid level. As the switch mounts to the side of a tank, you can install it in containers with no vertical access.

Features & Benefits


• Wide operating temperature of -20°C to +100°C for use in harsh environments
• Strong polypropylene body material for lasting use
• M12 standard mounting thread for compatibility with common fixtures
• 'Normally open' (NO) or 'normally closed' (NC) switch output configuration options for versatility

Where can I use this switch?


This type of float switch is commonly used in water pumps. It's an easy way to control the level of groundwater, wastewater or sewage, preventing hazardous overspills. You can also use it for fluid transfer pumps at waterworks and as a high-water alarm to protect liquids in your systems from reaching dangerous levels.
