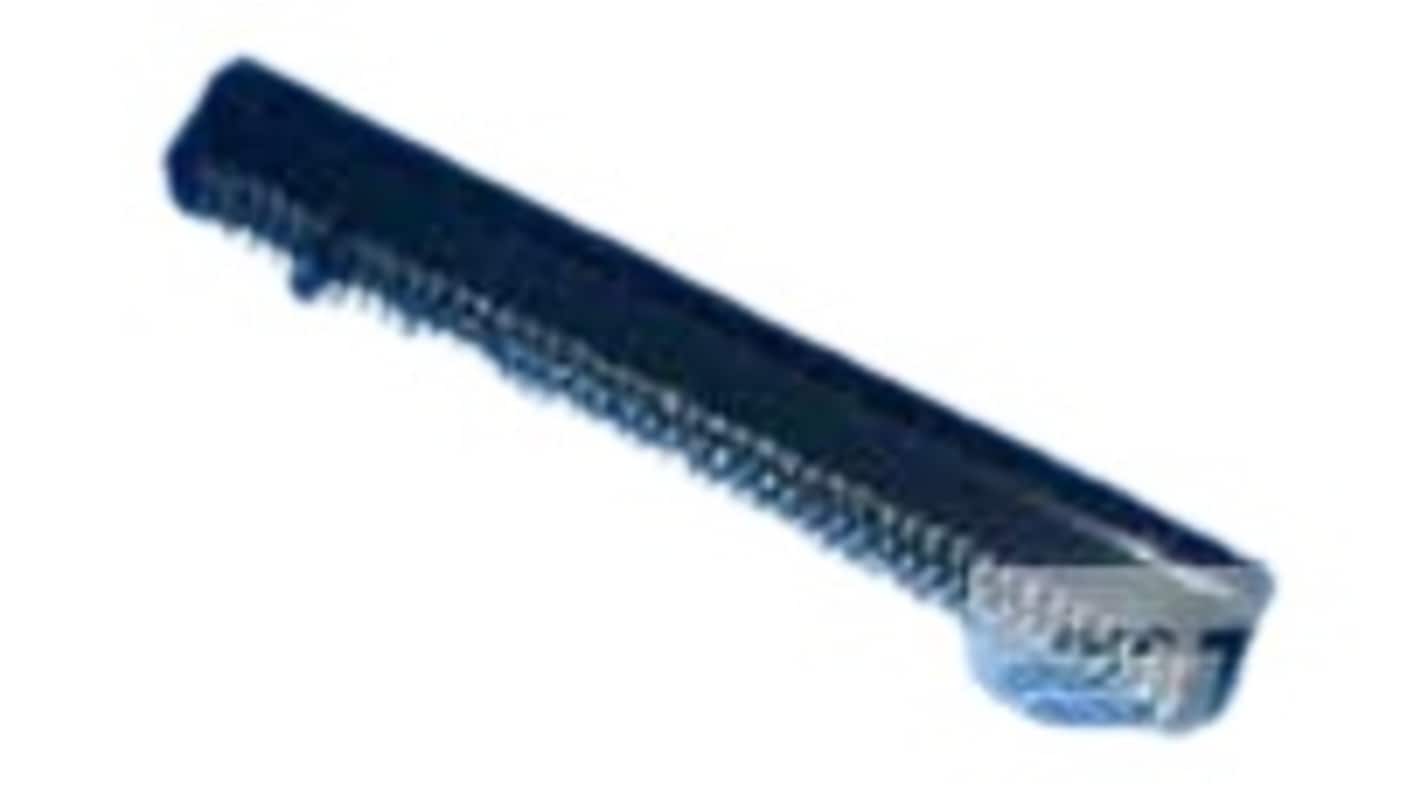

TE Connectivity 4-1734 Series Straight Edge Connector, Board, 164-Contacts, 1 mm Pitch, Solder

View all Edge Connectors

Subtotal (1 tray of 40 units)*

£141.51

(exc. VAT)

£169.81

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£141.51£3.538

*price indicative

RS Stock No.:
509-990
Distrelec Article No.:
304-49-932
Mfr. Part No.:
4-1734774-0
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Orientation

Straight

Product Type

Edge Connector

Current

1.1A

Number of Contacts

164

Pitch

1mm

Mount Type

Board

Contact Plating

Gold

Contact Material

Phosphor Bronze

Minimum Operating Temperature

-40°C

Termination Type

Solder

Card Thickness

1.6mm

Maximum Operating Temperature

85°C

Voltage

50V

Housing Material

Polyamide 9T Fibreglass

Standards/Approvals

China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU, 2016, EU ELV Directive 2000/53/EC

Series

4-1734

COO (Country of Origin):
CN
The TE Connectivity Cable-to-board connector is designed to elevate your connection configurations with advanced reliability and performance. This specific model features 164 positions with a 1 mm centreline, ensuring optimal data transmission for PCI and PCI Express applications. Constructed with a robust black housing, it boasts a compact height of 10 mm and width of 8.8 mm, making it an excellent choice for space-constrained environments. The connector is engineered to withstand operating temperatures of -40 to 85 °C, supporting durable performance across various industrial settings. With its through-hole solder termination method, it guarantees secure connections to printed circuit boards, positioning itself as an ideal solution for professional engineers and designers seeking excellence in their projects.

Designed for seamless integration into intricate electronic systems

Vertical orientation allows for efficient layout in compact spaces

Gold plating on contact mating area enhances conductivity and longevity

Matte finish on plating reduces glare and visibility of solder joints

PCB mount retention features bolster stability and reliability

Wave solder capable, accommodating high-performance soldering processes

Compliance with ROHS directives for environmentally responsible manufacturing

Recommended PCB thickness caters to versatile circuit board design
