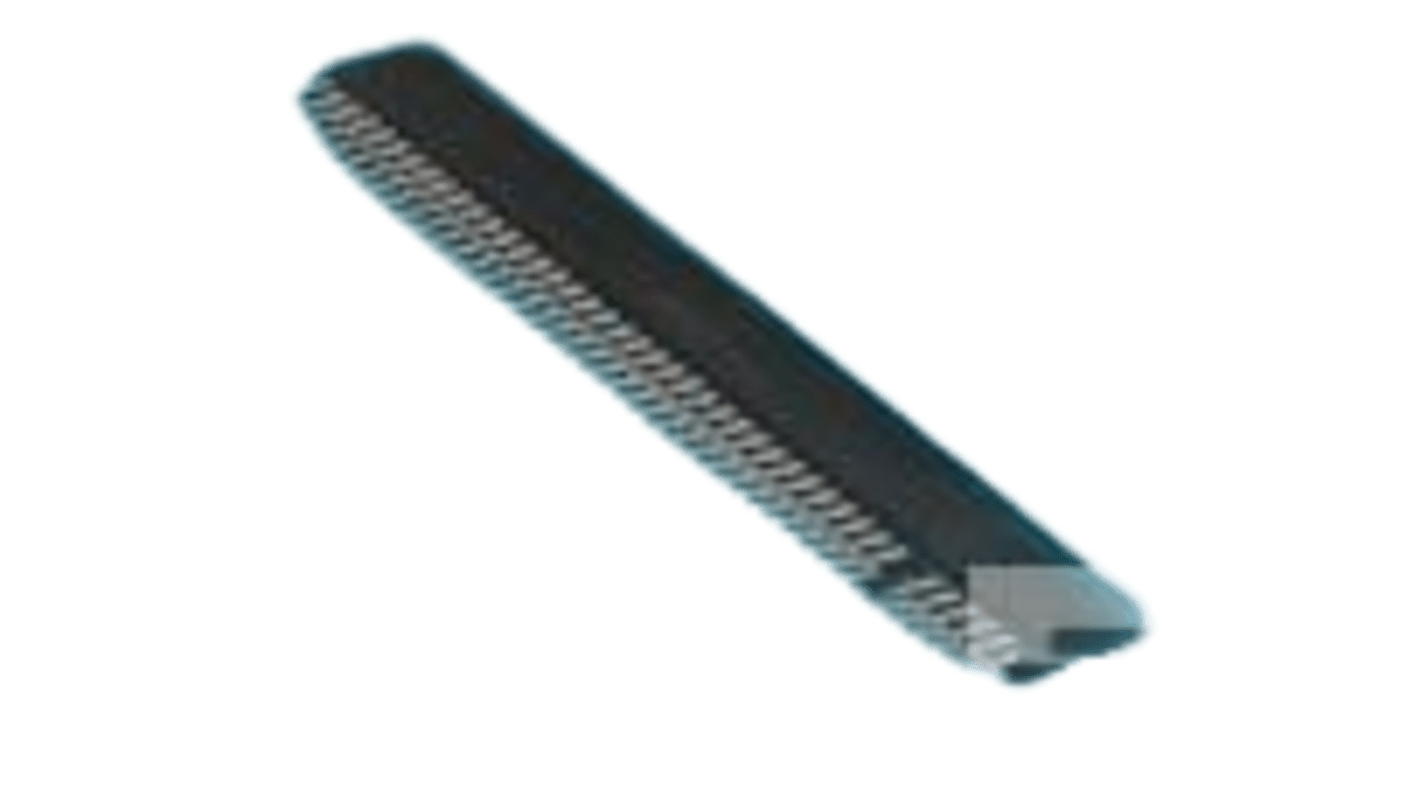

TE Connectivity 1-530844-8 Series Vertical Edge Connector Female, Board, 30-Contacts, 3.18 mm Pitch, 2 Row, Solder
- RS Stock No.:
- 475-302
- Distrelec Article No.:
- 304-53-508
- Mfr. Part No.:
- 1-530844-8
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 475-302
- Distrelec Article No.:
- 304-53-508
- Mfr. Part No.:
- 1-530844-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Edge Connector | |
| Orientation | Vertical | |
| Current | 3A | |
| Number of Contacts | 30 | |
| Number of Rows | 2 | |
| Connector Gender | Female | |
| Pitch | 3.18mm | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Termination Type | Solder | |
| Voltage | 400V | |
| Contact Gender | Female | |
| Standards/Approvals | UL 94 V-0 | |
| Housing Material | Glass Filled Polyester | |
| Series | 1-530844-8 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Edge Connector | ||
Orientation Vertical | ||
Current 3A | ||
Number of Contacts 30 | ||
Number of Rows 2 | ||
Connector Gender Female | ||
Pitch 3.18mm | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Termination Type Solder | ||
Voltage 400V | ||
Contact Gender Female | ||
Standards/Approvals UL 94 V-0 | ||
Housing Material Glass Filled Polyester | ||
Series 1-530844-8 | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity connector is designed for demanding board-to-board applications, providing a reliable solution for complex electronic systems. With a robust construction and functional design, it features a receptacle connector system that ensures superior connectivity between components. Its compact, glass-filled polyester housing not only provides exceptional durability but also supports easy integration into various PCB layouts. Tailored for applications requiring a 30-position configuration, it stands out in both power applications and signal integrity, making it suitable for diverse industries that demand precision and reliability.
Connector housing is made from glass-filled polyester for enhanced durability
The design supports vertical PCB mount orientation for effective space utilisation
Compatibility with through-hole solder termination simplifies the assembly process
Contains a dual-position structure, providing flexibility in design configurations
Nickel underplating coupled with gold mating area plating enhances electrical performance
Features a card slot depth that accommodates standard industry requirements
Developed with a flammability rating that adheres to UL standards for safety compliance
