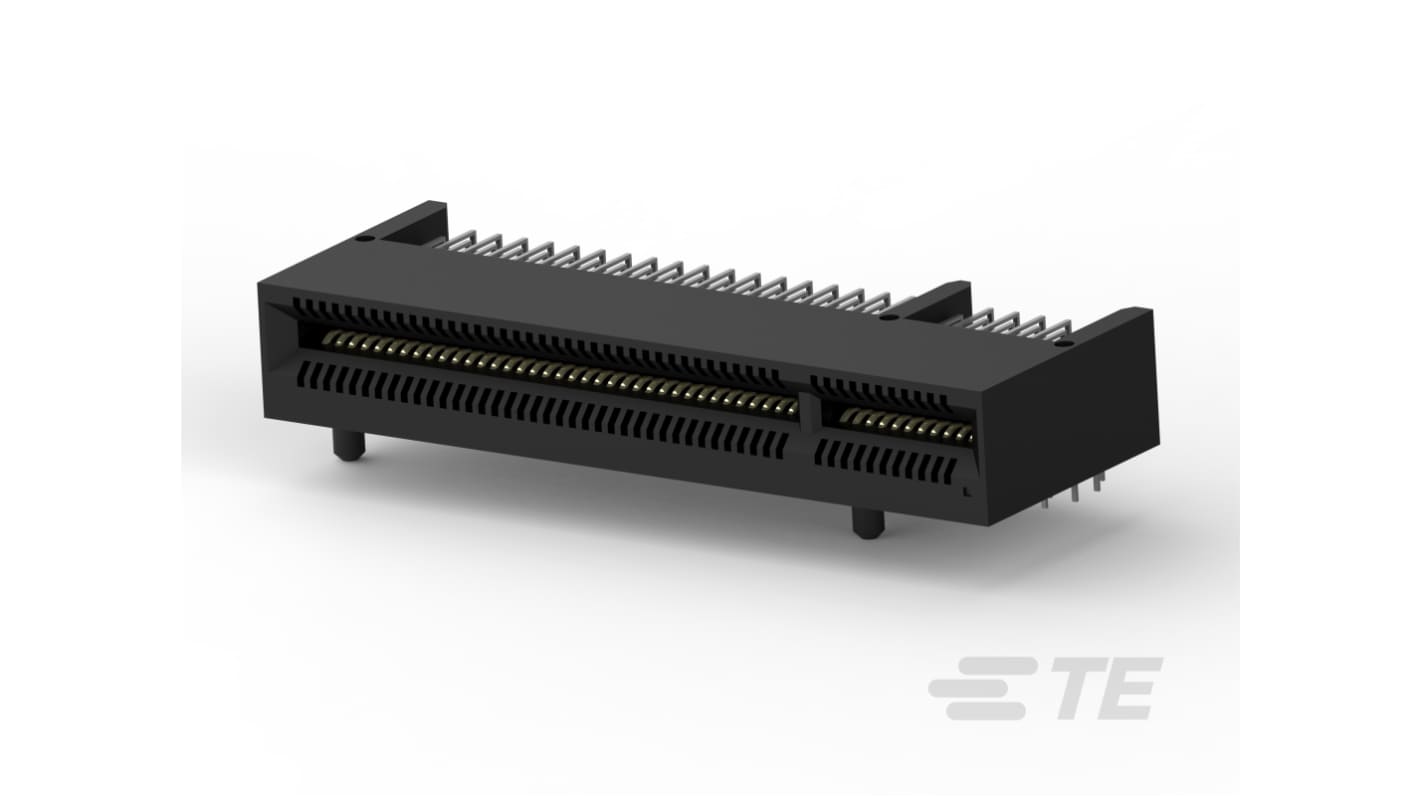

TE Connectivity CROWN EDGE Series Right Angled PIN Edge Connector, Board Mount, 98-Contacts, 1mm Pitch, Solder, Through
- RS Stock No.:
- 474-972
- Mfr. Part No.:
- 1761465-3
- Brand:
- TE Connectivity
Subtotal (1 tray of 5 units)*
£142.95
(exc. VAT)
£171.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £142.95 | £28.59 |
*price indicative
- RS Stock No.:
- 474-972
- Mfr. Part No.:
- 1761465-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Body Orientation | Right Angled | |
Gender | PIN | |
Number of Contacts | 98 | |
Pitch | 1mm | |
Mounting Type | Board Mount | |
Termination Method | Solder, Through Hole | |
Series | CROWN EDGE | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Body Orientation Right Angled | ||
Gender PIN | ||
Number of Contacts 98 | ||
Pitch 1mm | ||
Mounting Type Board Mount | ||
Termination Method Solder, Through Hole | ||
Series CROWN EDGE | ||
- COO (Country of Origin):
- CN
The TE Connectivity board-to-board connector is designed to bring high-performance connectivity to PCI and PCI Express applications. With a precise 1 mm centreline pitch and a robust right-angle orientation, it ensures a reliable and space-efficient arrangement for your electronic assemblies. Constructed from high-temperature nylon, this connector allows for effective thermal management, making it suitable for various demanding applications. The combination of nickel underplating and gold plating on contacts enhances durability, promoting longevity and outstanding signal integrity. Built for seamless integration, this connector can accommodate a PCB thickness of up to 1.57 mm and supports operating voltages of up to 50 VAC, making it suitable for most standard electronic configurations.
Offers a compact design that optimises space in tight layouts
Features two PCB mount retention features for secure attachment
Constructed to withstand operating temperatures ranging from -40 to 85 °C
Facilitates wave solder processing, enhancing assembly efficiency
Certified compliant with EU RoHS and ELV directives for peace of mind
Compatible with a variety of related products, expanding usability
Features two PCB mount retention features for secure attachment
Constructed to withstand operating temperatures ranging from -40 to 85 °C
Facilitates wave solder processing, enhancing assembly efficiency
Certified compliant with EU RoHS and ELV directives for peace of mind
Compatible with a variety of related products, expanding usability
