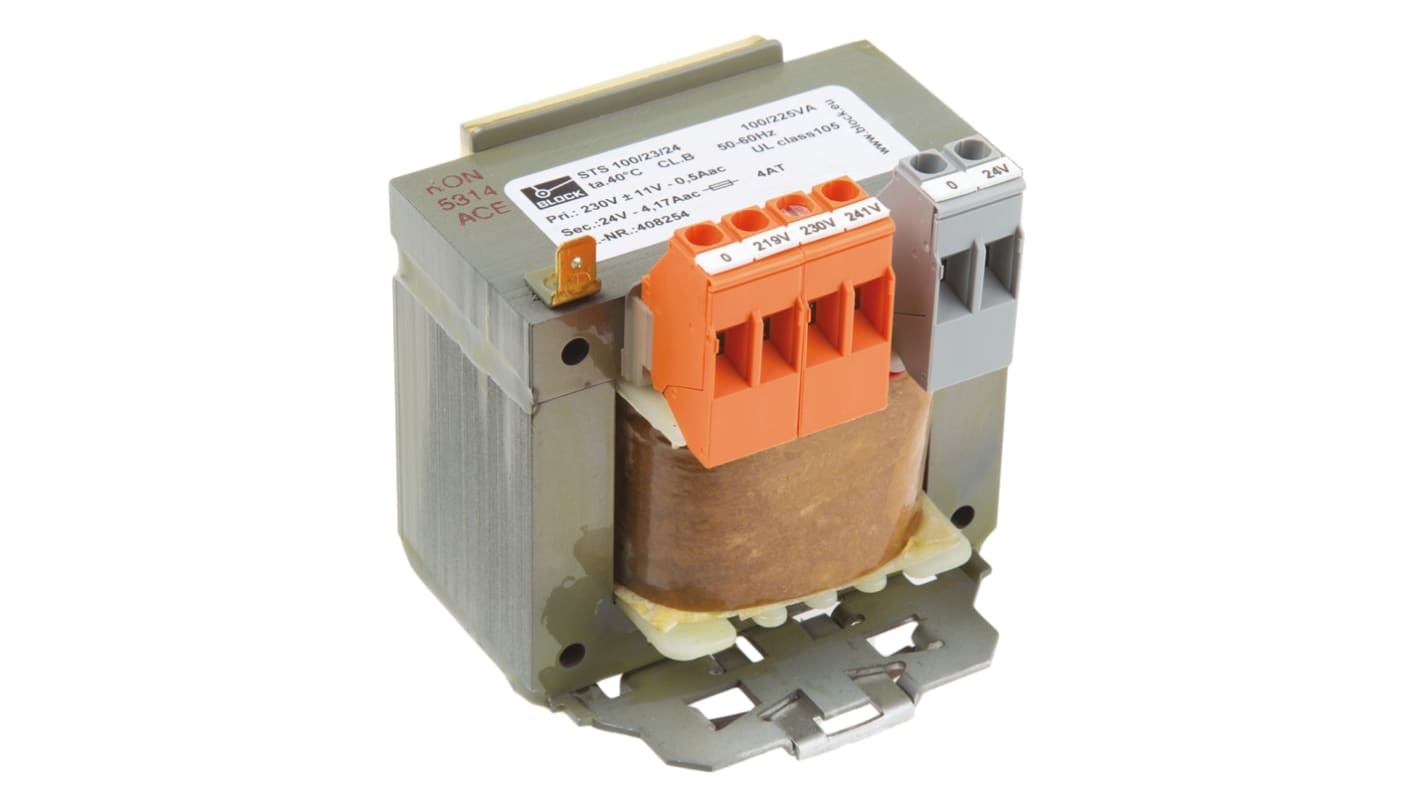

Block 100VA DIN Rail Transformer, 218V ac, 230V ac, 242V ac Primary, 24V ac Secondary
- RS Stock No.:
- 158-7378
- Mfr. Part No.:
- STS100/23/24
- Brand:
- Block
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 158-7378
- Mfr. Part No.:
- STS100/23/24
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Block | |
Primary Voltage Rating | 218V ac, 230V ac, 242V ac | |
Secondary Voltage Rating | 24V ac | |
Power Rating | 100VA | |
Mounting Type | DIN Rail | |
Number of Outputs | 1 | |
Length | 84mm | |
Width | 81mm | |
Depth | 95mm | |
Dimensions | 84 x 81 x 95mm | |
Maximum Temperature | +40°C | |
Weight | 2.2kg | |
Select all | ||
---|---|---|
Brand Block | ||
Primary Voltage Rating 218V ac, 230V ac, 242V ac | ||
Secondary Voltage Rating 24V ac | ||
Power Rating 100VA | ||
Mounting Type DIN Rail | ||
Number of Outputs 1 | ||
Length 84mm | ||
Width 81mm | ||
Depth 95mm | ||
Dimensions 84 x 81 x 95mm | ||
Maximum Temperature +40°C | ||
Weight 2.2kg | ||
- COO (Country of Origin):
- DE
Control Transformers, 230 V AC, STS Series
This series of control transformers stands out thanks to the following special features:
The control transformers are designed for a low voltage drop between idling and load mode. This means they fulfil current and future national and international regulations regarding the supply of equipment, components and appliances. Manufactured in accordance with VDE 0550, IEC 989 with VDE, UL and SEV test marks.
Low voltage drop
High performance during short-term operation
International standard voltage 230 V/400 V in accordance with DIN IEC 38
Primary-side ±5% taps to adjust the voltage
Can be used worldwide as it fulfils national and international regulations
High power output per volume thanks to compact design
Standard humidity protection by means of waterproofing
Contact-protected connector points for screw connectors or plug connectors
Quick fastening, suitable for 35 mm rail terminal in accordance with DIN EN 50022
High performance during short-term operation
International standard voltage 230 V/400 V in accordance with DIN IEC 38
Primary-side ±5% taps to adjust the voltage
Can be used worldwide as it fulfils national and international regulations
High power output per volume thanks to compact design
Standard humidity protection by means of waterproofing
Contact-protected connector points for screw connectors or plug connectors
Quick fastening, suitable for 35 mm rail terminal in accordance with DIN EN 50022
