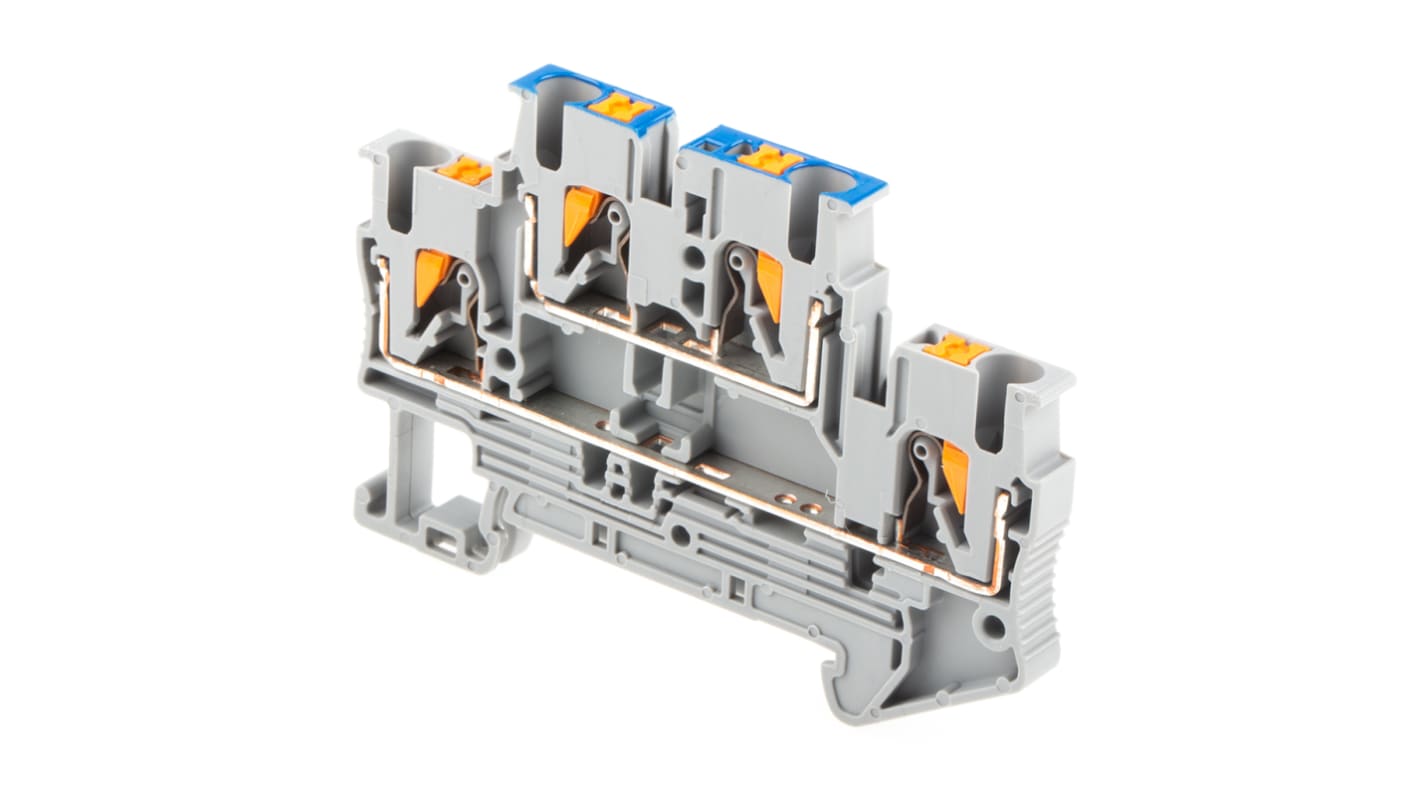

Phoenix Contact PTTB 2.5-L/N Series Grey Double Level Terminal Block, 0.14 → 4mm², Double-Level, Push In
- RS Stock No.:
- 687-9650
- Mfr. Part No.:
- 3210994
- Brand:
- Phoenix Contact
160 In stock - FREE next working day delivery available
700 available from Europe for delivery within 2 working day(s).
Added
Price Each (In a Pack of 10)
£2.416
(exc. VAT)
£2.899
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 50 | £2.416 | £24.16 |
60 - 110 | £2.349 | £23.49 |
120 + | £2.285 | £22.85 |
*price indicative |
- RS Stock No.:
- 687-9650
- Mfr. Part No.:
- 3210994
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks
The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
PT Series - Features and Benefits
• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Double |
American Wire Gauge | 26 → 12AWG |
Series | PTTB 2.5-L/N |
Termination Method | Push In |
Cable CSA | 0.14 → 4mm² |
Current Rating | 22A |
Voltage Rating | 500 V |
Hazardous Area Certification | ATEX |
Model Number | PTTB 2,5-L/N |
