Phoenix Contact 3210567 PTTB 2.5 Series Grey, 0.14 → 4mm², Double-Level, Push In Termination, ATEX
- RS Stock No.:
- 687-9638
- Mfr. Part No.:
- 3210567
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£20.96
(exc. VAT)
£25.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,490 unit(s) ready to ship
- Plus 910 unit(s) ready to ship from another location
- Plus 2,500 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £2.096 | £20.96 |
*price indicative
- RS Stock No.:
- 687-9638
- Mfr. Part No.:
- 3210567
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Double | |
Voltage Rating | 500 V | |
Series | PTTB 2.5 | |
Termination Method | Push In | |
Cable CSA | 0.14 → 4mm² | |
Current Rating | 22A | |
Minimum Operating Temperature | -60 °C | |
Maximum Operating Temperature | +110°C | |
Hazardous Area Certification | ATEX | |
Standards Met | ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL | |
Model Number | PTTB 2.5 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Double | ||
Voltage Rating 500 V | ||
Series PTTB 2.5 | ||
Termination Method Push In | ||
Cable CSA 0.14 → 4mm² | ||
Current Rating 22A | ||
Minimum Operating Temperature -60 °C | ||
Maximum Operating Temperature +110°C | ||
Hazardous Area Certification ATEX | ||
Standards Met ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL | ||
Model Number PTTB 2.5 | ||
- COO (Country of Origin):
- PL

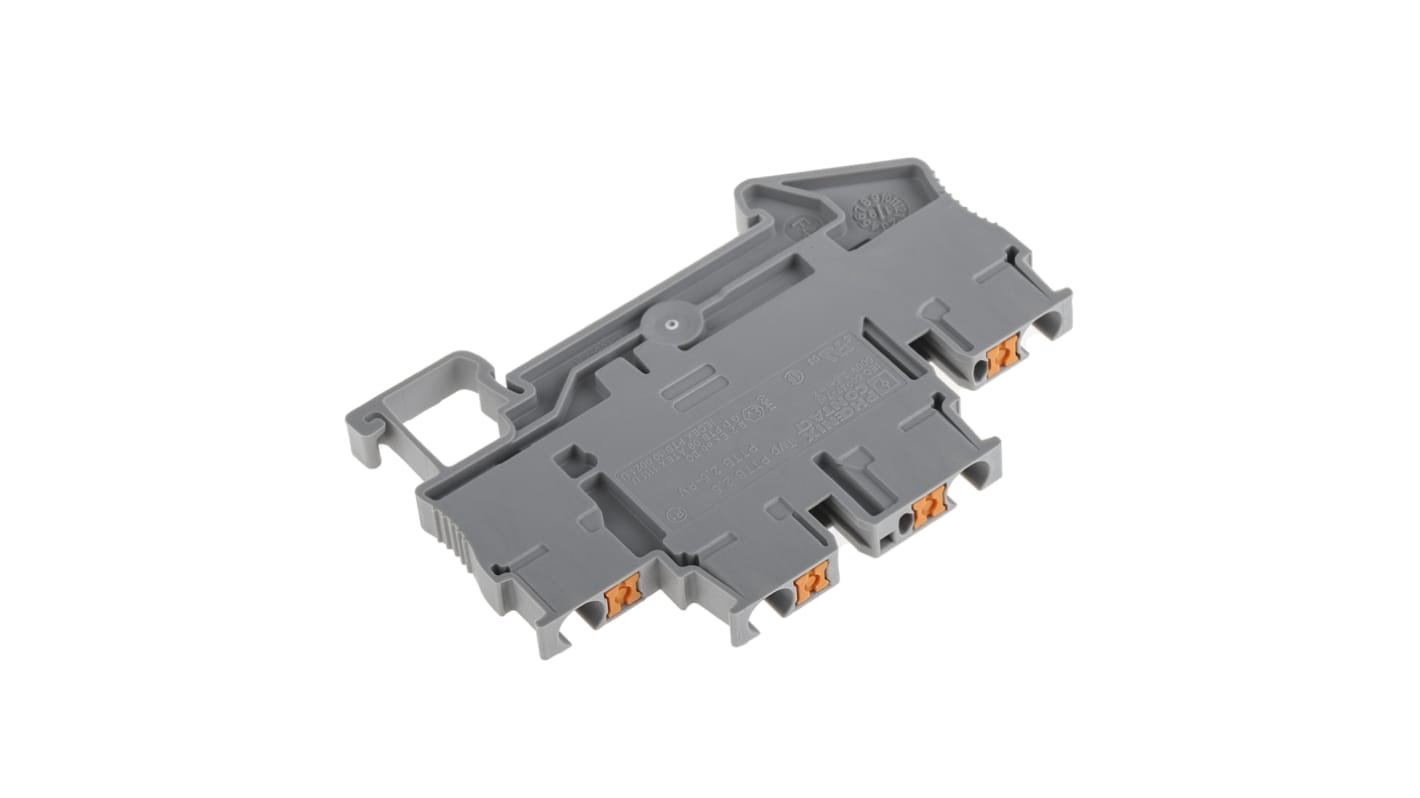

Phoenix Contact Double-Level Terminal Block, Push-In Connection Method, 22A Current Rating - PTTB 2,5 - 3210567
Snap extra connectivity into your setup with this double-level terminal block from Phoenix Contact. It has terminals spread across two levels, which cuts out wiring clutter to keep your cabinet tidy. Fitting the device into a cabinet is done in no time, thanks to its speedy rail mounting method. There's no need to break out the toolbox during installation, as the strip's push-in ports secure conductors in place without special tools.
Thanks to the block's open side panel, getting hands-on with your system's connections is no trouble. It accepts wires sized between 0.14 and 4mm², meaning it's widely compatible with standard conductors. Resistance to hazardous loads up to 6kV ensures sudden voltage surges won't trip it up.
Thanks to dimensions of 68 (L) x 5.2 (W) x 45.8mm (H), this block easily slides into a busy control cabinet. Hard-wearing PA housing is on hand to shrug off the knocks and scrapes you'd expect in heavy-duty settings.
Thanks to the block's open side panel, getting hands-on with your system's connections is no trouble. It accepts wires sized between 0.14 and 4mm², meaning it's widely compatible with standard conductors. Resistance to hazardous loads up to 6kV ensures sudden voltage surges won't trip it up.
Thanks to dimensions of 68 (L) x 5.2 (W) x 45.8mm (H), this block easily slides into a busy control cabinet. Hard-wearing PA housing is on hand to shrug off the knocks and scrapes you'd expect in heavy-duty settings.
Features & Benefits
• Maximum power loss of just 0.77W ensures it's energy-efficient
• Supplied in packs of 10, so you'll have plenty in stock
• Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds
• Supplied in packs of 10, so you'll have plenty in stock
• Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
