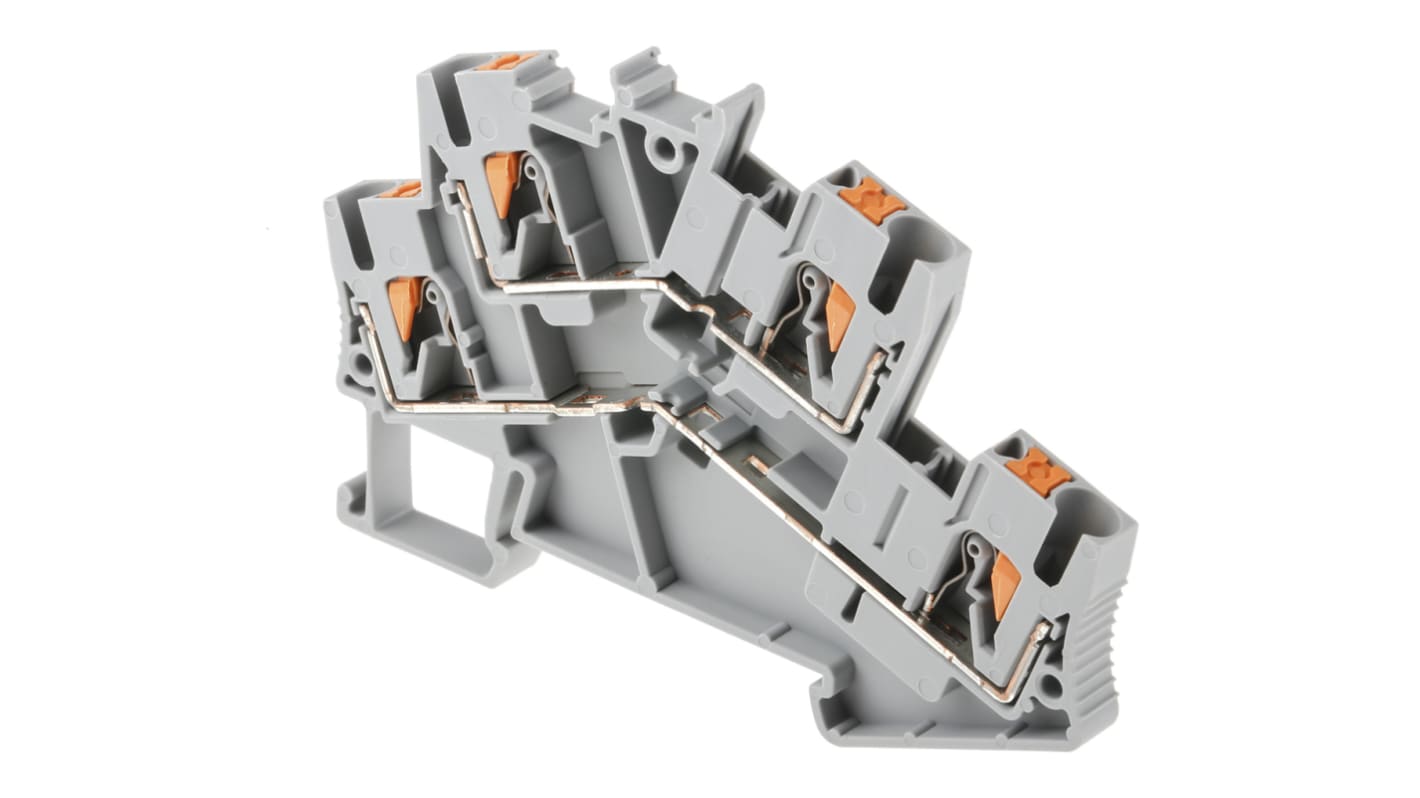

Phoenix Contact PTTBS 2.5 Series Grey Double Level Terminal Block, 0.14 → 4mm², Double-Level, Push In
- RS Stock No.:
- 687-9568
- Mfr. Part No.:
- 3209604
- Brand:
- Phoenix Contact
Price Each (In a Pack of 10)
£2.166
(exc. VAT)
£2.599
(inc. VAT)
250 In stock - FREE next working day delivery available
1660 available from Europe for delivery within 2 working day(s).
Units | Per unit | Per Pack* |
---|---|---|
10 - 50 | £2.166 | £21.66 |
60 - 110 | £2.056 | £20.56 |
120 + | £1.971 | £19.71 |
*price indicative
- RS Stock No.:
- 687-9568
- Mfr. Part No.:
- 3209604
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks
The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
PT Series - Features and Benefits
• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
Phoenix Contact Double-Level Terminal Block, 500V, 22A - PTTBS 2.5 - 3209604
Neatly connect and secure your wires with this terminal block from Phoenix Contact. It's a dual-level block that makes
multiple wire connections on a single block to save space in your system. Thanks to an Underwriters' Laboratory (UL) fire safety rating of UL94V-0, you can be sure that in the event of a fire, burning will stop after 10 seconds.
This component has a broad operating temperature range of -60°C to +105°C for safe use in demanding conditions. It has a voltage rating of 500V – which means it's suitable for medium voltage applications – and can accommodate a small to medium wire size range of 26 to 12 American wire gauge (AWG), making it a versatile choice. You'll find units like this one commonly used in railway applications.
multiple wire connections on a single block to save space in your system. Thanks to an Underwriters' Laboratory (UL) fire safety rating of UL94V-0, you can be sure that in the event of a fire, burning will stop after 10 seconds.
This component has a broad operating temperature range of -60°C to +105°C for safe use in demanding conditions. It has a voltage rating of 500V – which means it's suitable for medium voltage applications – and can accommodate a small to medium wire size range of 26 to 12 American wire gauge (AWG), making it a versatile choice. You'll find units like this one commonly used in railway applications.
• Surge voltage of 6kV to withstand voltage spikes
• Push-in connection for quick and easy installation
• ATEX hazardous area certification makes it safe for use in hazardous or explosion prone areas
• Compact dimensions of 5.2 (W) x 55 (H) x 78mm (L) for convenient installation in small spaces
• Push-in connection for quick and easy installation
• ATEX hazardous area certification makes it safe for use in hazardous or explosion prone areas
• Compact dimensions of 5.2 (W) x 55 (H) x 78mm (L) for convenient installation in small spaces
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Double |
Series | PTTBS 2.5 |
American Wire Gauge | 26 → 12AWG |
Termination Method | Push In |
Cable CSA | 0.14 → 4mm² |
Current Rating | 22A |
Voltage Rating | 500 V |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +105°C |
Hazardous Area Certification | ATEX |
Model Number | 5, PTTBS 2 |
