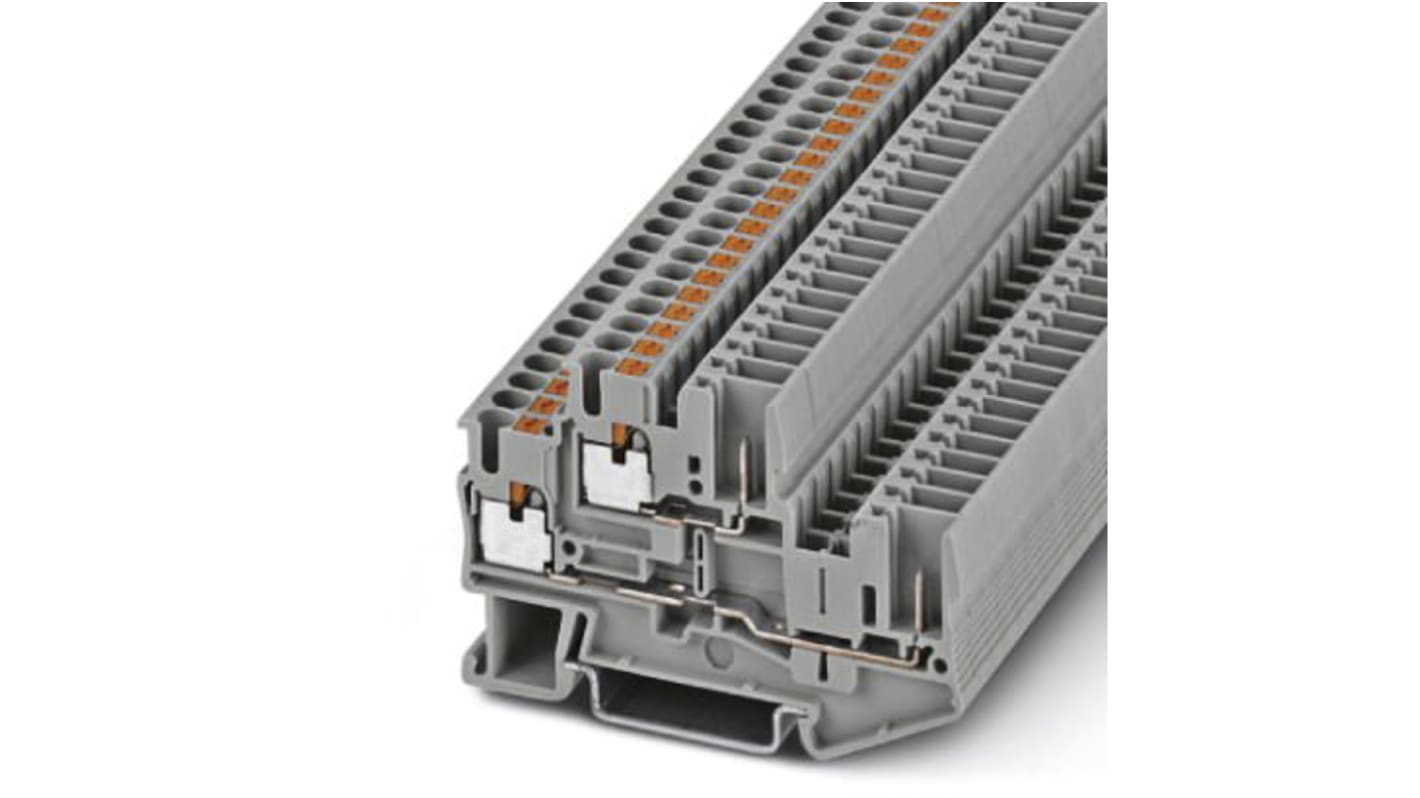

Phoenix Contact 3210871 PTTB 2.5/2P Series Double Level Terminal Block Grey, 0.14mm², 4 mm², 2-Level, Push-in
- RS Stock No.:
- 687-9657
- Distrelec Article No.:
- 304-35-917
- Mfr. Part No.:
- 3210871
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£21.19
(exc. VAT)
£25.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 540 unit(s) shipping from 15 June 2026
- Plus 180 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.119 | £21.19 |
*price indicative
- RS Stock No.:
- 687-9657
- Distrelec Article No.:
- 304-35-917
- Mfr. Part No.:
- 3210871
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Double Level Terminal Block | |
| Colour | Grey | |
| Sub Type | Multi-Level | |
| Number of Levels | 2 | |
| Series | PTTB 2.5/2P | |
| Voltage | 500V | |
| Cable CSA | 0.14, 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Terminal Block Current | 22A | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | ABS, LR, IEC 61984, GOST, cUL, CSA, Bureau Veritas, UL, RS, NK | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Double Level Terminal Block | ||
Colour Grey | ||
Sub Type Multi-Level | ||
Number of Levels 2 | ||
Series PTTB 2.5/2P | ||
Voltage 500V | ||
Cable CSA 0.14, 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Terminal Block Current 22A | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification No | ||
Standards/Approvals ABS, LR, IEC 61984, GOST, cUL, CSA, Bureau Veritas, UL, RS, NK | ||
Pluggable Feed-Through Terminal Blocks with Push-In Connection
Pluggable modular terminal blocks with PT Push-In technology for the modular set-up of control cabinets and systems. The COMBI plug connectors with PIT Push-In connection can be used for signal as well as power wiring. Respective ground terminal blocks are available in the same shape as the basic terminal blocks.
With the standardized COMBI plug-in zone, COMBI plug connectors of all connection methods can be used
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
Actuation button can be operated with any kind of screwdriver
Double bridge shaft for an individual power distribution and supply
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
