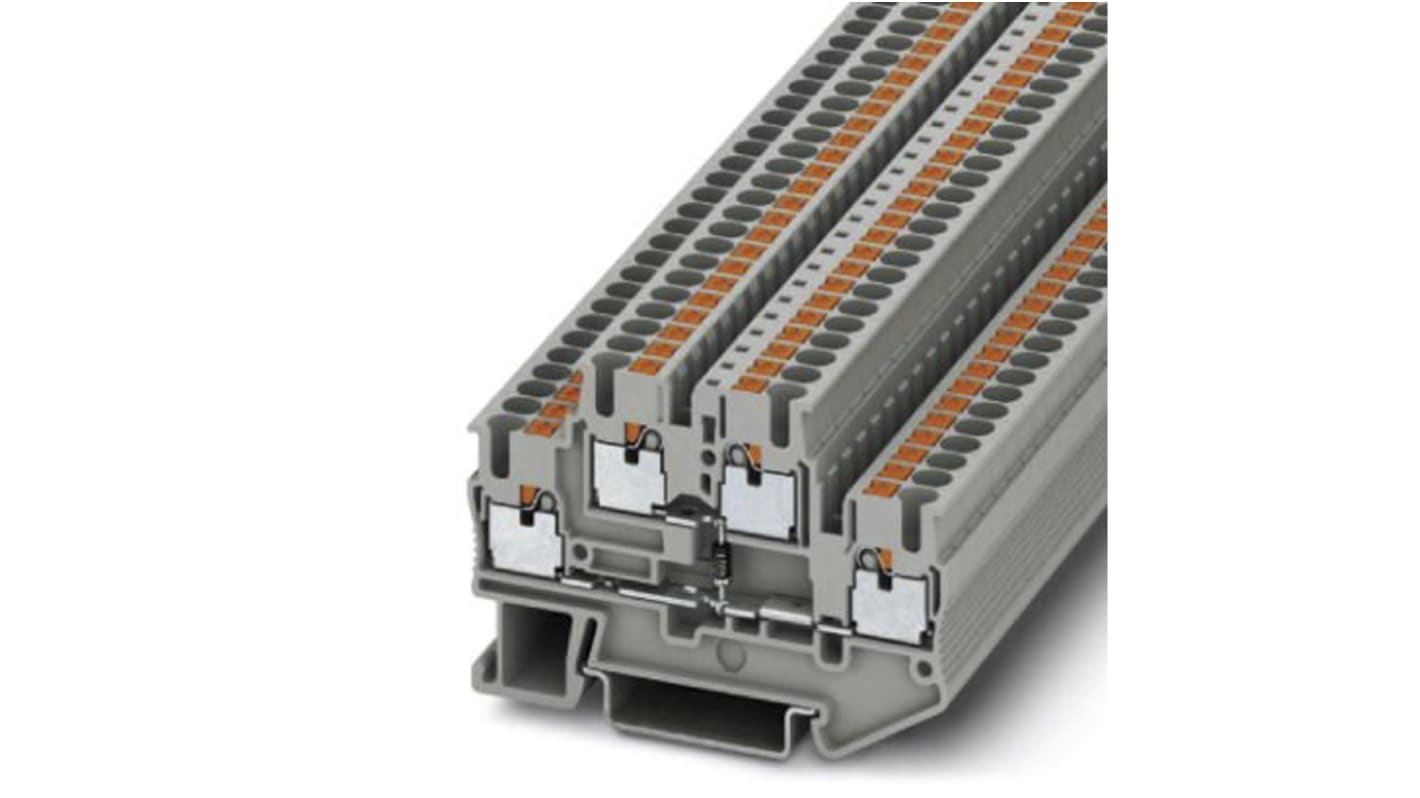

Phoenix Contact 3210923 PTTB 2.5-DIO/O-U Series Grey, 0.14 → 4mm², Double-Level, Push In Termination

Using the diode terminal blocks of the PT push-in connection terminal blocks makes it possible to solve a variety of switching tasks. The diode is integrated either from left to right or vice versa in the terminal housings. Three and four-conductor terminal blocks are also available for multi-conductor connections.

Integrated diodes (1N 4007) and lamps on certain parts
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Configurations include lamp test circuits and fault message circuits

Use this terminal block from Phoenix Contact to make quick and secure connections between wiring and components in your equipment. It's designed to be mounted on a standard DIN rail, making for speedy installation and compatibility with common fittings.
The terminal block's push-in termination method lets you remove and rearrange your circuitry rapidly with no tooling required. This cuts down on maintenance and repair time and makes it easy to adapt or update your electrical system.
As it has a surge voltage rating of 6kV, this device will protect your equipment in case of over-voltage or short circuits, increasing workplace safety. The grey PA (polyamide) housing material offers excellent durability and strength, ensuring reliable performance over a long service life.

• Cable cross-sectional area of 0.14 to 4mm²
• Grey in colour
• Two levels
• Current rating of 20A
• Voltage rating of 500V
• Wire size of 26 to 12AWG (American Wire Gauge)
• Complies with RoHS (Restriction of Hazardous Substances) standards, indicating it contains only trace amounts of any harmful materials
• UL (Underwriter Laboratories) 94-V0 flammability rating means the product will burn for no more than 15 seconds when exposed to a naked flame

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
