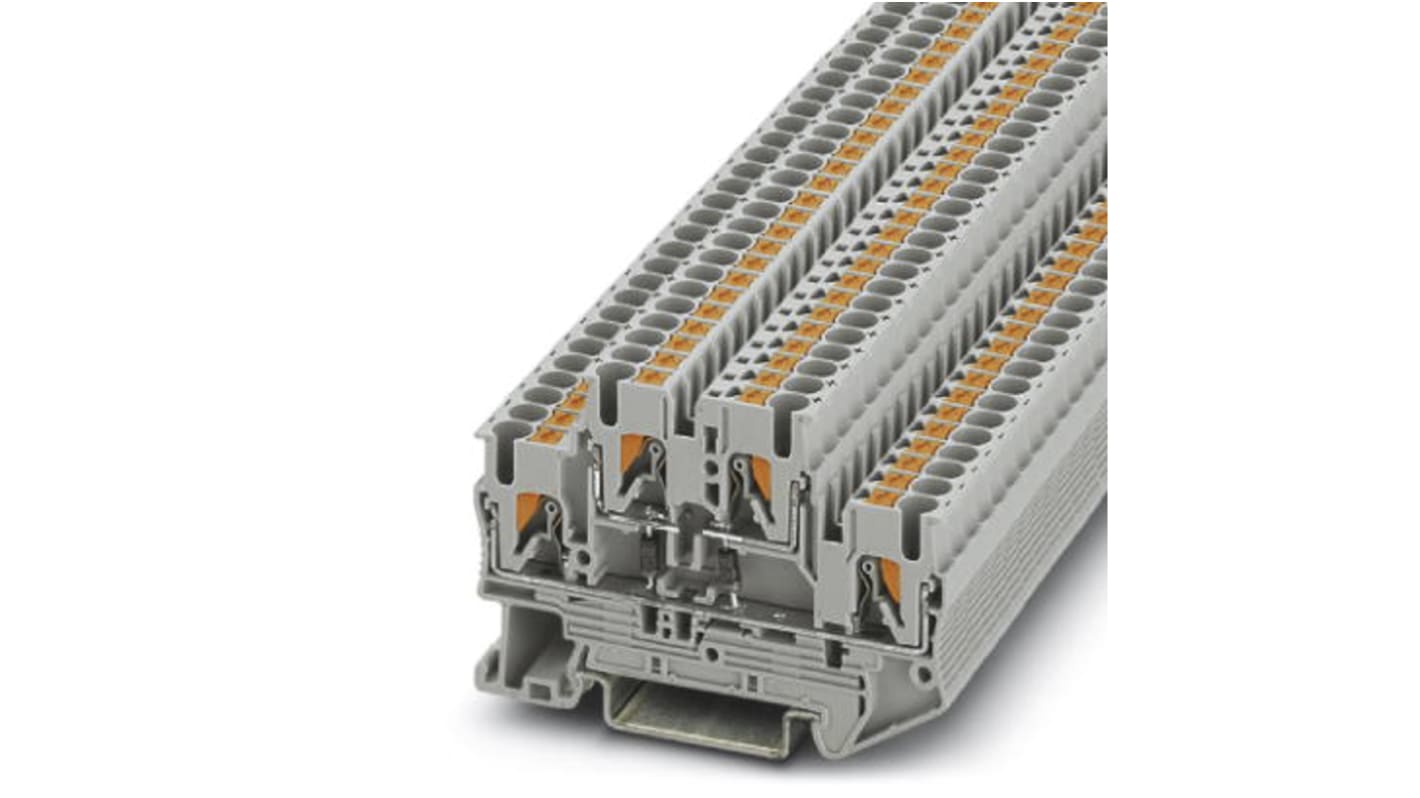

Phoenix Contact 3211443 PTTB 2.5-2DIO/O-UL/O-UR Series Grey, 0.14 → 4mm², Double-Level, Push In Termination
- RS Stock No.:
- 687-9751
- Mfr. Part No.:
- 3211443
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£4.526
(exc. VAT)
£5.431
(inc. VAT)
- RS Stock No.:
- 687-9751
- Mfr. Part No.:
- 3211443
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Double | |
Series | PTTB 2.5-2DIO/O-UL/O-UR | |
American Wire Gauge | 26 → 12AWG | |
Termination Method | Push In | |
Cable CSA | 0.14 → 4mm² | |
Voltage Rating | 500 V | |
Current Rating | 20A | |
Model Number | PTTB 2,5-2DIO/O-UL/O-UR | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Double | ||
Series PTTB 2.5-2DIO/O-UL/O-UR | ||
American Wire Gauge 26 → 12AWG | ||
Termination Method Push In | ||
Cable CSA 0.14 → 4mm² | ||
Voltage Rating 500 V | ||
Current Rating 20A | ||
Model Number PTTB 2,5-2DIO/O-UL/O-UR | ||
Diode and Lamp Terminal Blocks
Using the diode terminal blocks of the PT push-in connection terminal blocks makes it possible to solve a variety of switching tasks. The diode is integrated either from left to right or vice versa in the terminal housings. Three and four-conductor terminal blocks are also available for multi-conductor connections.
Integrated diodes (1N 4007) and lamps on certain parts
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Configurations include lamp test circuits and fault message circuits
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Configurations include lamp test circuits and fault message circuits
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
