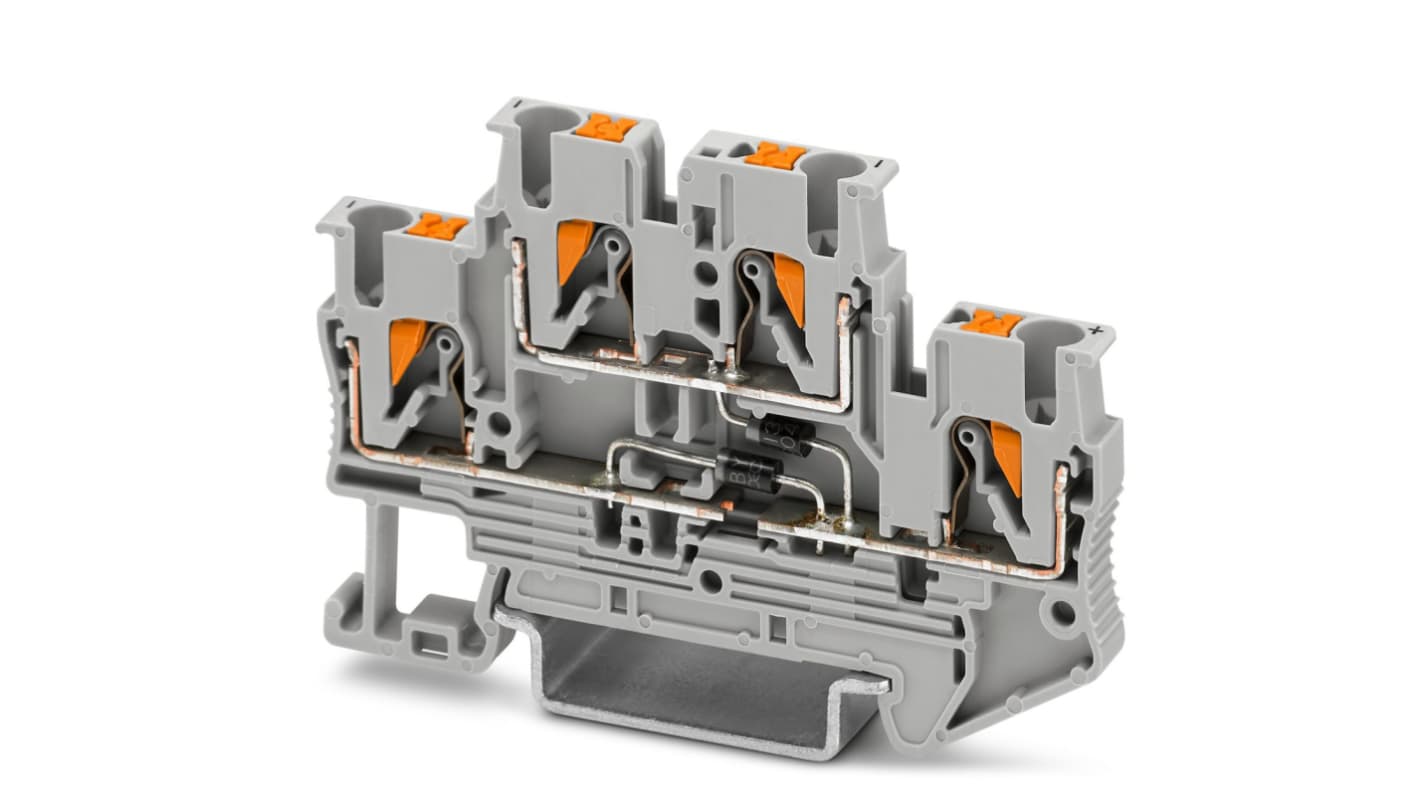

Phoenix Contact 3211433 PTTB 2.5-2DIO/UR-O/UR-UL Series Component Terminal Block Grey, 0.14mm², 4 mm², 2-Level, Push-in
- RS Stock No.:
- 207-3750
- Mfr. Part No.:
- 3211433
- Brand:
- Phoenix Contact
Subtotal (50 units, in packs of 50)*
£363.20
(exc. VAT)
£435.85
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £7.264 | £363.20 |
*price indicative
- RS Stock No.:
- 207-3750
- Mfr. Part No.:
- 3211433
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Component Terminal Block | |
| Colour | Grey | |
| Sub Type | Component | |
| Number of Levels | 2 | |
| Voltage | 500V | |
| Series | PTTB 2.5-2DIO/UR-O/UR-UL | |
| Cable CSA | 0.14mm², 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Push-in | |
| Terminal Block Current | 500mA | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EAC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Component Terminal Block | ||
Colour Grey | ||
Sub Type Component | ||
Number of Levels 2 | ||
Voltage 500V | ||
Series PTTB 2.5-2DIO/UR-O/UR-UL | ||
Cable CSA 0.14mm², 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Minimum Operating Temperature -60°C | ||
Termination Type Push-in | ||
Terminal Block Current 500mA | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EAC | ||
The Phoenix Component terminal block, with integrated 1N4007 diode. The max. current is determined by the diode and Installed Diode 1N 4007.
reverse voltage: 1300 V
maximum continuous current: 0.5 A
nominal voltage: 500 V,
nominal current: 0.5 A
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
